elbaC cable for Ajax wired devices

elbaC cable for Ajax wired devices

Cable engineered for long-distance data and power transmission between Ajax wired devices

elbaC Cable

A French manufacturer specializing in high-quality cables for advanced electrical and communication systems.

elbac.fr

About the product

elbaC cable is specifically designed for Ajax wired devices and Hub Hybrid and is available in write or black color.

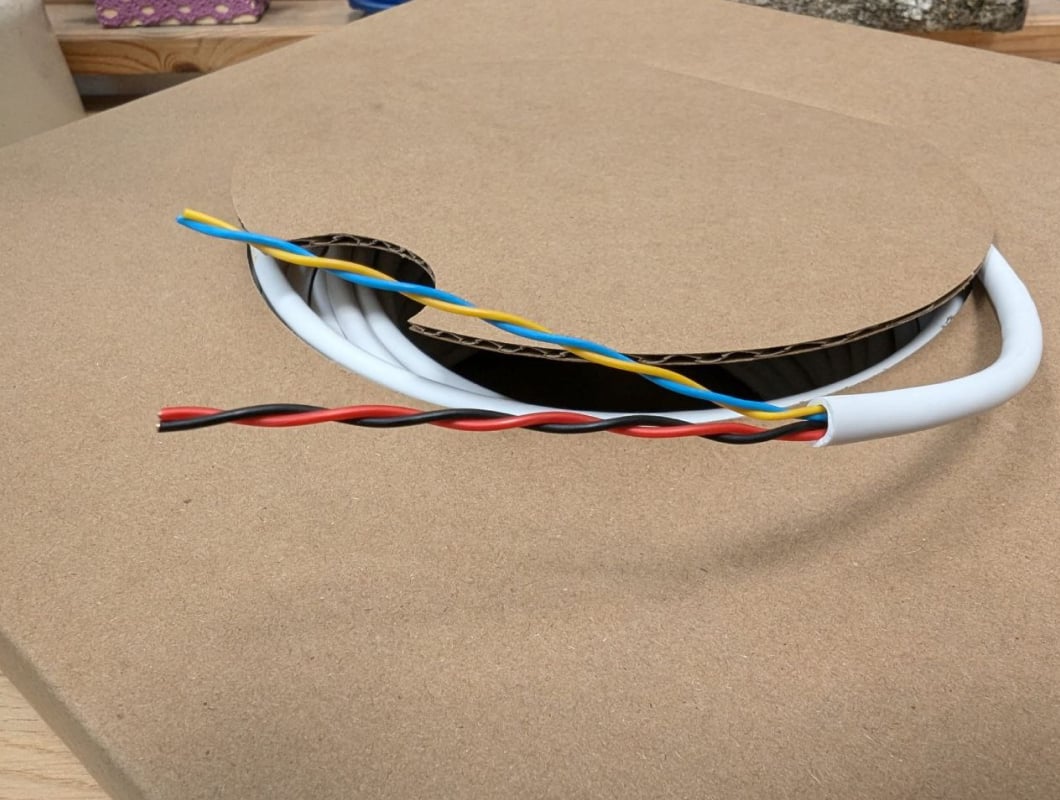

The cable consists of two twisted pairs: a pair of AWG 22 wires to power Fibra devices and a pair of AWG 24 wires to transmit data over the Fibra protocol. One of the main advantages of the new cable is its firm stability over long distances. The cable uses high-quality copper conductors that guarantee durability, excellent conductivity, and efficient performance.

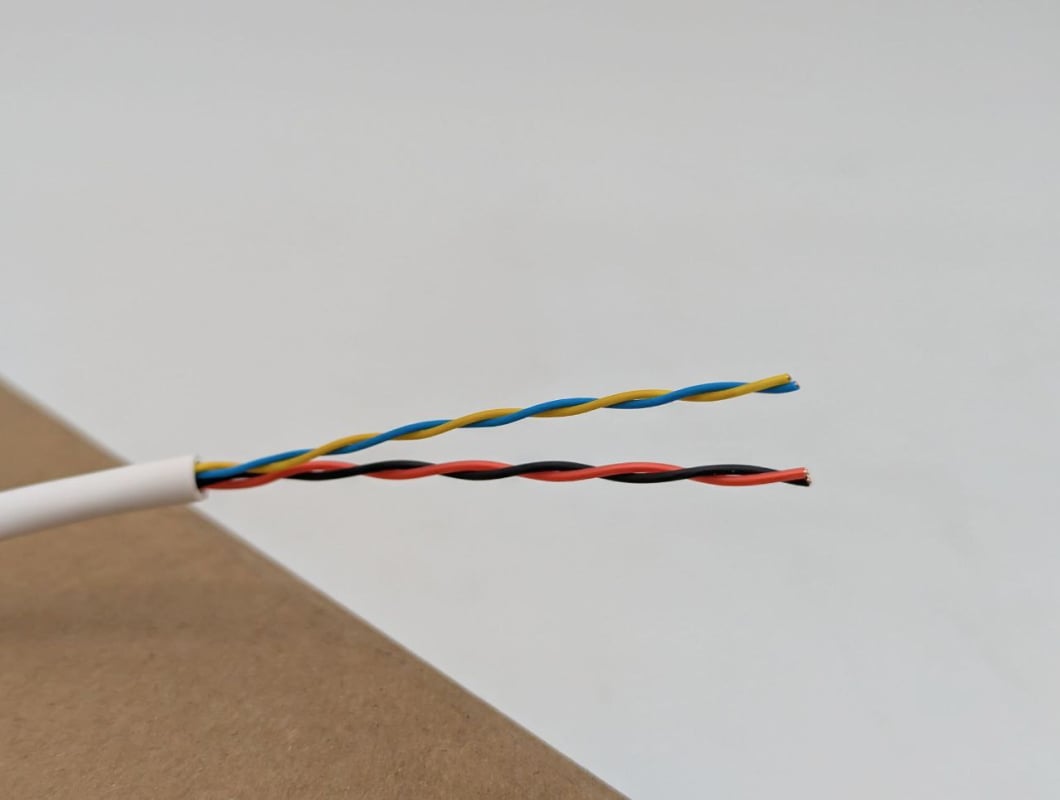

The data pair is optimized for Fibra transmission technology with a precise 100 ohms characteristic impedance. The power pair has a conductor diameter of 0.64 mm and consists of red and black wires and the AWG 24 data pair, with a conductor diameter of 0.51 mm, is made up of blue and yellow wires. With a high twist rate that reduces interference, as well as an optimized conductor design, the cable can maintain reliable signal transmission over distances up to 3,000 m. The matching Fibra color coding and solid core of wires simplifie installation and maintenance while meter-indicated sheath helps to monitor the remaining cable length on the reel.

The cable is designed to meet various installation requirements. It comes with a white high resistant LSZH sheath for indoor use or a reinforced black XL-LSZH sheath for outdoor installation in areas prone to moisture and water exposure.

Gallery

elbac
elbac
elbac
