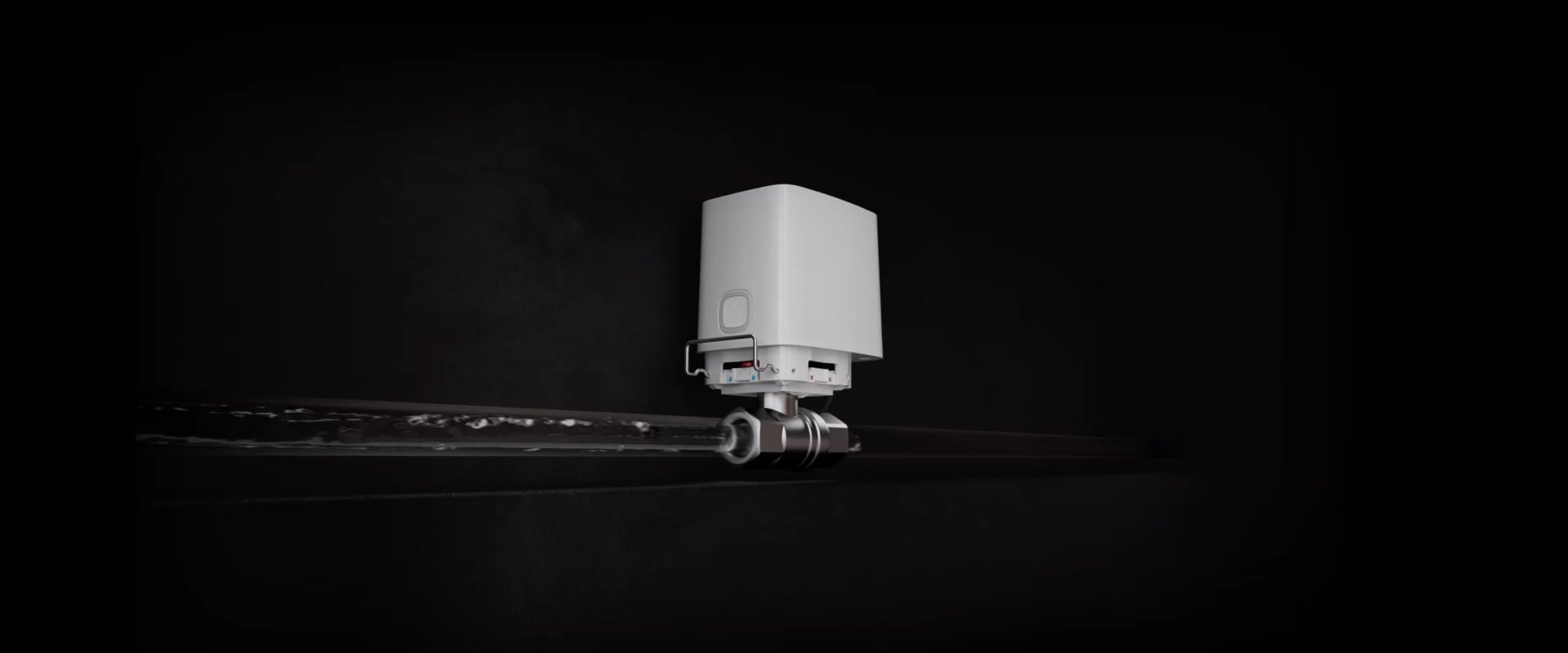

Ajax WaterStop Jeweller

Ajax WaterStop Jeweller

Remotely controlled water shutoff valve

Ajax WaterStop Jeweller won the Red Dot Design Award
red-dot

Not a drop of problems

Ajax WaterStop automatically shuts off the water in 7 seconds at a facility with an Ajax security system if LeaksProtect or a third-party water leak detector is triggered. The device combines a high-quality valve and a powerful electric actuator. You can control Ajax WaterStop and check its status from anywhere in the world — all you need is an Internet connection and an Ajax app. You can also create a scenario to shut the water off at a specific time or when arming the system.

Ajax WaterStop features in a minute

Discover Ajax WaterStop

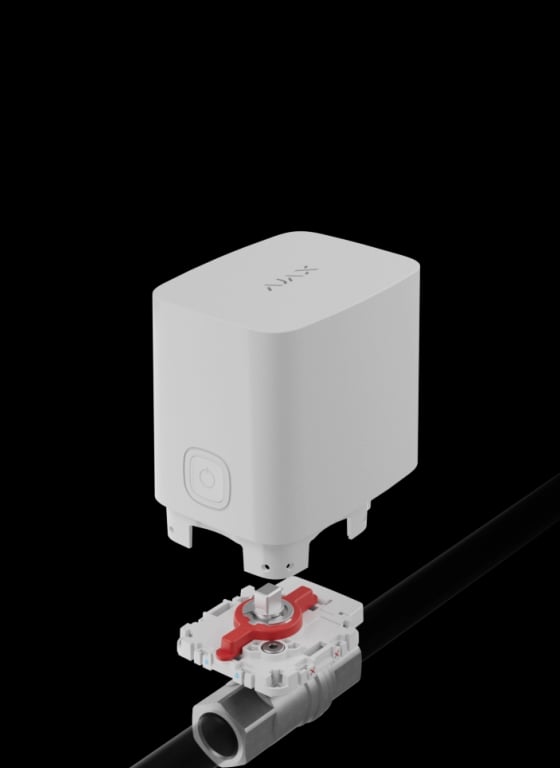

4 mounting positions

4 mounting positions

Water shut-off in 7 seconds

RuB valve included

ISO 5211 standard

1" (DN 25)

1" (DN 25)

¾" (DN 20)

¾" (DN 20)

½" (DN 15)

½" (DN 15)

Up to 3,609 ft

range of communication with an Ajax hub

Up to 3 years

of battery life

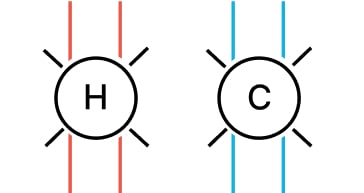

Compatible with cold and hot water pipes

Compatible with cold and hot water pipes

Jeweller radio communication

Jeweller radio communication

Power adjustment

Mounting the electric actuator

without additional tools

Automatic stuck prevention

with scenarios

Automation scenarios

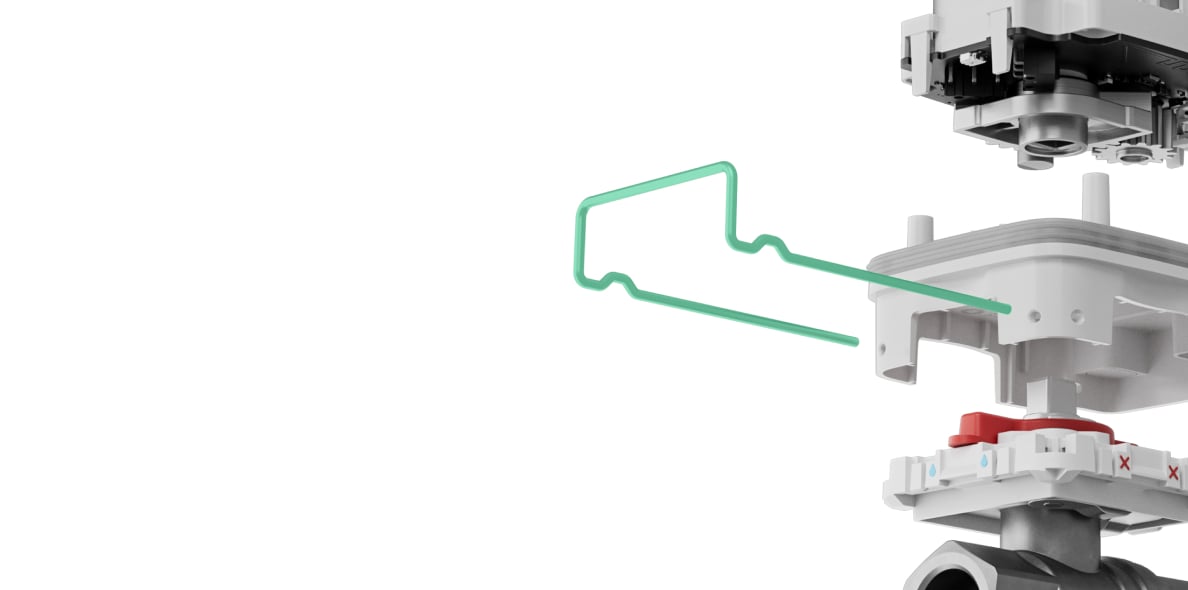

Electric actuator protection against unauthorized dismantling

Electric actuator protection against unauthorized dismantling

Button and lever

Button and lever

to shut off the water manually

Informative in-app notifications

Ajax logo
10:00

Ajax

Home: Leakage detected, LeaksProtect in the Kitchen
Ajax logo
10:00

Ajax

Home: Water shut-off, Ajax WaterStop in the Kitchen

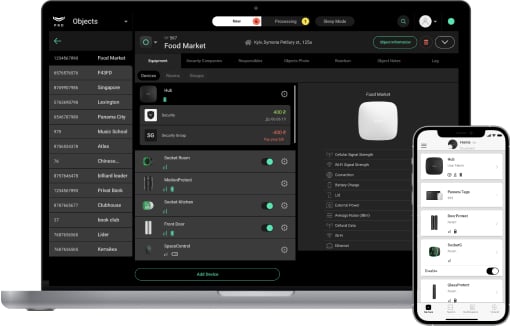

Remote control and configuration

Remote control and configuration

Optional external power supply

Notifies about overheating

Compatible hubs and range extenders

Check

Wherever there is a risk of water leak

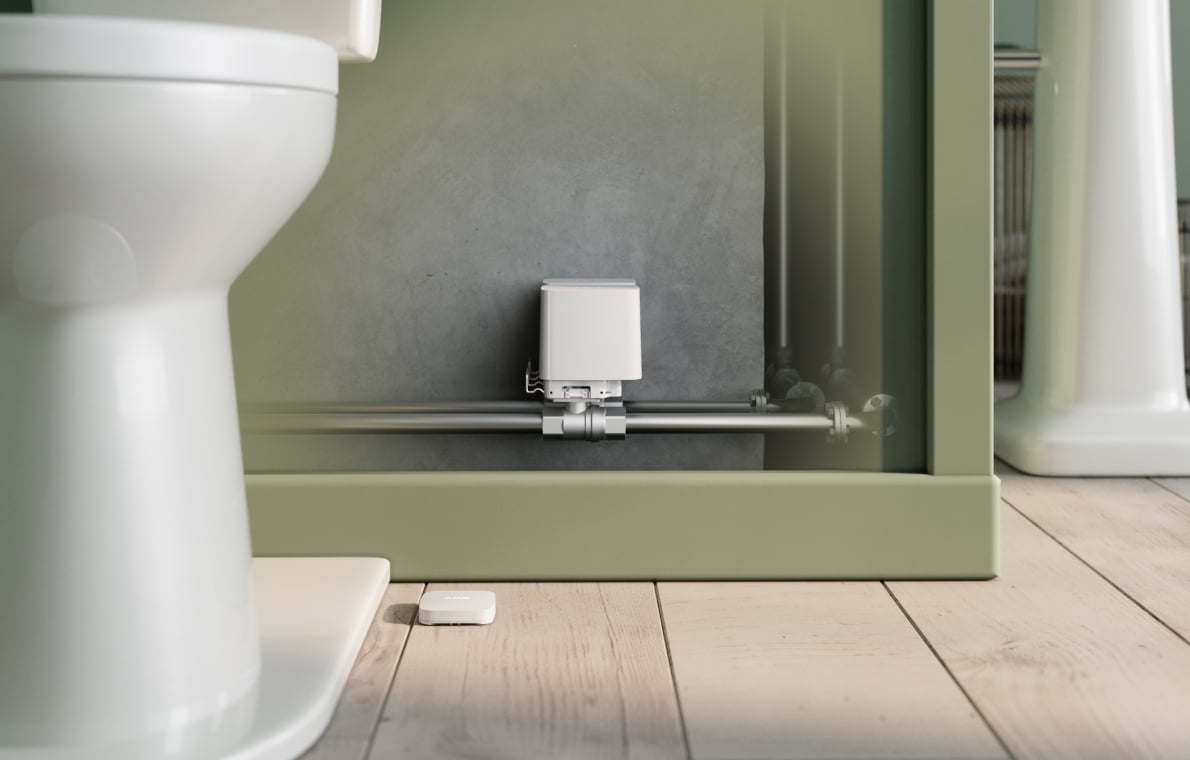

Private residence

Private residence

Be sure that your home is under the care of Ajax. Ajax WaterStop shuts off the water supply when necessary. In an emergency, users and the security company are instantly aware of the water leak at the premises. Forget all your worries about property damage with in-app control and automation scenarios.

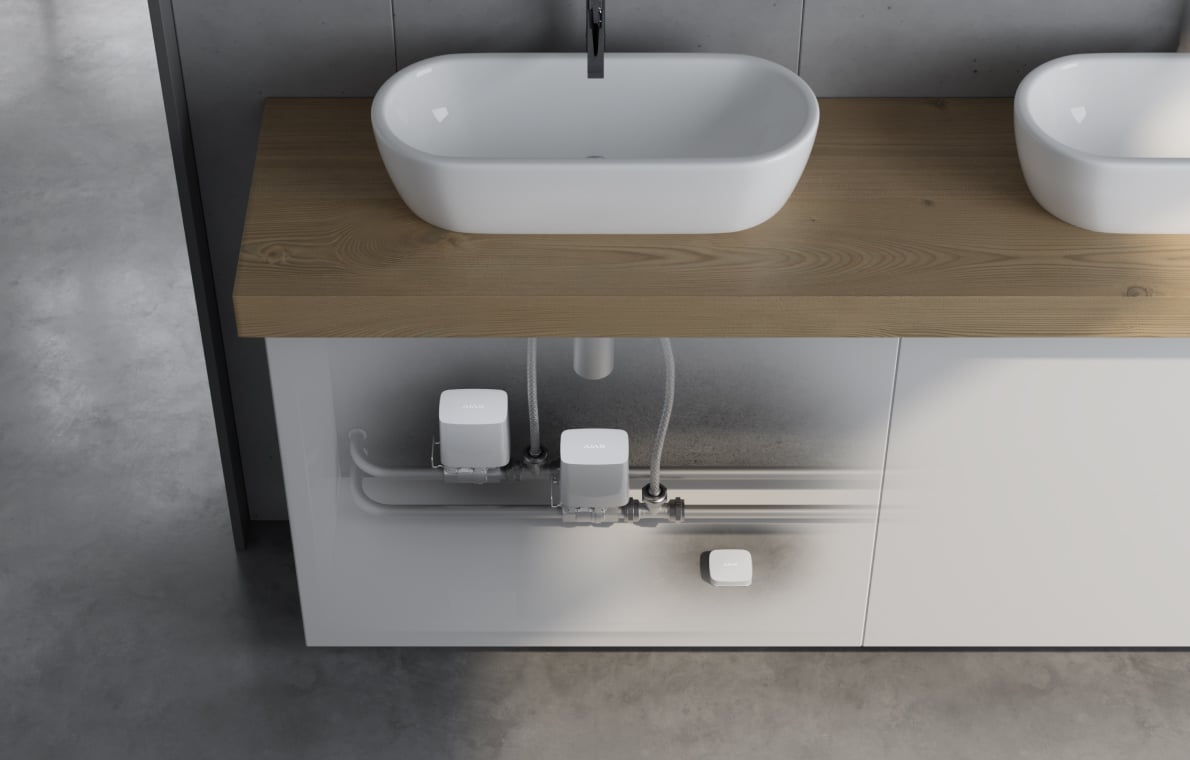

Public space

Public space

In offices, libraries, or malls, the network of leak detectors and shutoff valves will help eliminate flooding and prevent high-cost consequences. The incident can be localized without disturbing the comfort of employees and visitors. The management will know exactly when and where the water leak happened to request the plumbing and cleaning services and navigate them to the scene.

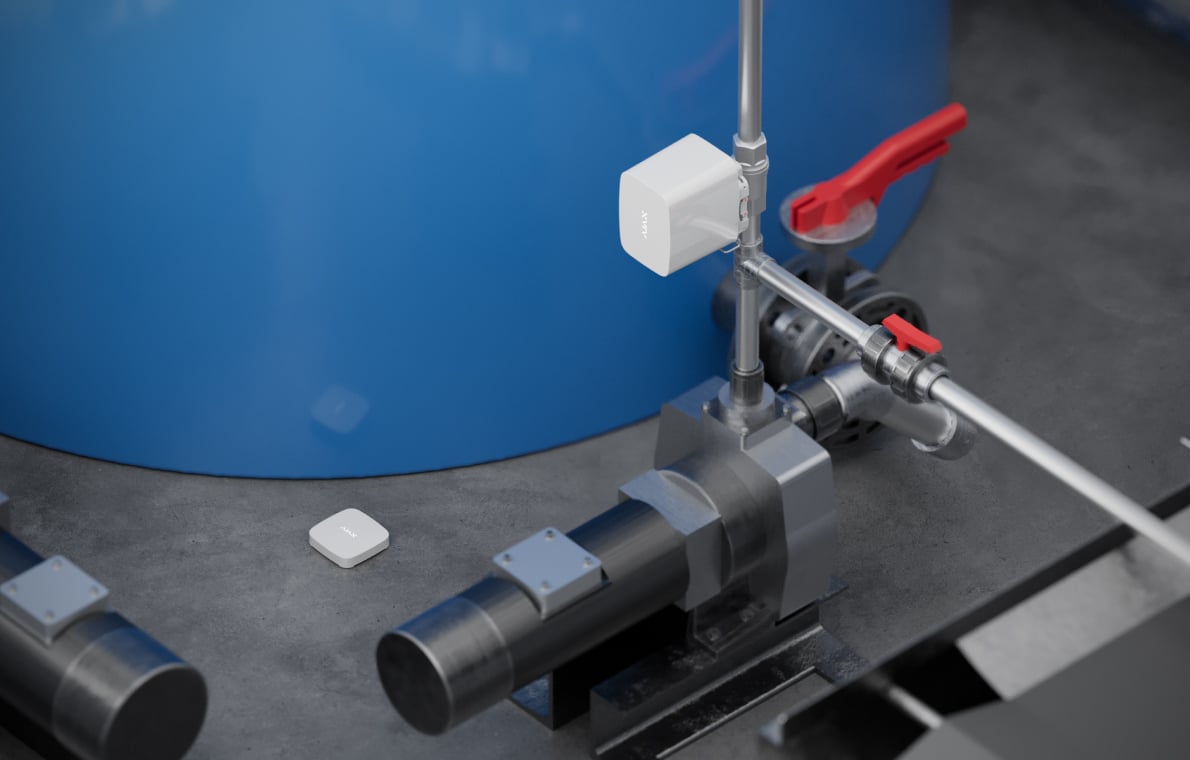

Industrial premises

Industrial premises

An Ajax system can control up to 200 leak detectors and shutoff valves. With the technologies of long-range wireless communication and outstanding battery life, it is easy to build a large water leak prevention network covering massive industrial facilities. Every leak can be eliminated and localized automatically without stopping production.

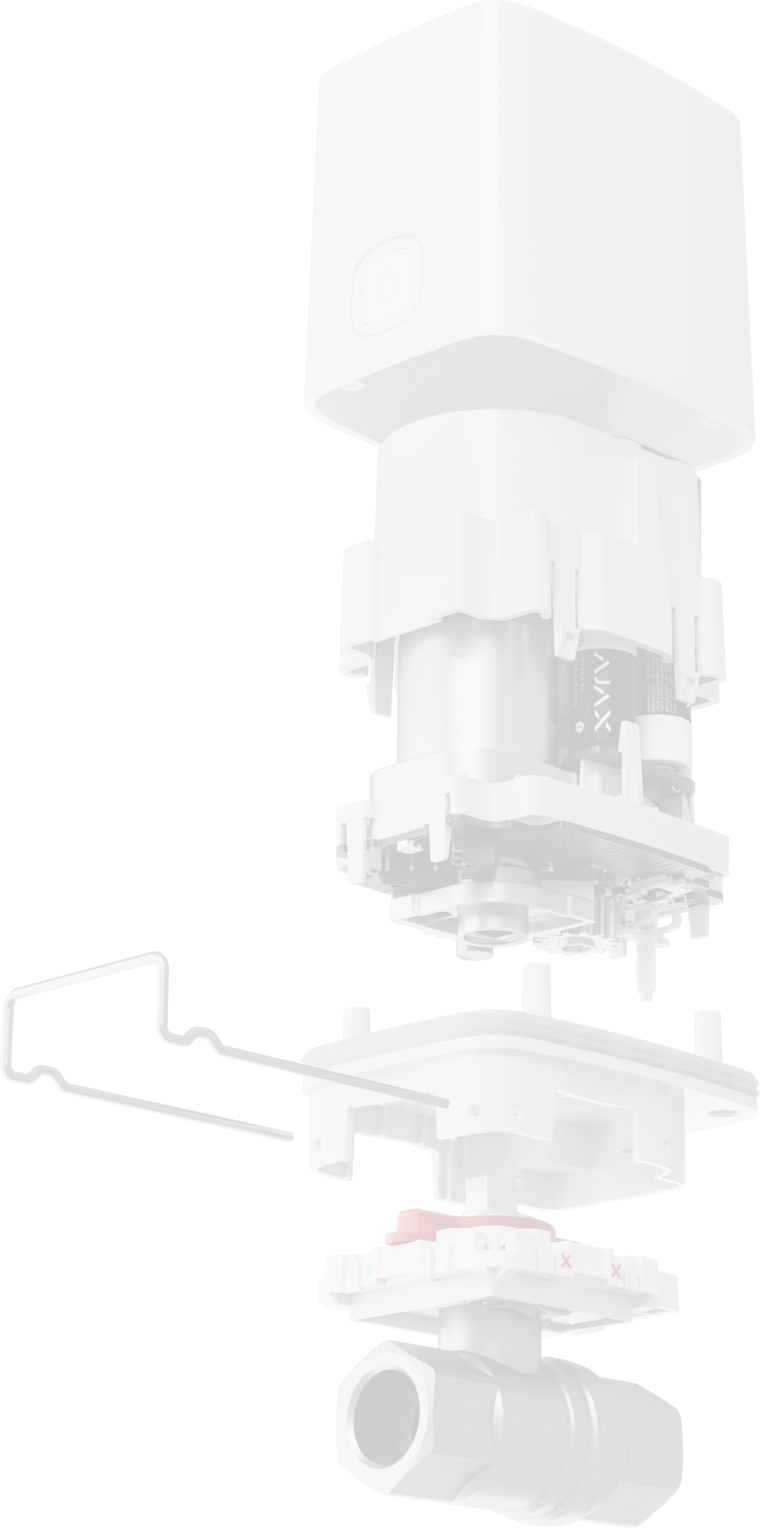

Discover future-proof hardware

Discover future-proof hardware
Electric actuator

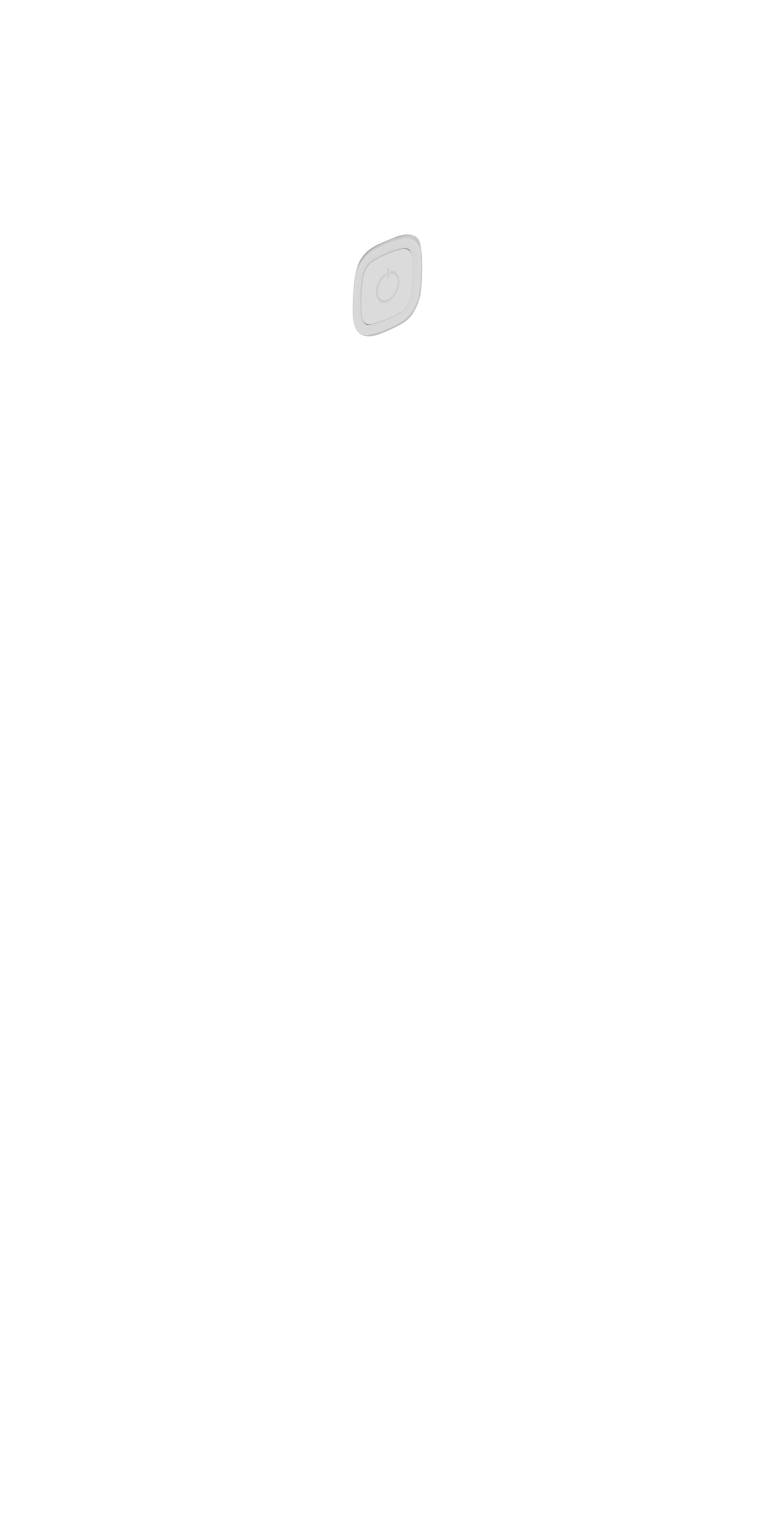

Button to control the water supply

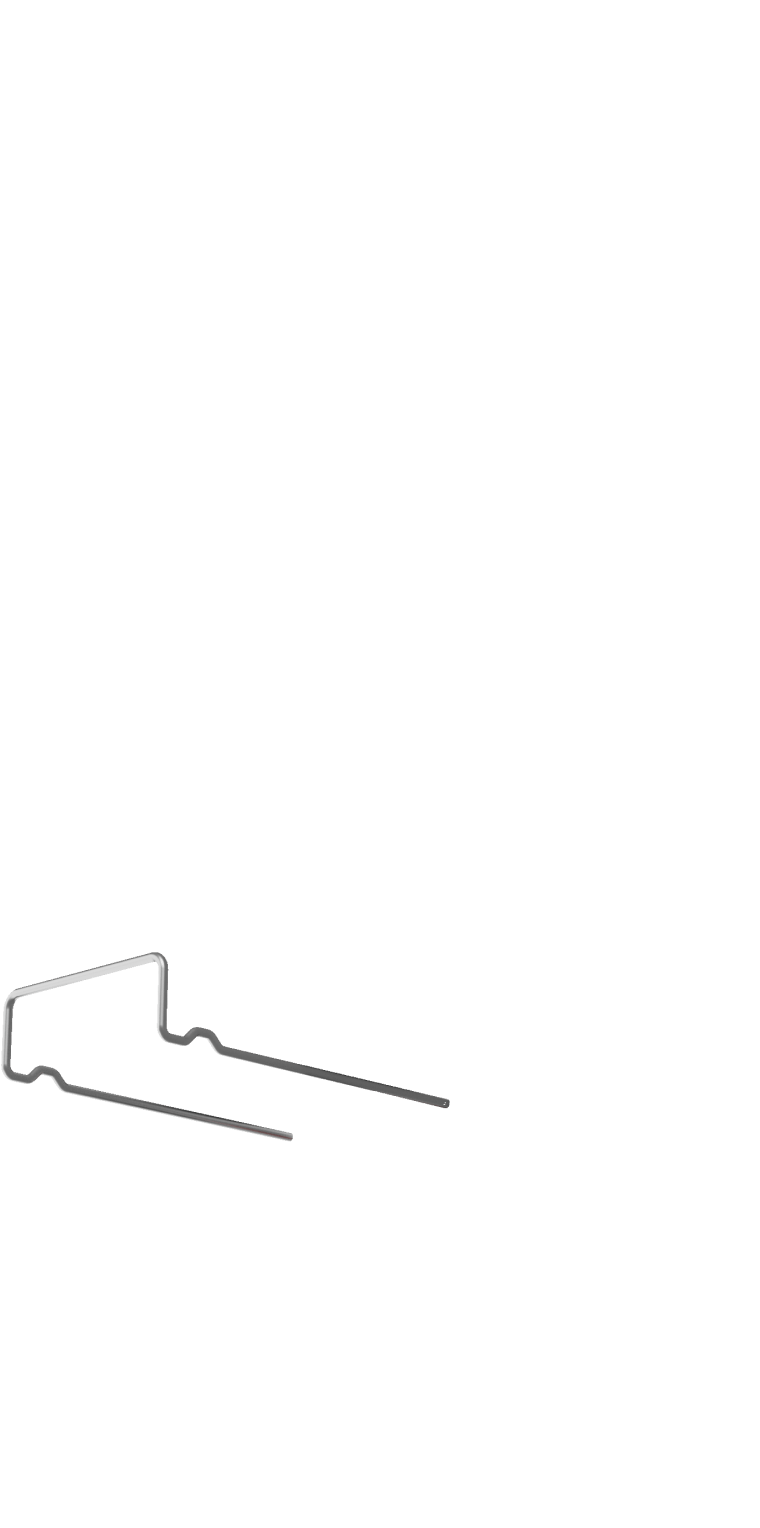

Locker to mount electric actuator without tools

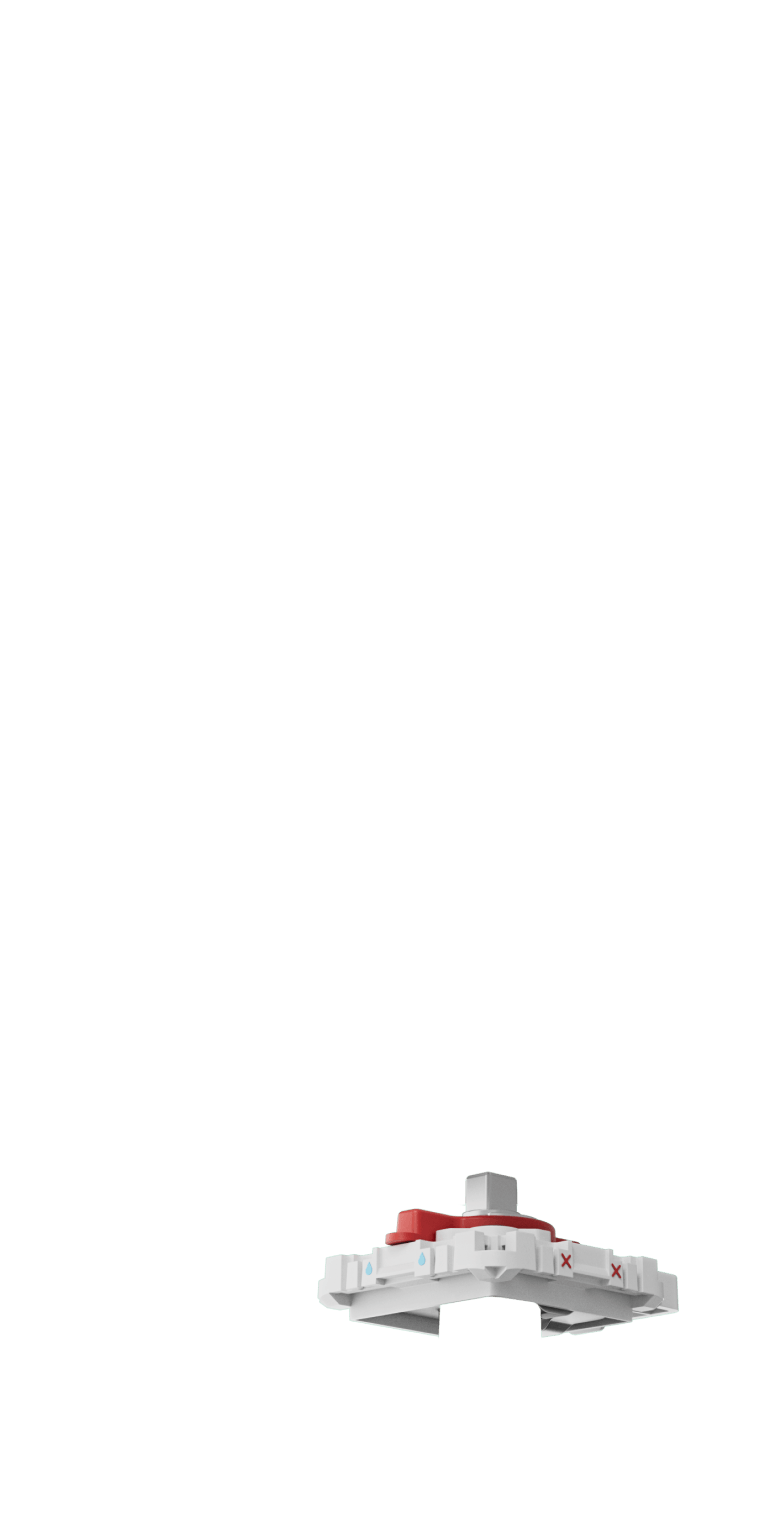

Mounting platform with lever for manual shutoff

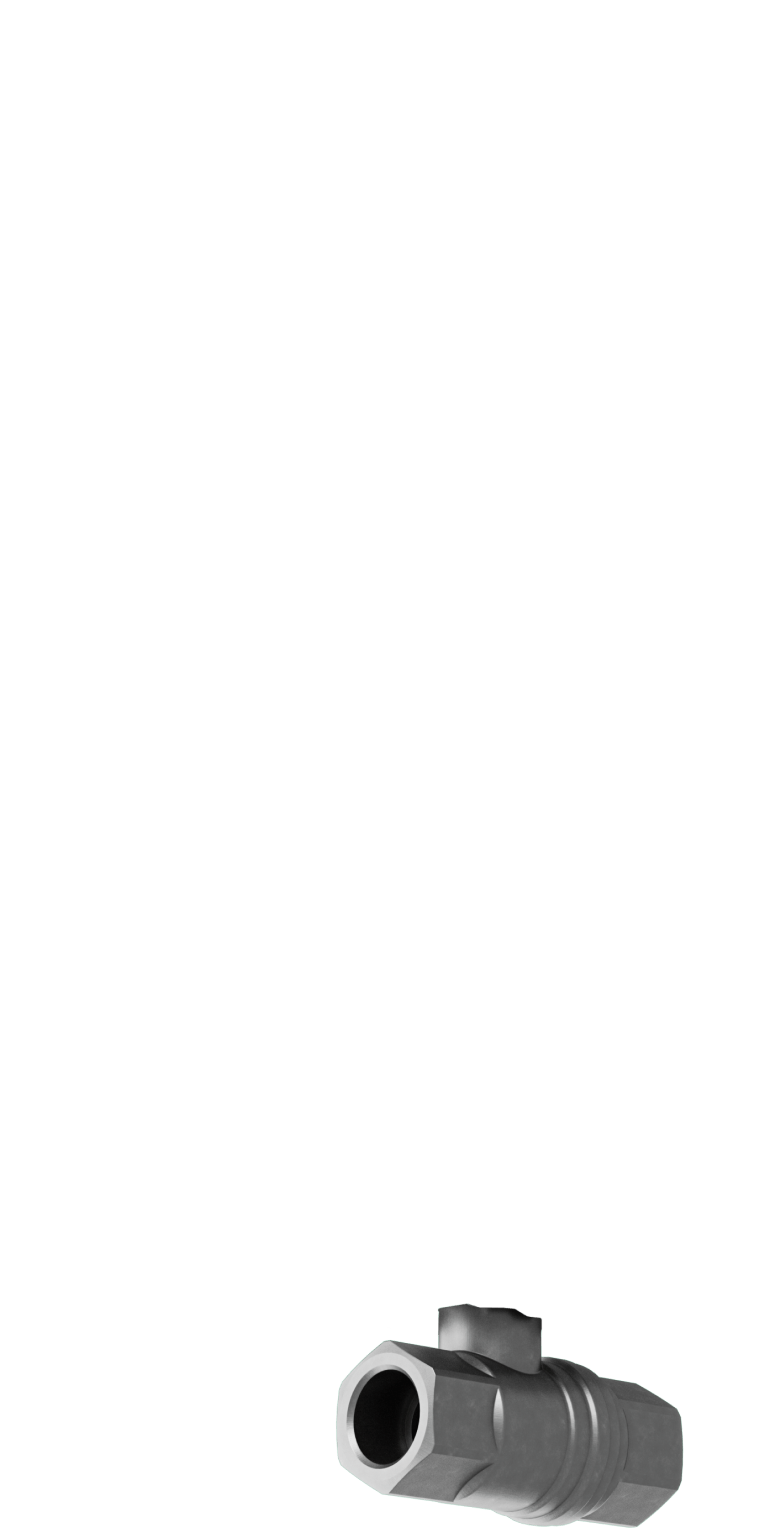

RuB valve
  • Electric actuator

  • Button to control the water supply

  • Locker to mount electric actuator without tools

  • Mounting platform with lever for manual shutoff

  • RuB valve

Hardware

Water shut-off in 7 seconds

Ajax WaterStop is equipped with a powerful actuator of up to 8.5 N•m torque. This is enough to shut off even a stuck-up valve without the risk of damaging it. Under normal operating conditions, Ajax WaterStop shuts off the water in 7 seconds after the command or automatically by scenario whenever LeaksProtect or a third-party sensor detects flooding. In a setting with a ¾-inch pipe and 2.5 bar of pressure in the water supply system, less than 33 oz of water will leak out.

Inside the water leak prevention system based on Ajax, every device operates either on pre-installed batteries or has a backup power supply in case of a blackout. The system monitors the facility 24/7, giving you complete peace of mind that the property is protected.

  • Shuts even a stuck-up valve

  • Suitable for facilities with unstable or no power supply

Water shut off

Protected on every level

Ajax WaterStop is suitable for controlling both hot and cold water supplies and is ready to operate in challenging environments. With additional protection, Ajax WaterStop withstands overcurrent and notifies about overheating, making it impossible for the electric actuator to fail even when the shutoff valve is stuck.

  • Overheating notification

  • Overcurrent protection

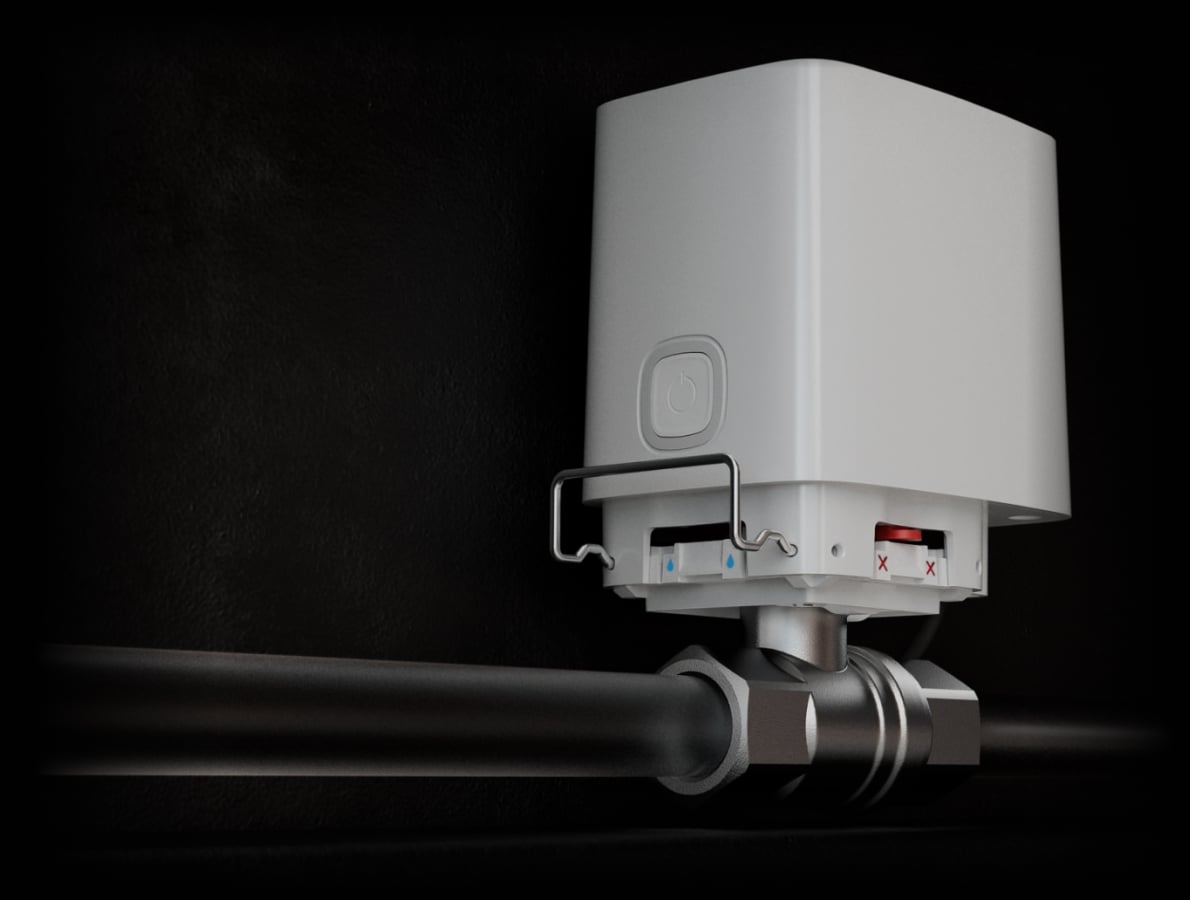

Waterstop protected

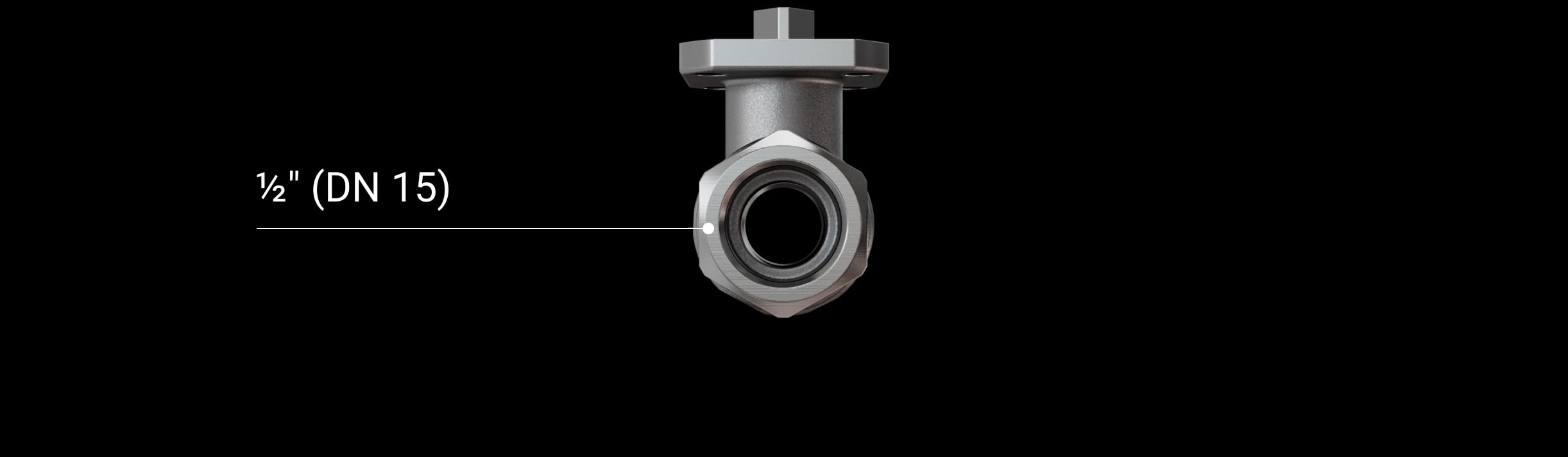

One-stop solid brassware

Ajax WaterStop is available in three versions with different valve options: ½” (DN 15), ¾” (DN 20), or 1” (DN 25). Those are the most common sizes used to cover any demand, from residential to business facilities. Also, the Ajax WaterStop electric actuator is compatible with all ball valves that meet the ISO 5211 standard. So when it comes to specific tasks and sizes, a plumber installs an available on every market compatible valve, and the installation engineer easily connects the electric actuator.

One-stop solid brassware

How to check if Ajax WaterStop is compatible with a third-party shutoff valve

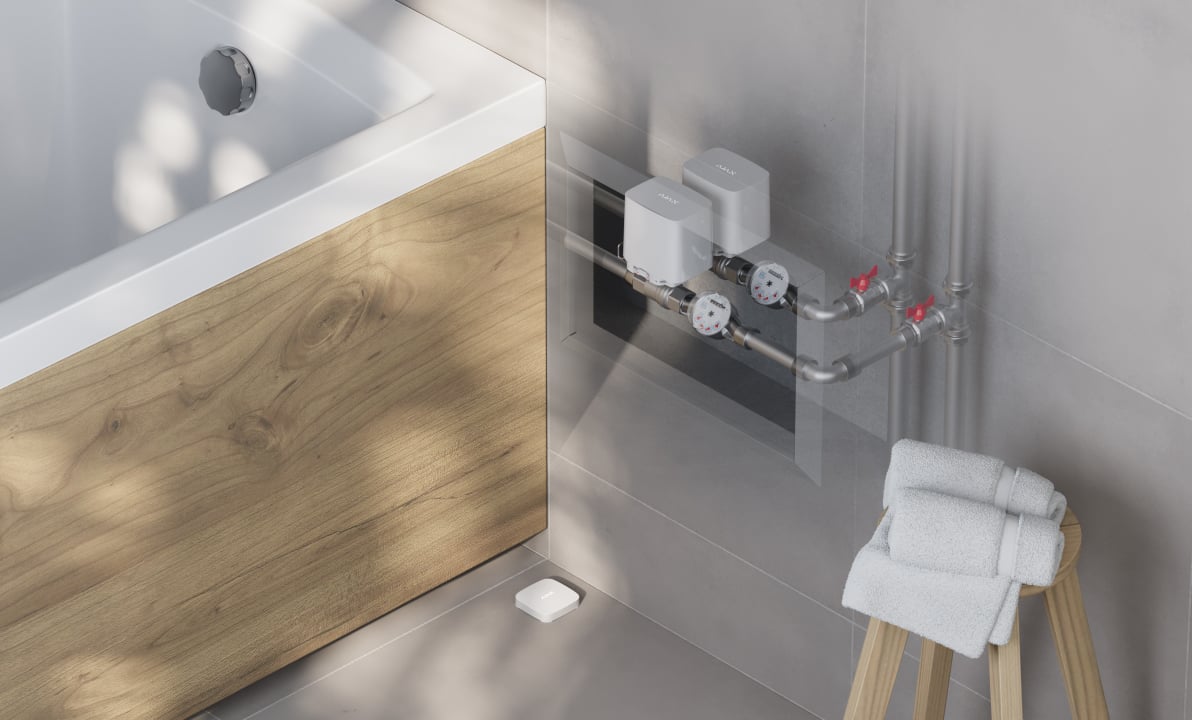

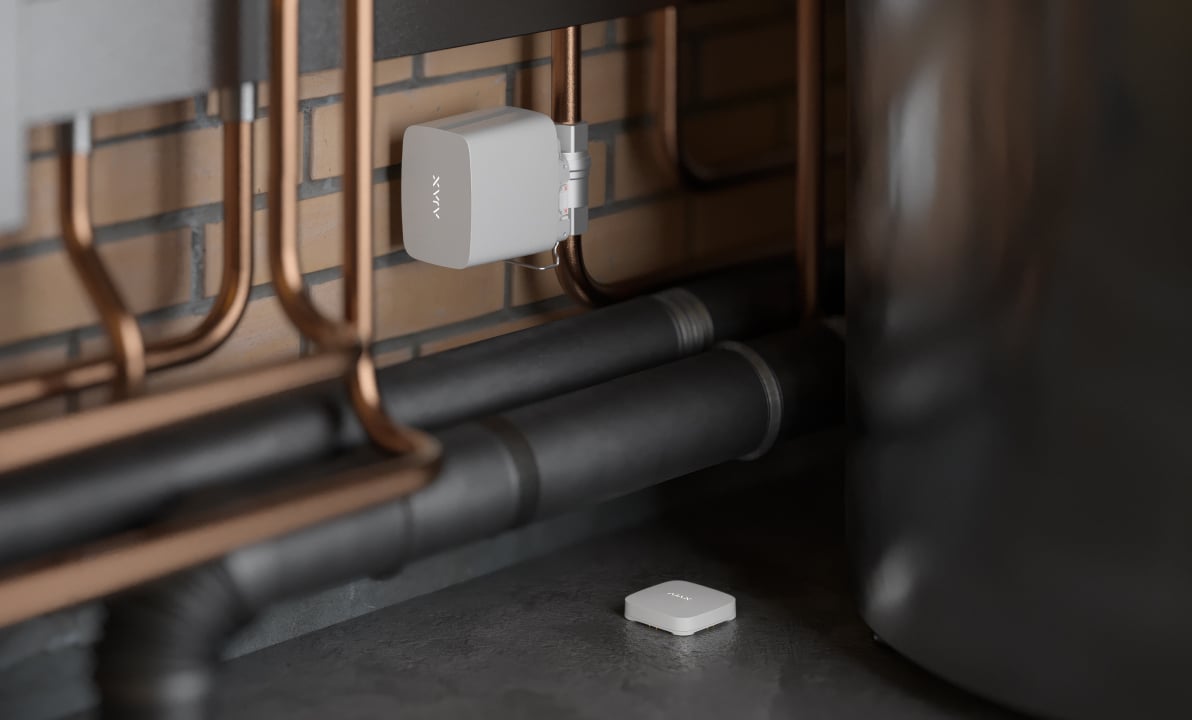

Installation without any construction involved

The myth about anti-flood systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for clients and professionals. Cutting-edge hardware and software engineering allowed us to implement advanced capabilities with significant autonomy in a compact size. Miniature Ajax water leak detectors suit hard-to-reach places and do not require enclosure disassembling — they can be installed on a horizontal surface without attaching. The shutoff valve is installed in line with an existing plumbing system. The actuator unit does not require wires and fits limited spaces, having four possible installation positions towards the valve.

Installation without any construction involved
Installation without any construction involved

Autonomous operation

Stable performance for years

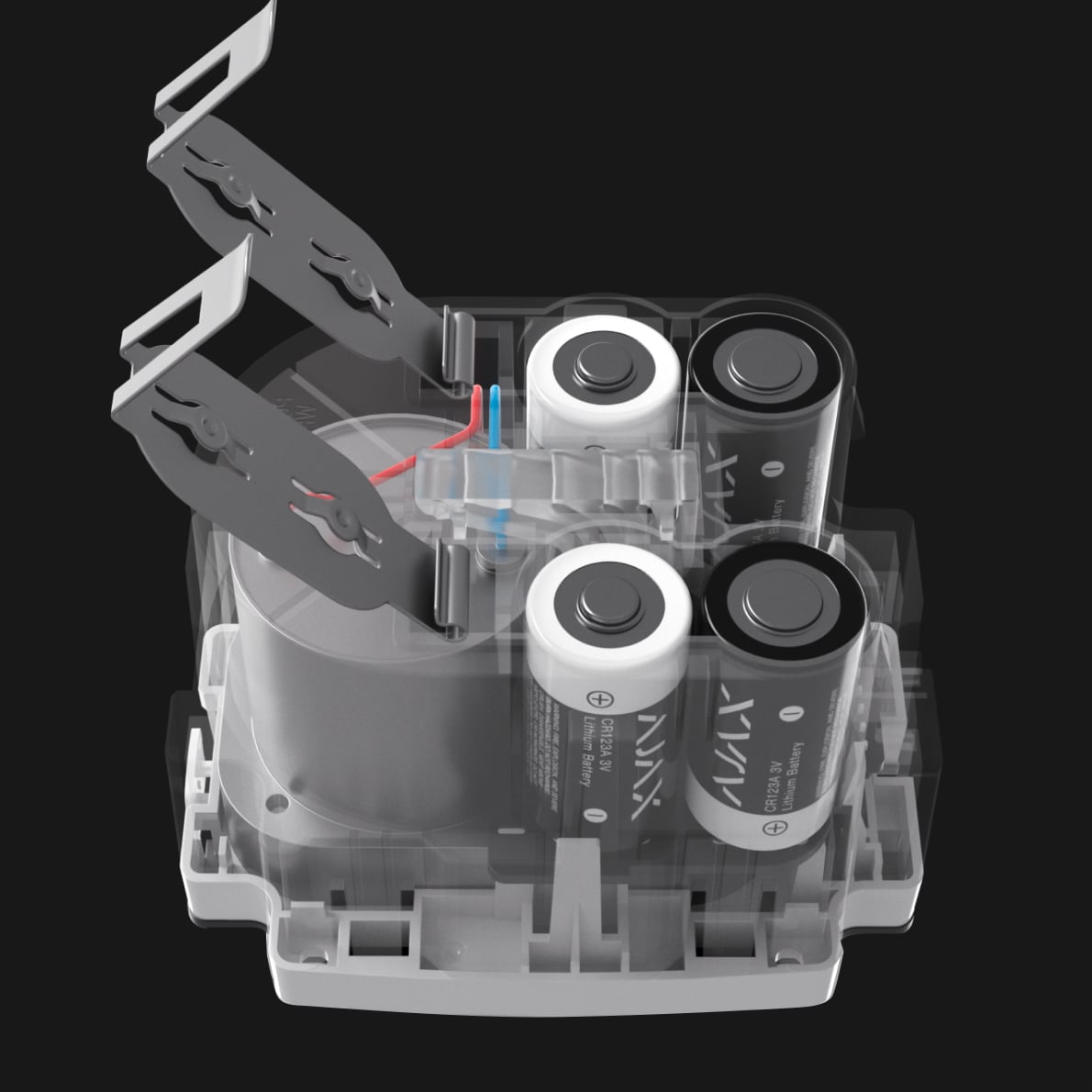

Batteries

No additional cable routing is required: Ajax WaterStop is autonomous and does not depend on the 110 or 220 V~ grid. With a 3-year battery life and no wires, the installation process takes much less time and effort. Ajax apps will notify an installation engineer and users about the low battery level in advance. The batteries are replaceable — so after three years, the installer pops the new ones, and Ajax WaterStop continues to operate as usual.

Batteries
  • Up to 3 years of operation with pre-installed batteries

  • In-app low battery warning

  • Replaceable CR123A batteries

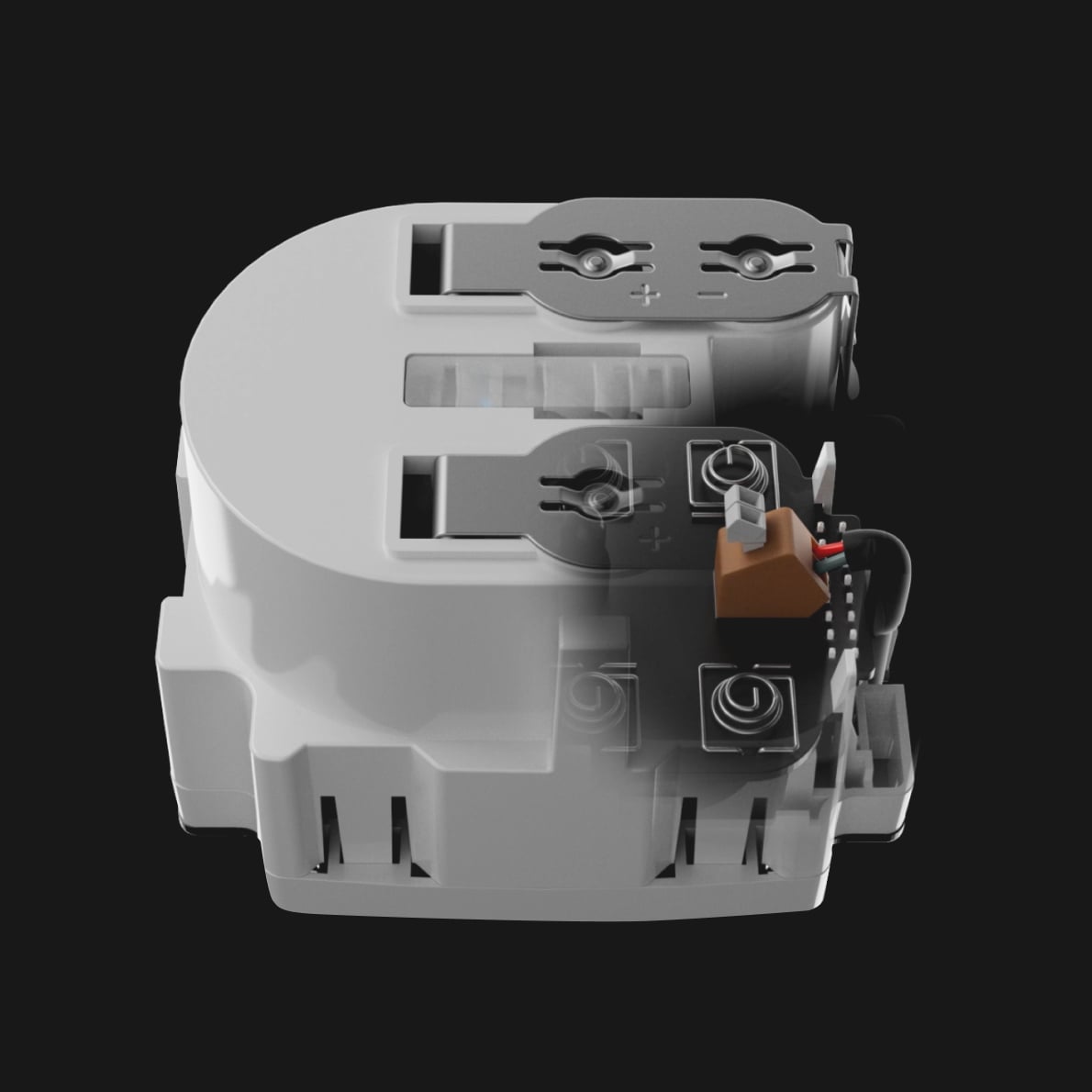

External power supply

When a constant shut-off valve operation is required or the installation place uses extreme temperatures, the batteries can discharge faster. An option to connect a 9–12 V⎓ power supply will come in handy, eliminating frequent battery replacement and reducing service costs. And the pre-installed batteries will serve as a backup, so even in a power outage Ajax WaterStop continues to operate without any problem.

External power supply
  • 9–12 V⎓ power supply connection

  • Pre-installed batteries as a backup power source

Unique wireless technologies

The Ajax system uses two-way secure radio communication based on Jeweller proprietary protocol. It supports block cipher encryption and device authentication on every session with the hub to prevent sabotage, spoofing, or data theft.

Ajax wireless technology has up to 3,609 ft of radio signal communication range in an open space, making it on average longer than competing solutions from different manufacturers. Automatic power adjustment makes it energy efficient by not using the maximum power of radio transmitters in system devices on a regular basis. It is also more stable, using less noisy radio frequencies. For protection against radio interference and signal interception, Ajax hubs use frequency hopping: the system automatically changes frequency within a band and notifies the security company and users about the jamming.

  • Up to 3,609 ft of radio communication range with a hub

  • Encrypted two-way radio communication

  • Notifications about jamming and connection loss

Code
Jeweller

The Ajax radio protocol uses polling to display current device statuses and transmits alarms, events, and all the readings into the Ajax apps. Jeweller features encryption and authentication to prevent spoofing.

Learn more

Scaled and comprehensive

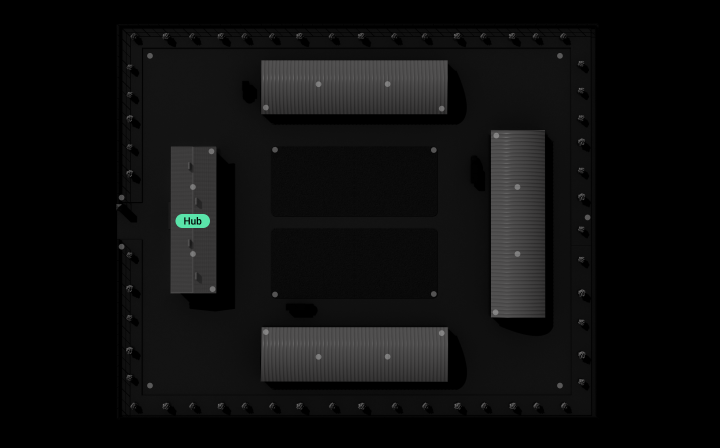

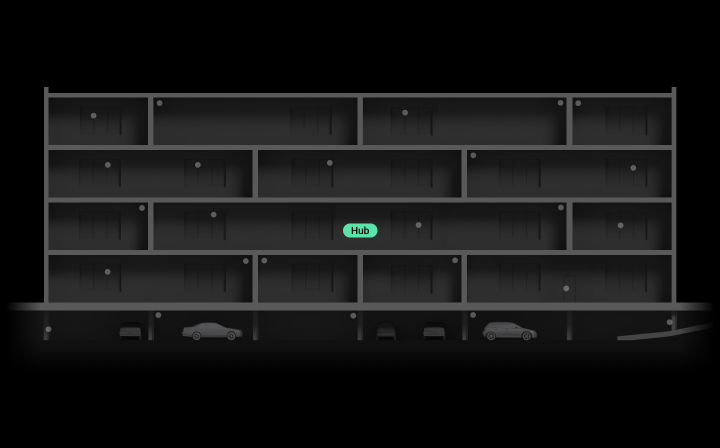

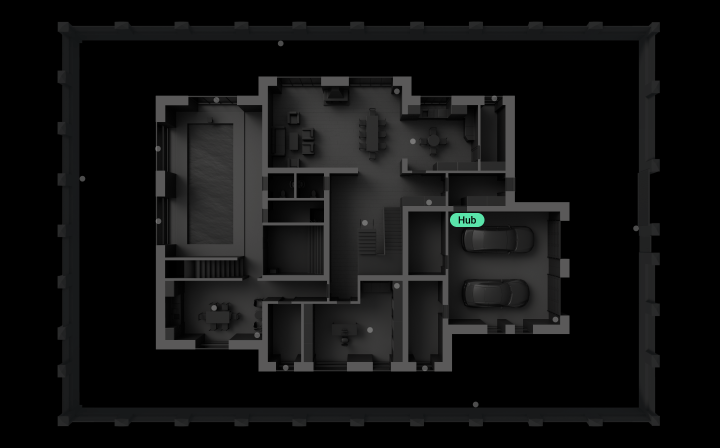

Use the ReX range extender for complex radio signal conditions like large houses with thick walls or warehouses with several buildings. ReX boosts the range of all Ajax devices and manages their communication with the hub via Jeweller. And ReX 2 assures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering underground parking, basements, and metal hangars.

  • Up to 5 range extenders within one system

  • Ethernet as an alternative communication channel

Software

All data at a glance

Intuitive Ajax apps provide all information in real-time from anywhere the Internet is available, on a smartphone or PC. Users can check the device state and control the water supply remotely — any action can be done with one click.

In-app control

The Ajax system instantly notifies about events with informative notifications: security companies and users know exactly which device triggered, when and where it happened. The system controls each device state and reports if there is a malfunction or if it's time to replace the batteries.

Data-rich notifications

Ajax WaterStop can be configured at any time from anywhere, as long as there is an Internet connection. It takes seconds to change the settings or reconfigure the scenario.

Remote configuration

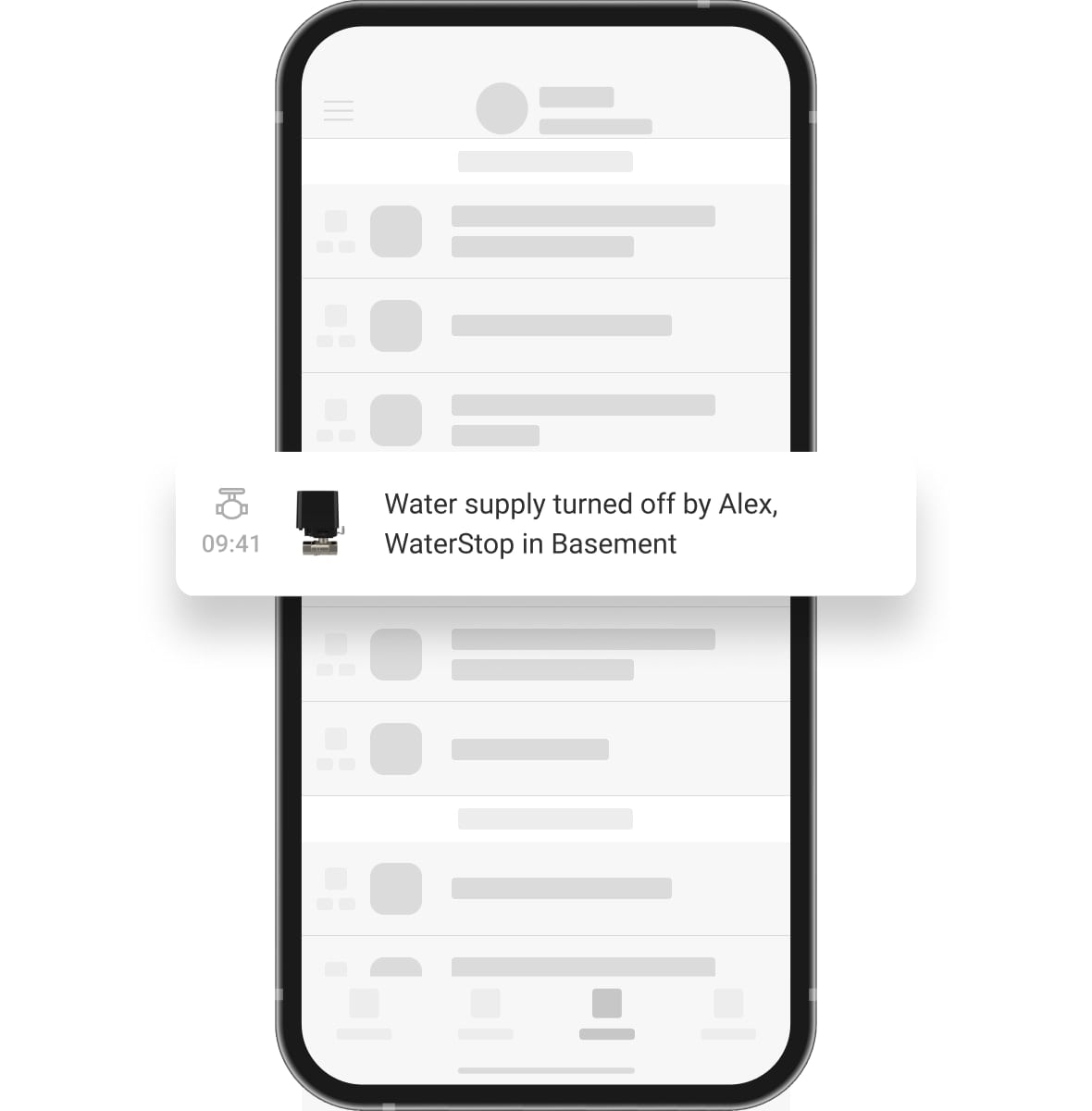

The event log records 500 recent events within the system. The data is explicit with the device, time, and description of the event. It helps to reconstruct the actual event and find the causes to obtain comprehensive information for the insurance company.

Detailed event log

Full monitoring for the building

With PRO Desktop, building admin staff can observe security, automation, and smart home devices. Device statuses, event log, and microclimate data — the operator has a complete picture in one intuitive interface, all informative and centralized. And photo verification of alarms from detectors of the MotionCam lineup will help to find out the situation at the protected facility and quickly respond to it. The installer can remotely change the settings and provide additional services according to the object specifics.

Full monitoring for the building

Advanced automation for greater safety

Ajax WaterStop is a part of the Ajax ecosystem. Using scenarios , it can interact with automation devices and PhOD detectors of the MotionCam lineup. Whether it’s a minor water leak or a massive flooding, Ajax WaterStop shuts off the water in a matter of seconds. At the same time, MotionCam (PhOD) sends pictures to Ajax apps to identify what causes the water leak and assess the possible damage. And to prevent emergencies, automatic water supply control will turn off the water when no one is using it — a reliable combination of security and automation that runs like a Swiss watch.

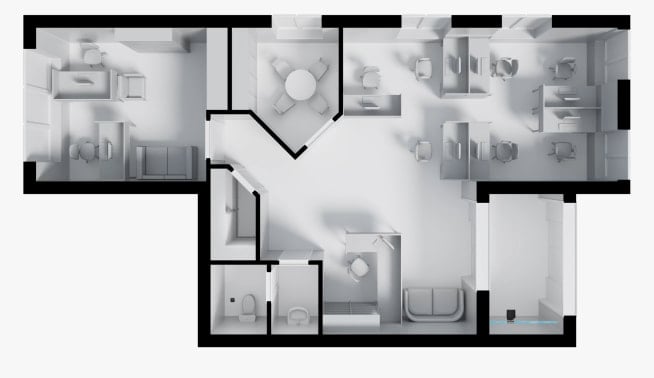

Water leak prevention system

Water leak prevention system

Ajax WaterStop automatically shuts off the water when LeaksProtect or any other third-party leak detector integrated into Ajax via Transmitter or MultiTransmitter detects a water leak.

  • Water leak
  • LeaksProtect Jeweller
  • Ajax WaterStop Jeweller

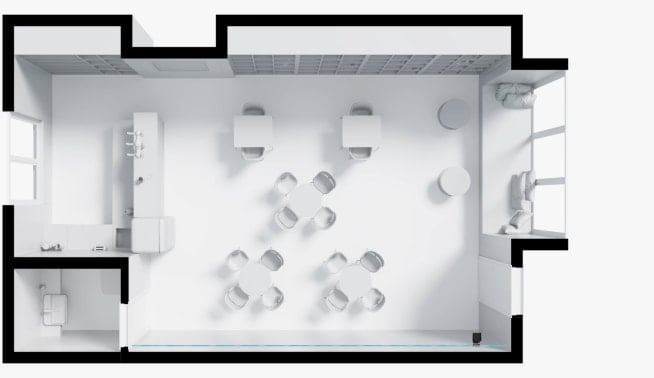

Water shut-off when changing the security mode

Water shut-off when changing the security mode

Ajax WaterStop automatically shuts off the water when you arm the system. Be sure that there will be no water leaks at the facility when you're away.

  • Arming
  • Ajax WaterStop Jeweller

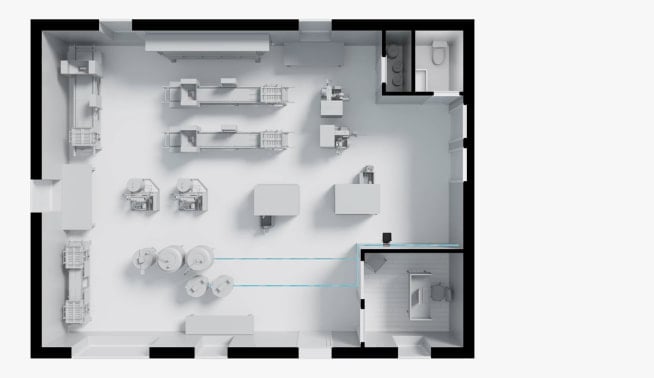

Scheduled water supply

Scheduled water supply

Adjust a schedule, and Ajax WaterStop will automatically turn off the water supply at a particular time.

  • Schedule
  • Ajax WaterStop Jeweller

Only with Ajax

Sabotage-resistant

Communication failure detection

Communication failure detection

The device regularly exchanges data with the hub. With maximum ping interval settings available (3 data packages once in 12 seconds), it takes only 36 seconds to identify communication loss and notify the security company and users about the incident.

Anti-sabotage mount lockers

Anti-sabotage mount lockers

Anti-sabotage mount locker prevents the electric actuator from dismantling unauthorized unless special tools are used. So Ajax WaterStop can be installed in offices, restaurants, libraries, and other public places without worries.

Tamper alarm

Tamper alarm

The enclosure is hardwired with a tamper button, which notifies the security company and users once the electric actuator is dismantled from the mount. Also, it helps to incur that the electric actuator is installed and fixed on the shutoff valve correctly.

Control button locking

Control button locking

The control button on the enclosure can be locked in Ajax apps to prevent accidental or unauthorized manual shut-offs.

Intuitive installation and connection

The Ajax WaterStop actuator is ready to operate straight out of the box. It installs on the mounting platform without tools and enclosure disassembling in four possible positions towards the valve. A plumber installs a bundled or another compatible shutoff valve in advance without an installation engineer's presence — all he needs to know is the electric actuator dimensions.

Ajax apps help quickly make the device a part of the automated system. There is no need to visit the object to disable the device or change the settings. The design allows maintenance and repair in hard-to-reach places: pipe tunnels, technical boxes, walls, etc. It is possible to replace the actuator unit without dismantling the shutoff valve.

Pairing with the security system via QR code

Connection

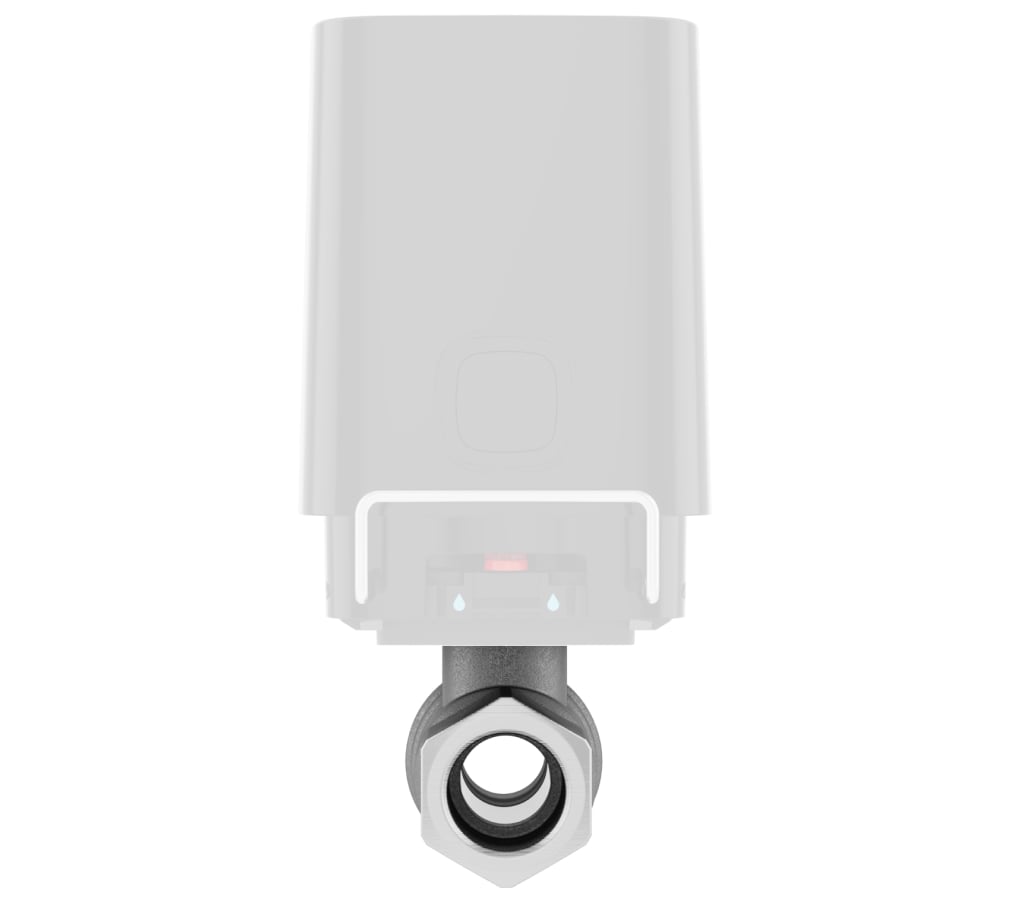

Installation on a shut-off valve without disassembling the enclosure of the electric actuator

Installation

Configuring and testing in mobile and desktop apps

Setup

Ajax product lines

Superior, Fibra, and Baseline product lines are mutually compatible. This opens up numerous possibilities for building systems of any configuration.

Ajax WaterStop — remote-controlled water stop valve

The Ajax WaterStop tap allows you to remotely shut off the water supply in the room under the control of the Ajax security system. The device combines a high-quality Bonomi Industries valve and an electric actuator with a control unit. The faucet to control the water supply is connected to the control panel via the secure wireless Jeweller protocol. Ajax WaterStop can be controlled remotely from anywhere worldwide simply by accessing the Internet. Ajax's applications for PCs and mobile phones allow you to check the status and change the position of the valve at any time. The water stop valve from Ajax WaterStop will automatically turn off the water in 7 seconds on the alarm of the LeaksProtect water leakage sensor or another water leakage sensor. At the time of an alarm, all users connected to the system and the security company will receive a notification about the alarm and the scenario activation. In addition to the scenario of leakage, it is possible to set the shutdown of water at a particular time or when the security system becomes armed.

Features of Ajax WaterStop remote controlled water shut off faucet

The water stop valve is available in black and white. The device is compatible with pipes for supplying cold and hot water. To shut off the water, an electric drive is used, which is protected from overheating and can operate at temperatures up to 60 °C at the installation site. The built-in tamper alarm reports an attempt to tear the case off the mounting platform. The Ajax WaterStop faucet works with the Jeweller wireless communication protocol, which allows communication with the security system control panel at 1100 m without obstacles. Management and configuration take place remotely using Ajax applications. Jeweller radio technology provides two-way communication between the alarm central and the water shutoff valve and protects the device from forgery with block encryption with a floating key. Also, notifications to the application are sent instantly. The applications for PCs and smartphones also display the current status of the tap to shut off the water: open/closed, the status of the battery charge, external power supply, and communication with the control panel. The radio signal strength is automatically adjusted to reduce power consumption and interference.  RF hopping is used to prevent radio interference and jamming. Loss of communication is detected within 36 seconds, this time depending on the settings of the communication technology. The valve has an input for an external power supply of 9 V⎓. The Bonomi Industries valve is included. And it works with a temperature range from -20°C to +170°C. With the help of the valve, the water is blocked in 7 seconds. This value may increase due to contamination of the shutoff valve. There is a lever on the platform to manually shut off the water supply in emergencies. Water supply control does not require tools. There is a button on the body of the electric drive for manual control. When pressed, the shutoff valve opens/closes. LED indication using the color of the LED backlight of the Ajax logo indicates the state of the drive.

The Ajax WaterStop faucet supports automation scenarios such as:

  1. Responds to water leakage sensor alarms.
  2. To change the security mode.
  3. Performs scheduled activities.
  4. It fires when a Button is pressed.
  5. Works on temperature.
  6. Activated by pressing LightSwitch.

Compatibility of the tap for shutting off water from Ajax

The faucet for remote shutoff of water is compatible with the following control panels and signal repeaters:
  1. Hub Plus
  2. Hub 2 (2G)
  3. Hub 2 (4G)
  4. Hub 2 Plus
  5. Hub Hybrid (2G)
  6. Hub Hybrid (4G)
  7. Rex
  8. Rex 2

Installing a water stop device from Ajax

The design of the Ajax WaterStop water shutoff valve allows you to mount, maintain, and repair devices in hard-to-reach places: a mine, a technical box, a wall, etc. You can replace the drive unit without dismantling the shutoff valve. The actuator can be removed from the valve without tools. The Ajax WaterStop valve is designed for indoor use. To install the shutoff valve, you need to contact a plumber.

Faucet kit for remote shutoff of water

Together with the Ajax WaterStop Jeweller, the kit will include four pre-installed CR123A batteries that last up to 3 years (when an external power supply is connected, the batteries become a backup power source) and a brief instruction.
