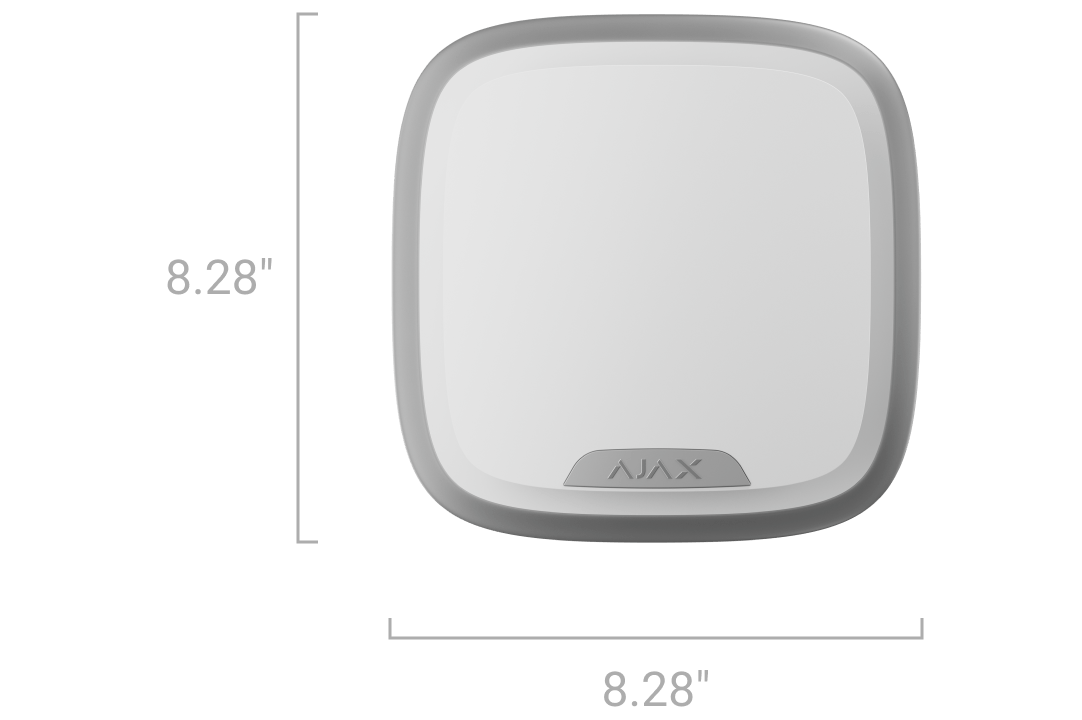

Superior StreetSiren Plus Jeweller

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio communication range

up to 4,900 ft

Between the siren and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Alarm type

acoustic and light

A speaker and LED frame.

Type of warning device

type X

External, self-powered, remote power source with EN 50131-6 compliant power supply.

Alarm volume

from 85 to 107 dB at a distance of 3.3 ft

Adjusted by a PRO or user with admin rights in the Ajax app.

Alarm duration

from 3 s to 3 min

Adjusted by a PRO or user with admin rights in the Ajax app.

Alarm sound

2 types

NFA2P-compliant and Regular.

LED indication

2 types

If the siren has an external power supply, the user can choose between the Corner backlight and Full-frame backlight features. If the siren is powered by a battery, only the Corner backlight feature is available.

Siren sound frequency

• 1,400−1,600 Hz in NFA2P-compliant mode
• 1,400−1,600 Hz in Regular mode

Device self-test

Allows you to check whether the battery is sufficiently charged for normal operation.

Events indication

• Alarms.
• Delays when entering/leaving.
• Security mode.
• Security mode changing.
• After-alarm indication.

Chime

The siren makes a special sound to notify that the opening detectors are triggered when the facility is disarmed.

Tamper alarm

Notifications on attempts to open the siren’s enclosure, detach the siren from the surface, or remove the siren from the mounting panel.

Protection against spoofing

device authentication

Jamming detection

The siren detects jamming and alarms about it.

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Batteries

8 × CR123A 3 V⎓ lithium battery

Pre-installed.

Type

Type C.

Calculated battery life

up to 10 years

Siren’s operating voltage range

3.65−6.2 V⎓

Siren’s nominal operating voltage

3 V⎓ in standby mode

6 V⎓ when the siren sounds

Quiescent siren’s current consumption

75.6 µA

Peak siren’s current consumption at nominal voltage

690 mА

When the siren sounds at the Very loud volume level.

Average siren’s current consumption at nominal voltage

126 mA

When the siren sounds at the default volume level. Regardless of the arming mode.

Full capacity

12,800 mAh

Low battery voltage

4.65 V⎓

End-of-life battery voltage

3.65 V⎓

Manufacturer

Huiderui

Electric shock protection class

Class III

Remote power supply’s operating voltage

9.6−14.4 V⎓

Remote power supply’s nominal voltage

12 V⎓

Quiescent siren’s current consumption at nominal voltage

8 mA

Average siren’s current consumption at nominal voltage

80 mA

When the siren sounds at the default volume level. Regardless of the arming mode.

Peak siren’s current consumption at nominal voltage

420 mA

When the siren sounds at the Very Loud volume level.

Superior StreetSiren Plus Jeweller

SmartBracket mounting panel

Installation kit

Quick start guide
