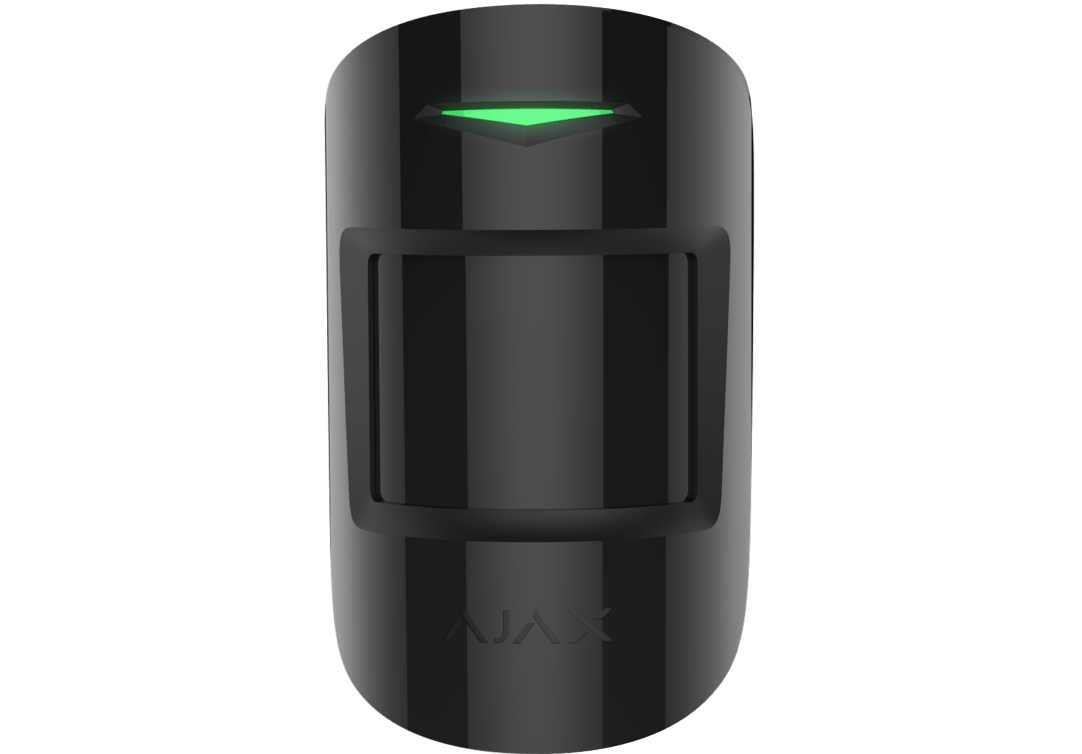

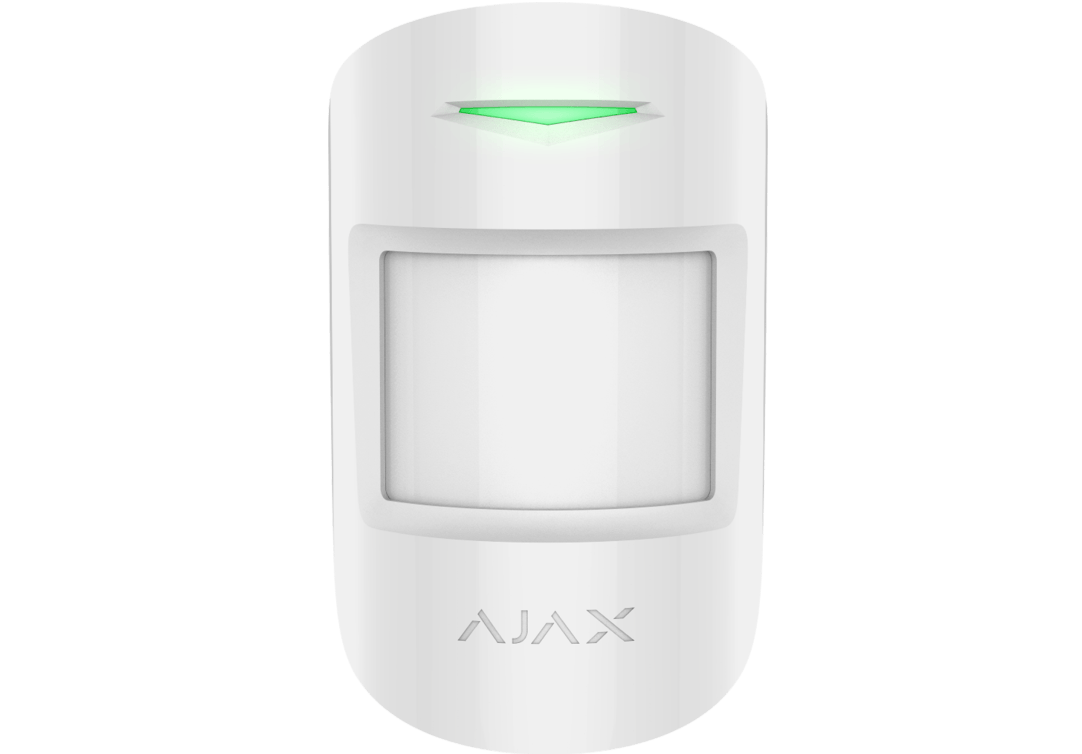

MotionProtect Jeweller

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 5,600 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Tamper alarm

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Battery

1 × CR123A

Pre-installed.

Type

Type C.

Detector’s operating voltage range

2.1−3.3 V⎓

Detector’s nominal operating voltage

3 V⎓

Quiescent detector’s current consumption at nominal voltage

34.5 μA

Maximum detector’s current consumption at nominal voltage

61 mA

Full battery capacity

1,600 mAh

Low battery voltage

2.5 V⎓

Low battery recovery voltage

2.7 V⎓

End-of-life battery voltage

2.1 V⎓

The device is switched off.

End-of-life battery capacity

300 mAh

Calculated battery life

up to 5 years

Manufacturer

Huiderui

UL listed.

MotionProtect Jeweller

SmartBracket mounting panel

CR123A battery (pre-installed)

Installation kit

Quick start guide
