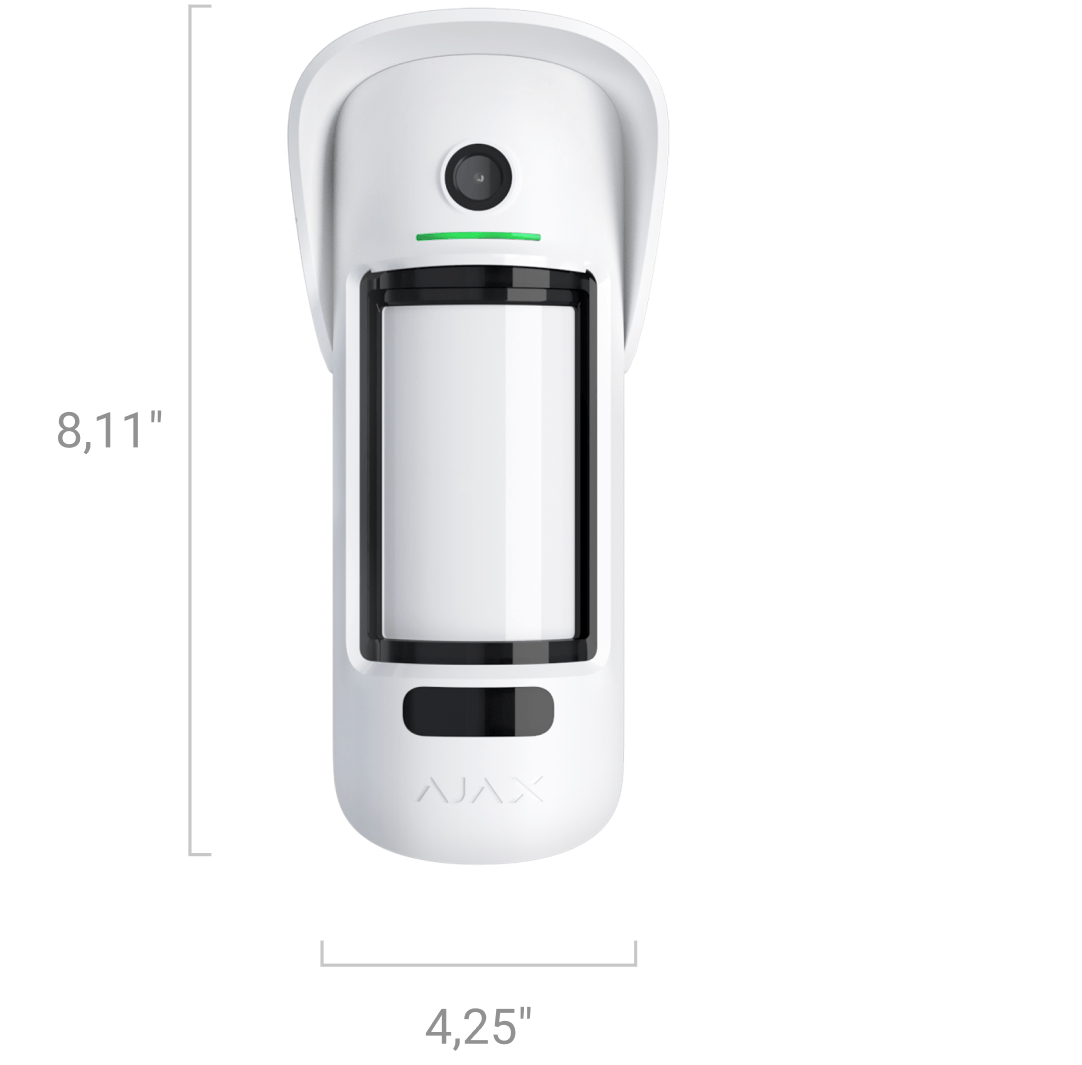

MotionCam Outdoor (PhOD) Jeweller

Jeweller communication technology

Proprietary wireless communication technology to transmit alarms and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote configuration via the Ajax apps.

Frequency bands

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio signal range

up to 5,600 ft

Between detector and control panel or range extender in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Wings communication technology

Key features:

• Two-way communication.
• Block encryption featuring a dynamic key.
• Advanced anti-sabotage.
• Data package reloading in case of transmission errors.
• Photo delivery check.

Frequency bands

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

Radio signal range

up to 5,600 ft

Between detector and control panel or range extender in an open space.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Photo by Alarm

A built-in camera is activated if the detector is armed, and motion is detected.

Photo on Demand

User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.

Photo by Scenario

A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.

Photo by Schedule

The detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher.

Photo resolution

640 × 352 px
320 × 176 px (by default)

Adjusted by PRO or user with admin rights in the Ajax app.

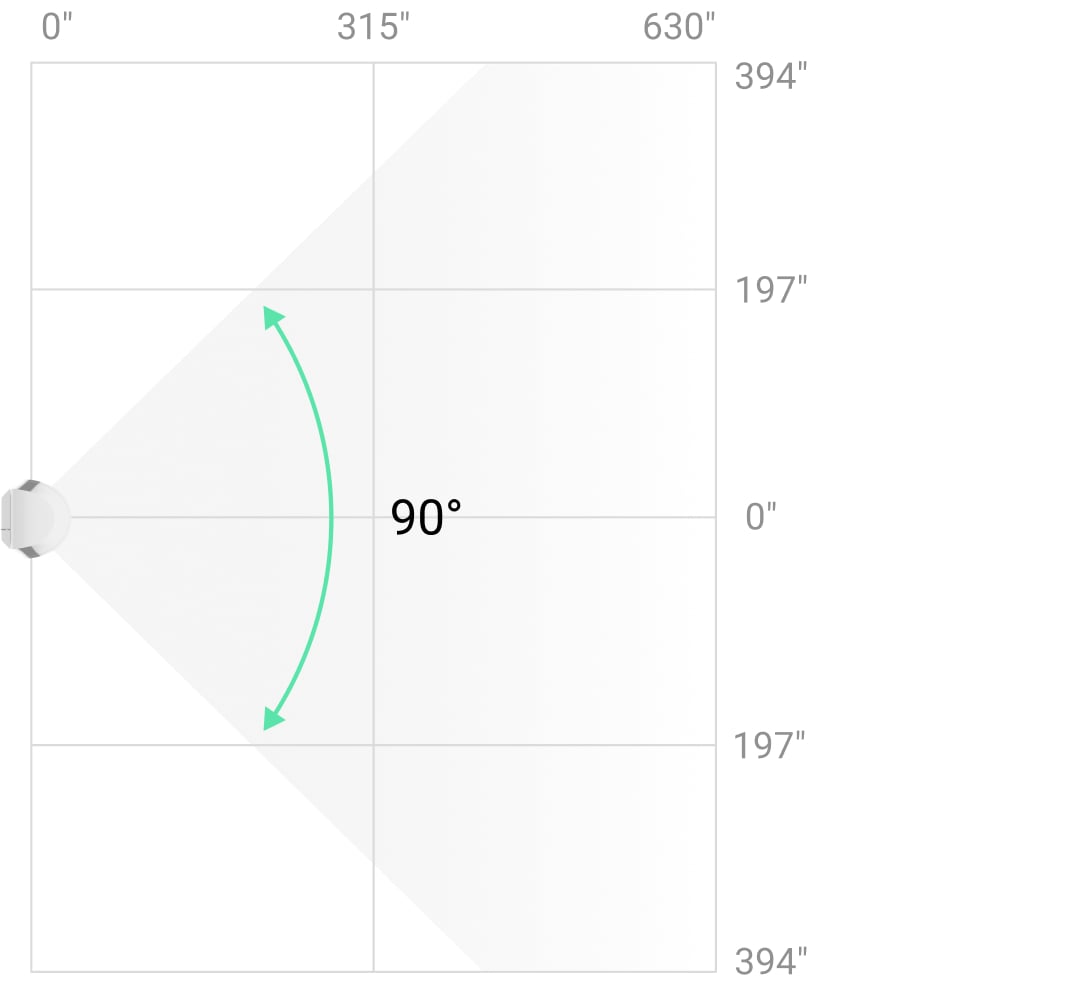

Camera viewing angles

horizontal — 105°
vertical — 50°

IR backlight

For night photography and low light conditions.

Pictures in a series

from 1 to 5 images with resolution of 320 × 176 px
from 1 to 3 images with resolution of 640 × 352 px

Adjusted by PRO or user with admin rights in the Ajax app.

Photo delivery time

up to 9 s — 320 × 176 px resolution
up to 20 s — 640 × 352 px resolution

When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.

TV distortion (EBU standard)

barrel — 17%

Anti-masking system

The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.

Tampering alarm

Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against forgery

device authentication

Communication loss detection

within 36 s

Detection time depends on the Jeweller settings.

4 × CR123A battery

Up to 3 years of battery life.

MotionCam Outdoor (PhOD) Jeweller

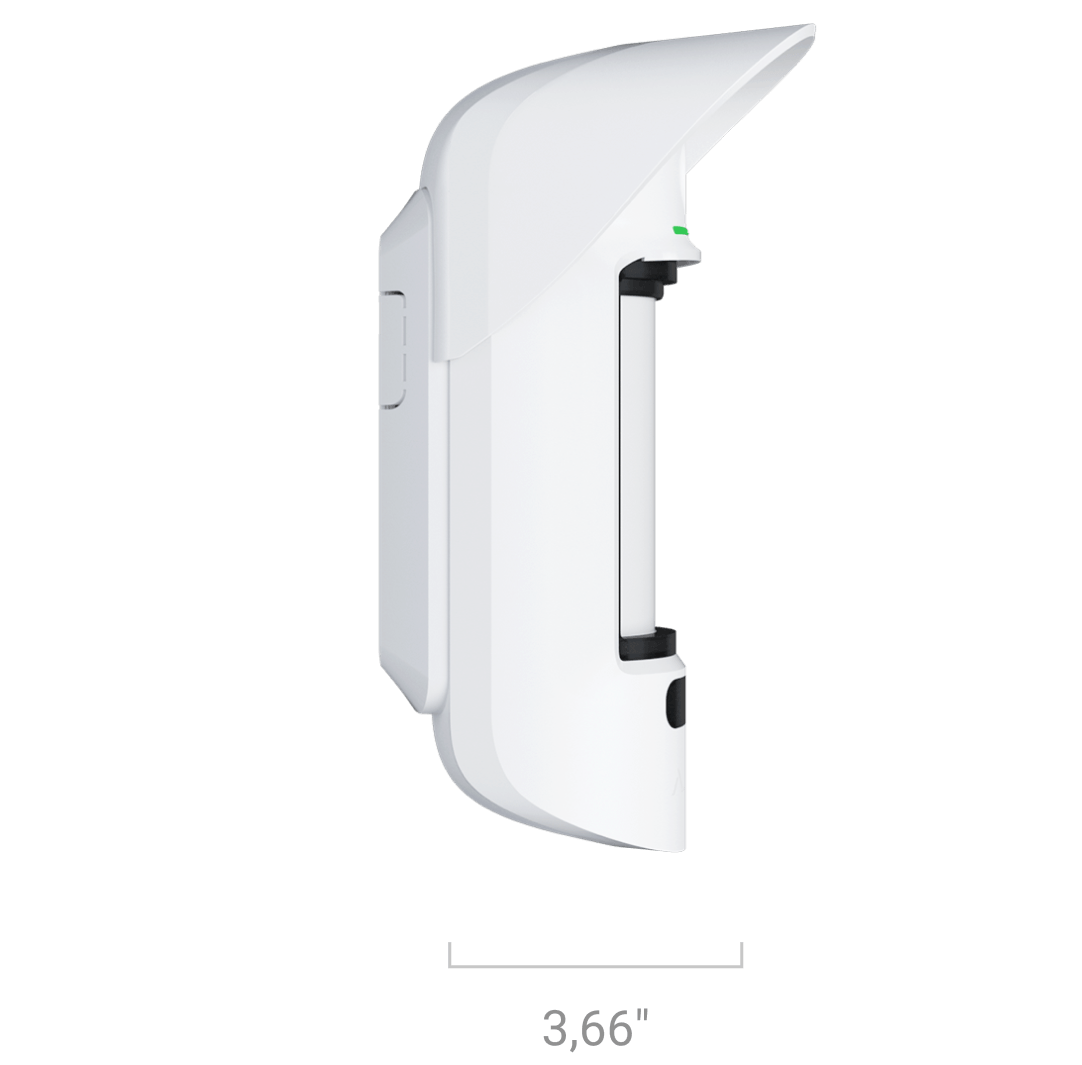

Hood

To protect the camera and masking sensors from snow and rain.

SmartBracket mounting panel

Installation kit

4 × CR123A battery

Pre-installed.

Quick start guide
