MotionCam Jeweller

Wireless IR motion detector supporting photo by alarm feature

MotionCam Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio signal range

up to 5,500 ft

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit photos.

Key features:

  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Data package reload in case of transmission errors.
  • Photo delivery check.

Frequency bands

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

Radio signal range

up to 5,600 ft

Between detector and hub or range extender in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Detection

Sensitive element

PIR sensor

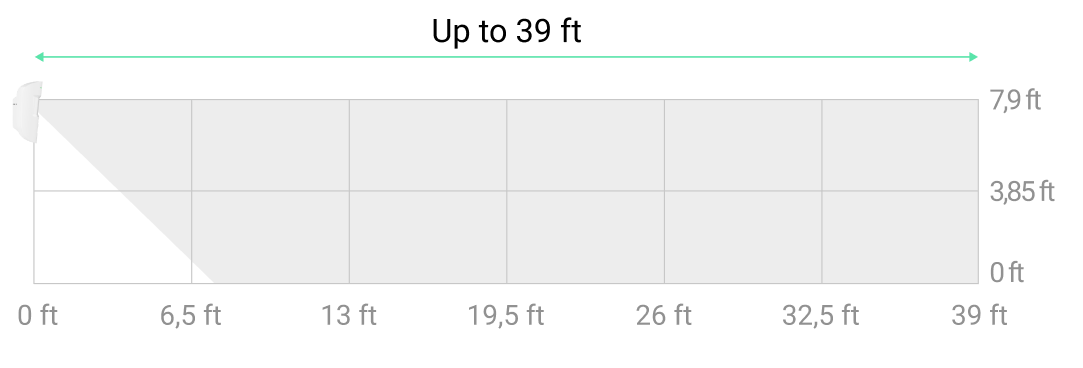

Motion detection distance

up to 39 ft

When installed at a height of 7.9 ft.

Motion detection angles

horizontal — 88.5°

Motion detection speed

from 1 to 6.6 ft/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by a PRO or user with admin rights in Ajax apps.

Pet immunity

weight: up to 44 lb
height: up to 1.6 ft

False alarm prevention

SmartDetect

Software algorithm.

Temperature compensation

Effective motion detection at temperatures from 14°F to 104°F.

ttx
ttx

Photo verification

Photo by alarm

A built-in camera is activated if the detector is armed and motion is detected.

Photo resolution

640 × 480 px

320 × 240 px (by default)

160 × 120 px

Adjusted by a PRO or user with admin rights in Ajax apps.

HDR image

Improves the accuracy of detail in bright and dark scenes.

The feature is available for devices with the 15.59.35.14 firmware version or later1.

1 Contact your Ajax supplier or authorized partner to check the availability in your region.

IR backlight

For night photography and low light conditions.

Pictures in a series

from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px

from 1 to 3 images with a resolution of 640 × 480 px

Adjusted by a PRO or user with admin rights in Ajax apps.

Photo delivery time

up to 7 s — 160 × 120 px resolution

up to 9 s — 320 × 240 px resolution

up to 20 s — 640 × 480 px resolution

When the hub is connected via Ethernet or 4G and the Wings signal strength between a hub and device is 2–3 bars. Photo delivery time when the detector is connected via a range extender is available here.

Recommendations

It is recommended to install the detector at a height of 7.9 ft.

Device is designed for indoor use only.

Anti-sabotage protection

Tamper alarm

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

within 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

2 × CR123A

Pre-installed.

Calculated battery life

up to 4 years

Enclosure

Dimensions

5.31″ × 2.75″ × 2.36″

Weight

6 oz

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75%

Protection class

IP50

ttx
ttx

Colors

Black

White

Complete set

MotionCam Jeweller

SmartBracket mounting panel

Installation kit

2 × CR123A battery (pre-installed)

Quick start guide

Certification and compliance with standards

MotionCam Jeweller

MotionCam Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-2-2:2017

EN 50131-6:2017

EN 50131-5-3:2017

PD 6662:2017*

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

II

FCC ID

Certificate issued by MiCOM Labs

2AX5VMOTCAM-NA

2AX5VMOTCAMJ1

IC ID

Certificate issued by MiCOM Labs

26860-MOTCAMNA1

26860-MOTCAMJ1

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Standard for Intrusion-Detection Units

UL LLC

UL 639

ULC S306 (Canada)

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

PSTI UK

BSI Assurance UK Limited

Schedule 1

Additional information

Compliance with standards

Learn more

Warranty

24 months
