Tech specs

JunctionBox (118×59)

Mounting box for security IP camera

JunctionBox (118×59)

Key features

Cable gland

PG21

To protect the cable from damage, loss of insulation, and excessive bending during installation and operation.

Sealing ring

for 1 or 2 cables

To prevent water, dust, and other contaminants from entering the camera mounting box.

Mounting wire

to secure the lid during installation

The mounting wire prevents the lid from falling off the camera mounting box until it is secured with screws.

Grounding terminal

Grounding is carried out by a specialist in compliance with local electrical safety rules and regulations.

Product

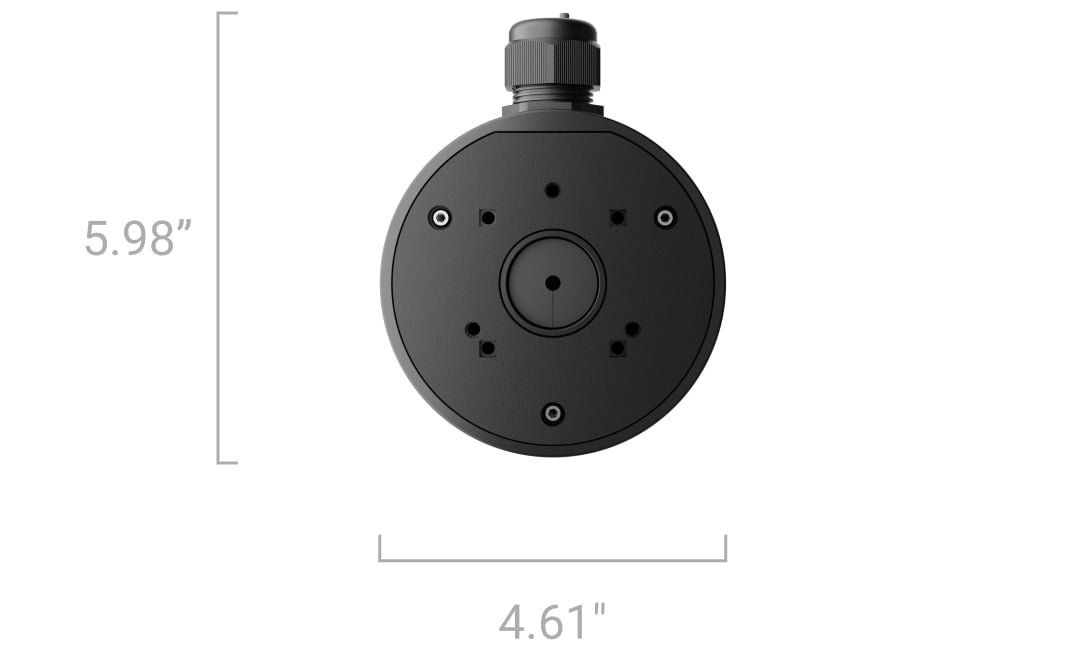

Dimensions

5.98″ × 4.61″ × 2.32″

Weight

16.51 oz

Material

aluminum ADC12

Operating temperature range

from −40 °F to 140 °F

Operating humidity

90%

ttx
ttx

Colors

Black

White

Complete set

JunctionBox (118×59)

Installation template

Installation kit

Quick start guide

Additional information

Compliance with standards

Learn more

Warranty

24 months

Learn more

User manual

Learn more
