United StatesTech specs
ExternalAntenna
External antenna for LTE and radio communication channels
Device compatibility
CheckDevices compatibility
Key features
Communication channels
2G/3G/LTE
Jeweller
Wings
Operating frequencies
698–960 MHz
1,710–2,690 MHz
Connector
SMA
Sabotage protection
External antenna breakage detection
An Ajax system is able to detect a breakage of an external antenna and notify users and the monitoring company.
Installation
- The antenna is connected to the hub’s communication channels and goes outside through holes in the hub’s casing.
- The antenna is attached to the surface using a pre-applied double-sided adhesive tape.
Enclosure

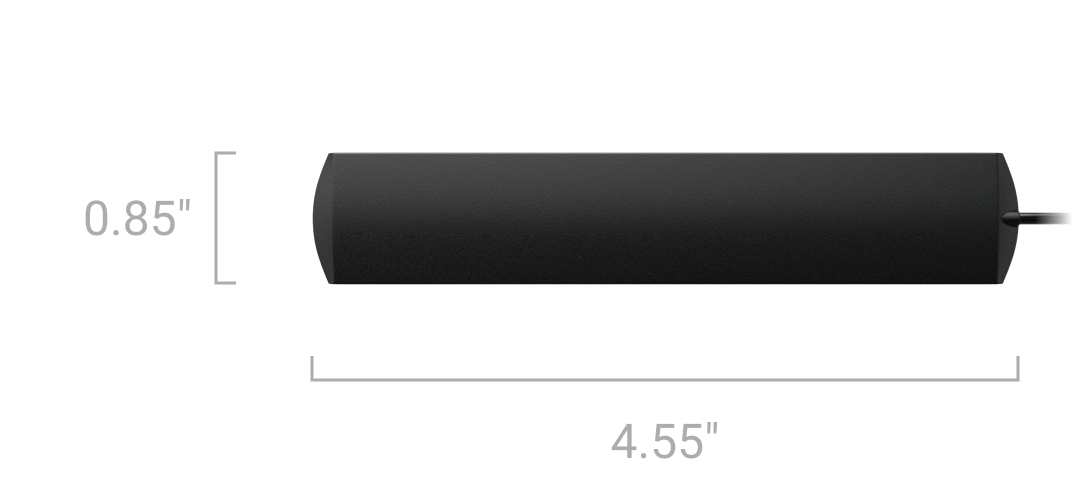

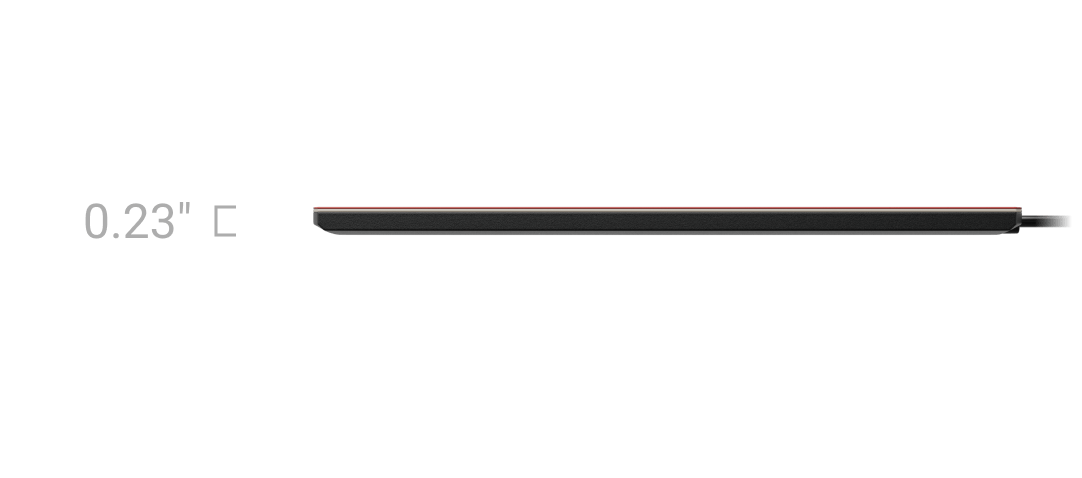

Dimensions with
4.55″ × 0.85″ × 0.23″
Cable length
9.84″
Weight
1.45 oz
Operating temperature range
from –40 °F to 185 °F
Operating humidity
up to 95%
Colors
Black
Complete set
ExternalAntenna
Quick start guide
Certification and compliance with standards
ExternalAntenna
ExternalAntenna
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
