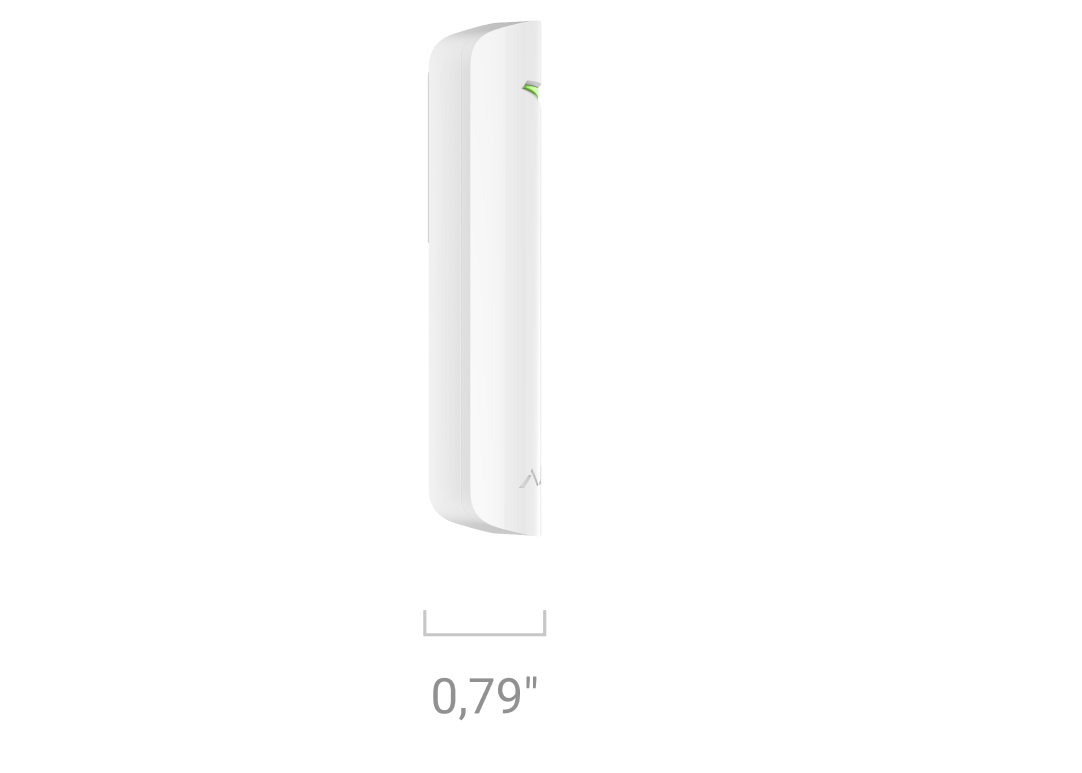

DoorProtect Plus Jeweller

Jeweller communication technology

Proprietary wireless technology to transmit alarms and events.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote configuration via the Ajax apps.

Radio frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio communication range

up to 3,900 ft

Between the detector and a hub (or radio signal range extender) in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

To prevent radio interference and radio signal interception.

Tamper alarm

Notifications of attempts to tear off the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Battery

1 × CR123A

Pre-installed.

Type

type C

Calculated battery life

up to 5 years

Device’s nominal operating voltage

3 V⎓

Quiescent device’s current consumption at nominal voltage

11.8 μA

Maximum device’s current consumption at nominal voltage

24 mA

Full battery capacity

1,600 mAh

Low battery voltage

2.5 V⎓

Low battery recovery voltage

2.7 V⎓

End-of-life battery voltage

2.1 V⎓

Device is switched off.

End-of-life battery capacity

300 mAh

Manufacturer

Huiderui

UL listed.

DoorProtect Plus Jeweller

SmartBracket mounting panel

CR123A battery (pre-installed)

Big magnet

Small magnet

Terminal to connect a third-party detector

Installation kit

Quick start guide
