Case D (430)

Number of devices

up to 8

To install a different number of devices, select a model with the appropriate number of slots:

• Case A (106);
• Case B (175);
• Case C (260).

Plastic holders

Module Holder (type A)

Place the required number of Module Holder (type A) into the casing to accommodate Superior LineSplit Fibra, Superior LineProtect Fibra, and MultiRelay Fibra modules. The Case D (430) complete set includes a total of 4 holders. If you need more, additional holders can be purchased separately.

Module Holder (type B)

Place two Module Holder (type B) into the casing to accommodate the Hub Hybrid (4G) (without casing) and MultiTransmitter Fibra (without casing) boards. Holders are sold separately.

Plastic rails

to secure Superior LineSupply Fibra

Slide Superior LineSupply Fibra along the rails to remove it from the casing. No holders are required to secure the module.

Cable fasteners

to hold the cables together with ties

Bubble level

To check the inclination angle of the casing during installation.

Recesses for drilling

Ø32 mm, Ø40 mm, or Ø63 mm

Wider holes

To ensure that the casing is installed correctly, even if there are errors during installation.

Holders for batteries

up to 18 Ah

At the bottom of the casing.

Holding stripe

for the battery

To prevent accidental dislodgement of the battery.

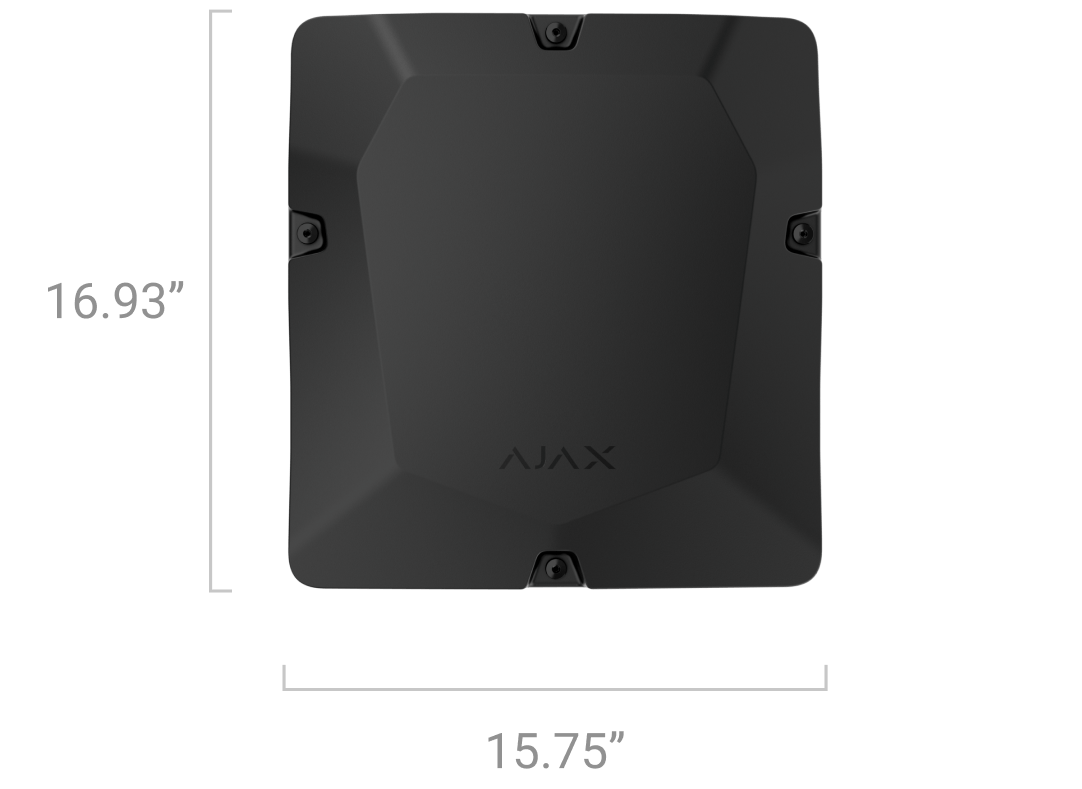

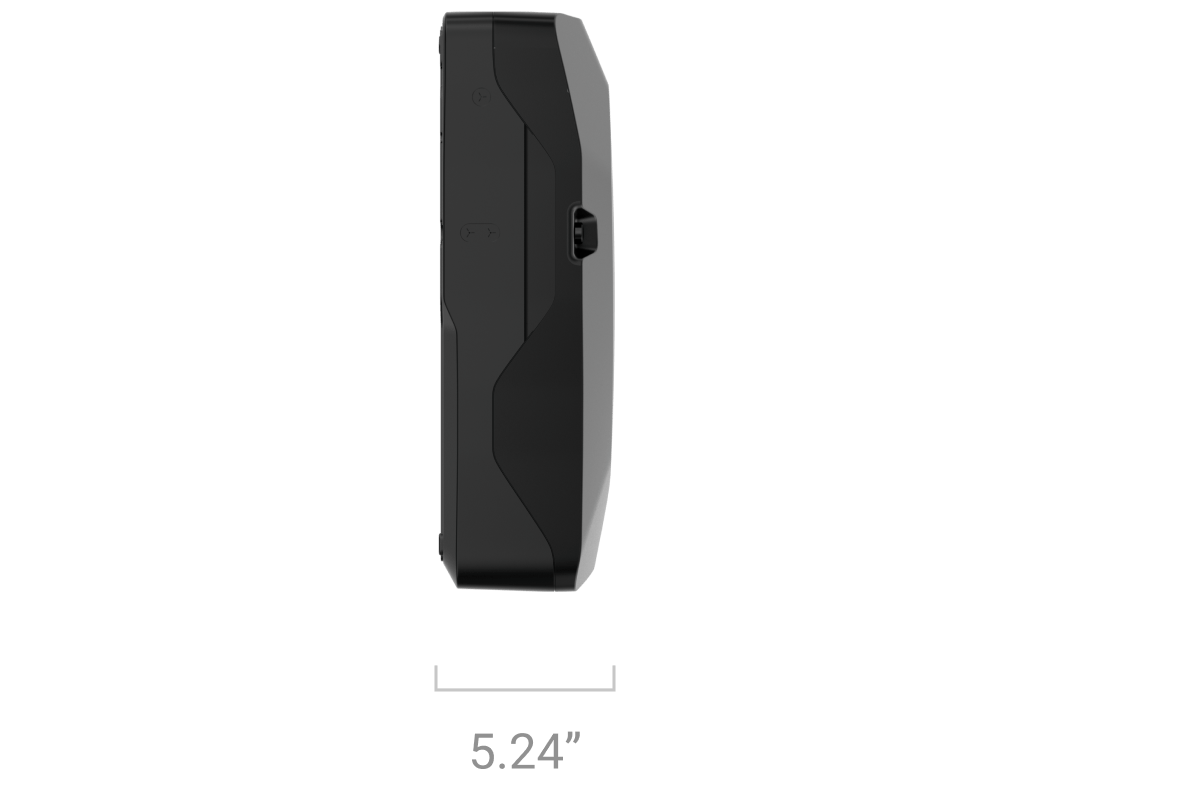

Dimensions

16.93″ × 15.75″ × 5.24″

Weight of the black Case

7.37 lb

Weight of the white Case

7.45 lb

Operating temperature range

from 14 °F to 104 °F

Operating humidity

up to 75%

Black

White
