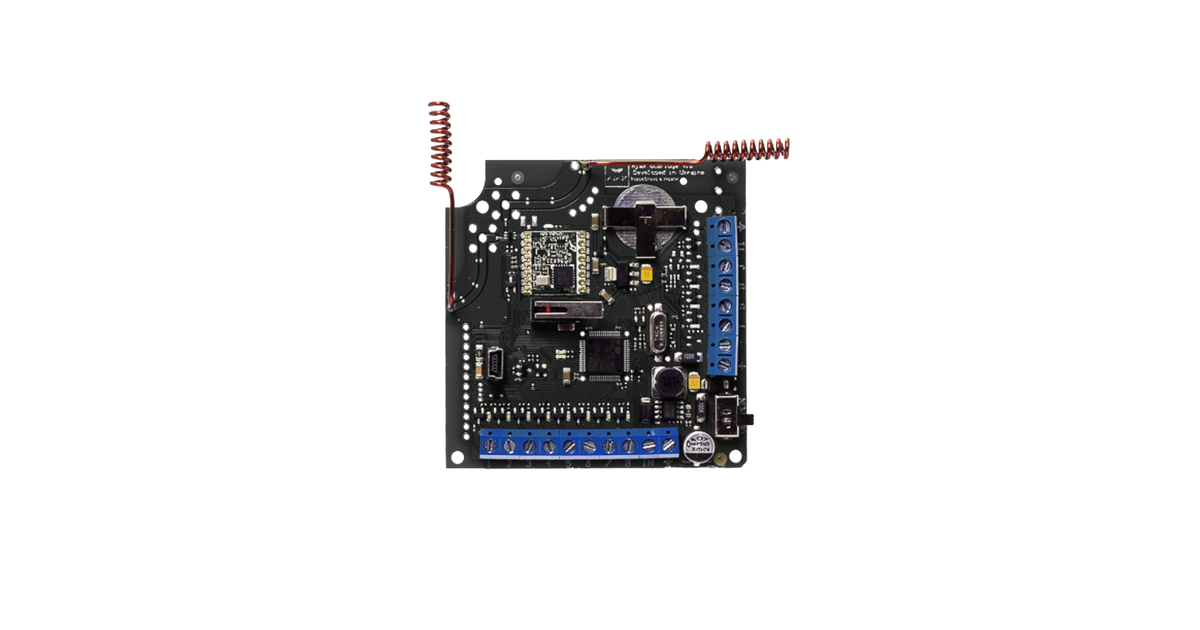

ocBridge Plus
Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas.
-
![]()
Authentication to prevent forgery -
![]()
Jamming detection and communication channels encryption -
![]()
Two-way communication
Sends triggering using dry contacts
Can operate in pulse and bistable modes
Is adjusted via configurator for PC
Principle of operation
When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm.
Features
The device allows setting up the detector, performing radio communication tests and detection areas tests using PC.

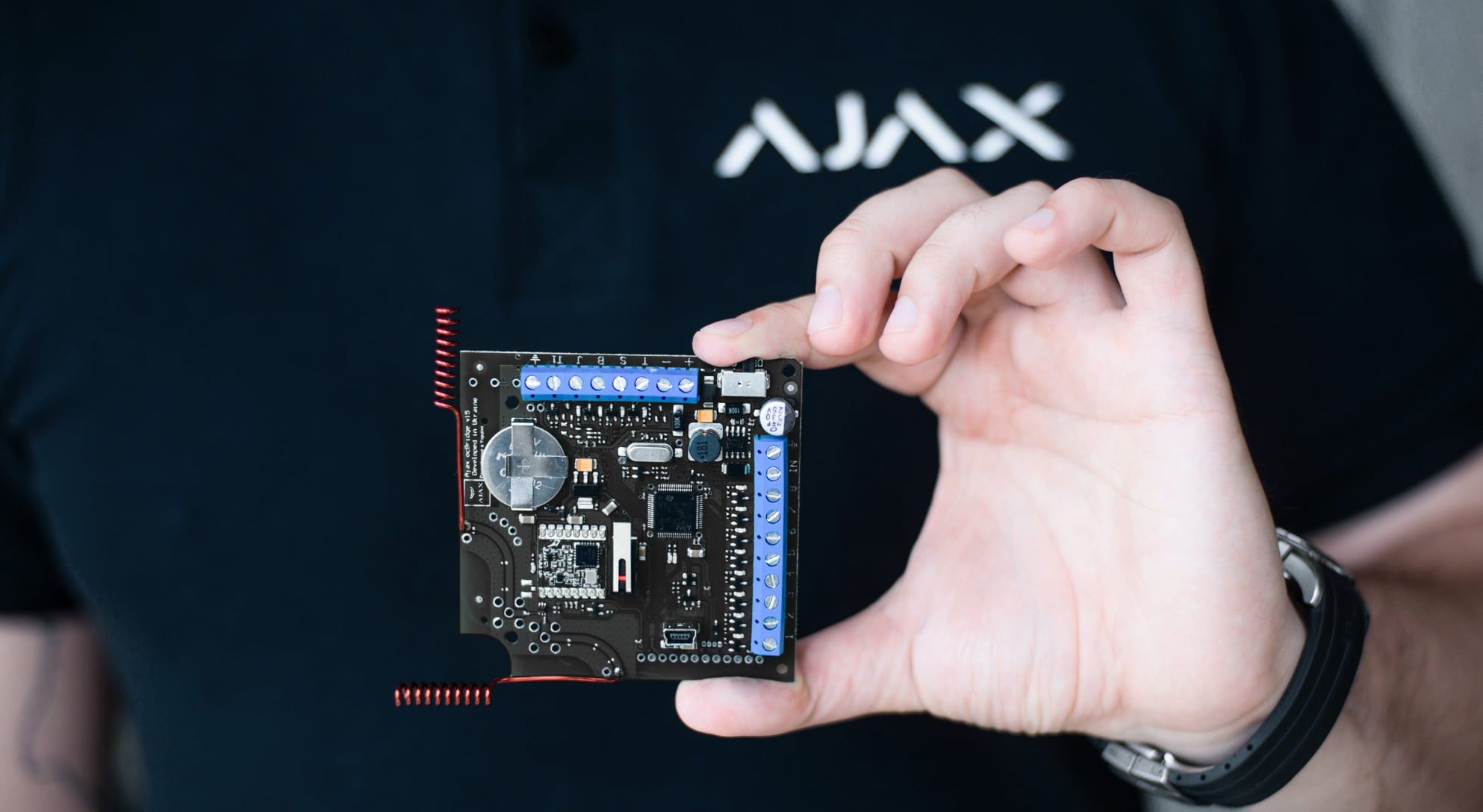

Installation and set up
The device is installed in the body of the wired central unit, in sealed cases or plastic boxes.
Principle of operation
When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm.
Features
The device allows setting up the detector, performing radio communication tests and detection areas tests using PC.
Installation and set up
The device is installed in the body of the wired central unit, in sealed cases or plastic boxes.
Tech specs
Classification
Receiver of wireless detectors
Installation method
Indoors
Compatibility
Wired and hybrid security systems
Number of security areas
8
Number of service areas
4
Loops
NO/NC, EOL, 2EOL
Maximum number of detectors
99
Alarm signal delivery time
0.15 s
Power supply
Terminals +/ground
Power supply voltage
8 - 14 V DC
miniUSB — 5 V (only for set up)
miniUSB — 5 V (only for set up)
Jeweller radio technology
Communication range with detectors — up to 2,000 m in an open space
Two-way communication with detectors
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller
Two-way communication with detectors
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller
Capability of external antenna connection
Yes
Software update feature
Yes
Operating temperature range
From –10°С to +40°С
Permissible humidity
Up to 90%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper
Jamming detection
Tamper
Setting up and testing
Via configurator for PC
Download
Download
Current firmware version
5.57.1.5
Update the ocBridge Plus firmware via the configurator if you cannot connect compatible Ajax devices to the integration module.
Update the ocBridge Plus firmware via the configurator if you cannot connect compatible Ajax devices to the integration module.
Interface
miniUSB
Dimensions
95 × 92 × 18 mm
Weight
139 g
Warranty
Replacement and repair within 24 months of the date of sale
Complete set
ocBridge Plus
Installation kit
User's guide
Installation kit
User's guide
