MotionCam Outdoor
Wireless outdoor motion detector with a photo camera to verify alarms
Lightning-fast alarms. Verified.
MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.
1
2
3
MotionCam Outdoor requires Hub 2 or Hub 2 Plus for operation
Jeweller
Outdoor surveillance and alarm confirmation
MotionCam Outdoor PhOD
MotionCam Outdoor is also available with Photo on Demand feature. Such detectors take photos when they detect an intrusion, as well as at the user’s request in the Ajax app
Don't miss a thing
Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.
- HDR camera
- IR backlight
- Series of 2–5 photos
CMS software supporting visual alarms verification
-
Horus
![Horus]()
-
Manitou
![Manitou]()
-
SBN
![SBN]()
-
Sentinel
![Sentinel]()
-
WBB
![WBB]()
Intelligent false alarm filter
MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.
Correlation analysis
Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is activated.

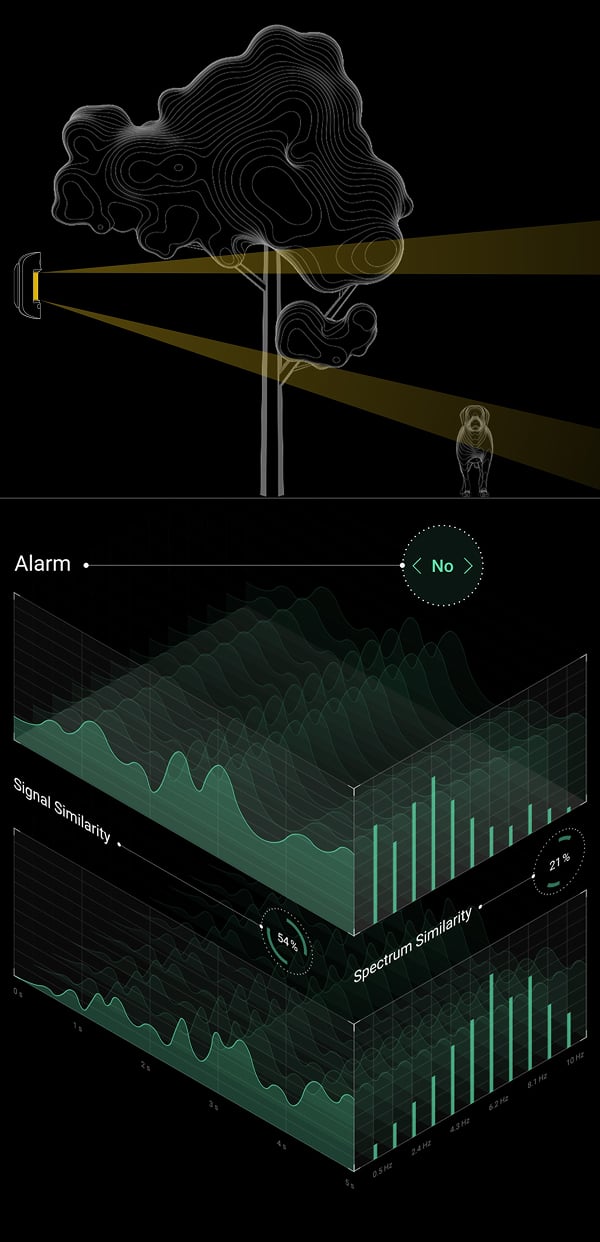

Spectral analysis
When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.
EN 50131

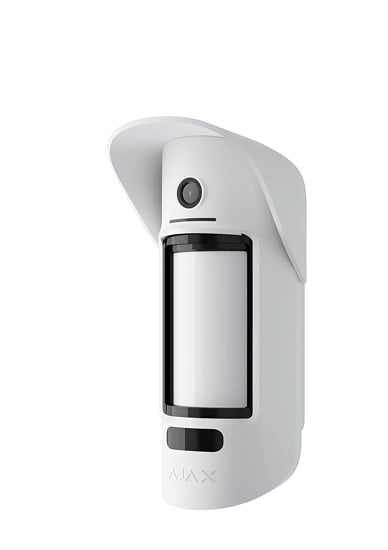

Multilevel anti-sabotage protection
MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors that react to hindering, covering and painting the lens.
It will take the hub less than a minute1 to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.-
Anti-masking system
-
Notifications about detachment
-
Configurable detector ping interval
Effective security in any weather
MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.
-
Efficiency in heat and cold
-
IP55 enclosure protection
-
Bundled hood to protect from rain and snow
-
Efficiency in heat and cold
-
IP55 enclosure protection
-
Bundled hood to protect from rain and snow
Jeweller
Wings
Uncompromising communication reliability
MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweler and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweler transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds2.
The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts.
- Two-way communication at a distance of up to 1,700 meters
-
Photo delivery in less than
9 seconds -
Up to 3 years
of battery life
Less manual labor. More settings in the app.
The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.
Adding to the security system via QR code
Mounting using SmartBracket without disassembling the body
Configuring in the app
Professional installation
Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.
Tech specs
Classification
Electro-optical radio channel security detector
Type of detector
Wireless
Installation method
Outdoors / indoors
Recommended installation height
0.8 – 1.3 m
Compatibility
Sensing element
2 × PIR sensor
Motion detection distance
Adjustable, from 3 to 15 m
Pet immunity
Animals up to 80 cm tall
Sensitivity
Adjustable, 3 levels
Motion detector’s viewing angle
Horizontal — 90°
Vertical — 80°
Vertical — 80°
Camera’s angle
Horizontal — 105°
Vertical — 50°
Vertical — 50°
TV distortion (EBU standard)
Barrel, –17%
Photo in case of alarm
Photo resolution:
Shooting series up to 5 photos
Learn more
- 320 × 176 pixels (by default)
- 640 × 352 pixels
Shooting series up to 5 photos
Learn more
Infrared light for shooting in the dark
Available
Power supply
4 × CR123A batteries
Supply voltage
6 V
Battery life
Up to 3 years (up to 2.5 years if “Delay when entering” setting is activated)
Calculate battery life
Calculate battery life
Jeweller radio technology
Communication range with a hub — up to 1,700 m in an open space
Two-way communication between hub and device
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption with a dynamic key
Detector polling period — 12–300 s
Frequency hopping
Learn more about Jeweller
Two-way communication between hub and device
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption with a dynamic key
Detector polling period — 12–300 s
Frequency hopping
Learn more about Jeweller
Alarm delivery time
0.15 s
Wings radio technology
Transmission of a series of photos
Photo delivery time with a default settings: up to 9 seconds
Photo delivery time with a default settings: up to 9 seconds
Temperature sensor
Available
Operating temperature range
From –25°С to +60°С
Operating humidity
Up to 95%
Protection class
IP55
Anti-sabotage
Anti-masking
Protection against forgery
Jamming detection
Tamper-resistant
Protection against forgery
Jamming detection
Tamper-resistant
Remote configuration and testing
Available
CMS compatibility
Dimensions
206 × 108 × 93 mm
Weight
470 g
Warranty
Complete set
MotionCam Outdoor motion detector
SmartBracket mounting panel
Hood visor
4 × CR123A batteries (pre-installed)
Installation kit
User’s guide
SmartBracket mounting panel
Hood visor
4 × CR123A batteries (pre-installed)
Installation kit
User’s guide
1
With the Hub — Detector polling period of 12 seconds
2
Photo delivery time depends on image resolution, selected in device settings
