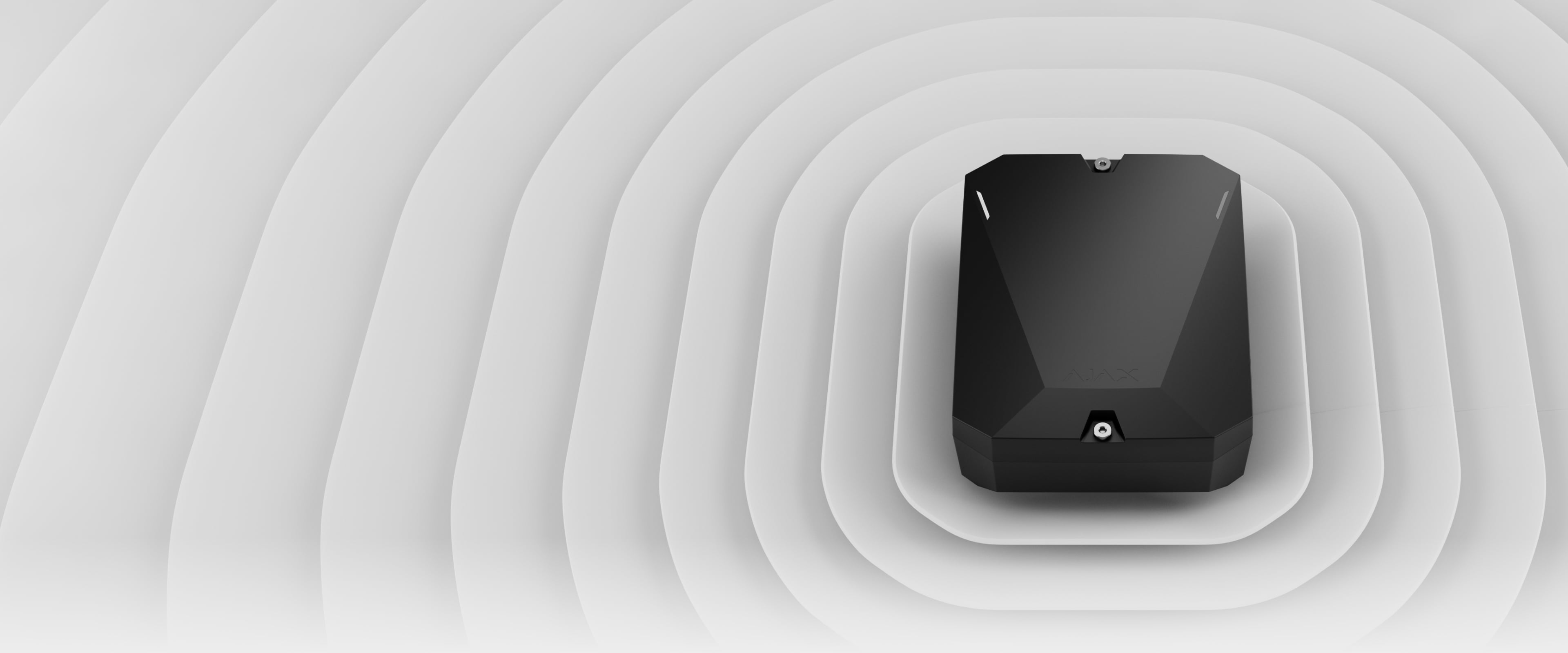

Hub BP Jeweller
Wireless battery-powered control panel. Supports photo verification. Connectable via two SIM cards (2G/3G/LTE).
Product is not available in your region
Off-grid security made simple
Hub BP Jeweller is an innovative security control panel designed to secure properties without a constant power supply. It's ideal for protecting vacant houses, construction sites, and temporarily unused offices. Unlike other control panels, Hub BP is powered by internal and external batteries, ensuring long-term autonomous operation. Hub supports event photo verification and features dual SIM connectivity, guaranteeing reliable communication. Thanks to its battery power saver feature, the device optimizes battery usage, providing continuous protection for extended periods.

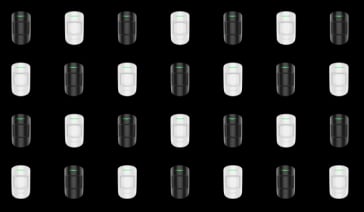

100 wireless Ajax devices
can be added to a hub
Remote control and configuration
Battery powered
Internal
up to 17 months in Battery power saver mode
External
up to 1,5 years on external third-party Zinc-air 12V/600Ah battery in full function mode
Up to 6,500 ft
communication range with wireless Ajax devices1
Alarm photo verification in 9 seconds2
9 groups
Flexible security management of the facility
2 independent communication channels
2G/3G/LTE
2G/3G/LTE
External antennas
for the signal strength of сellular, Jeweller, and Wings communication channels
Jeweller radio communication
Power adjustment

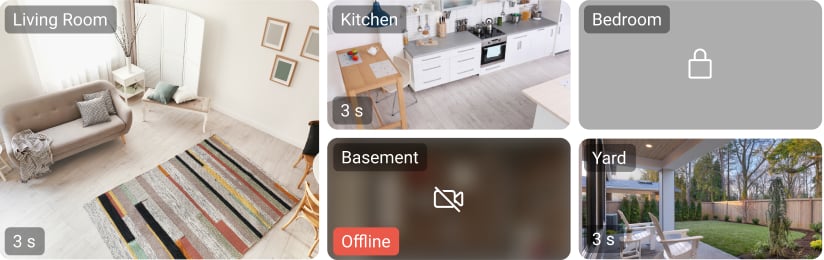

Video surveillance
with Ajax and third-party devices
Multi-tier account security
2FA, session control, and password/biometric login
Stable system operation
with OS Malevich

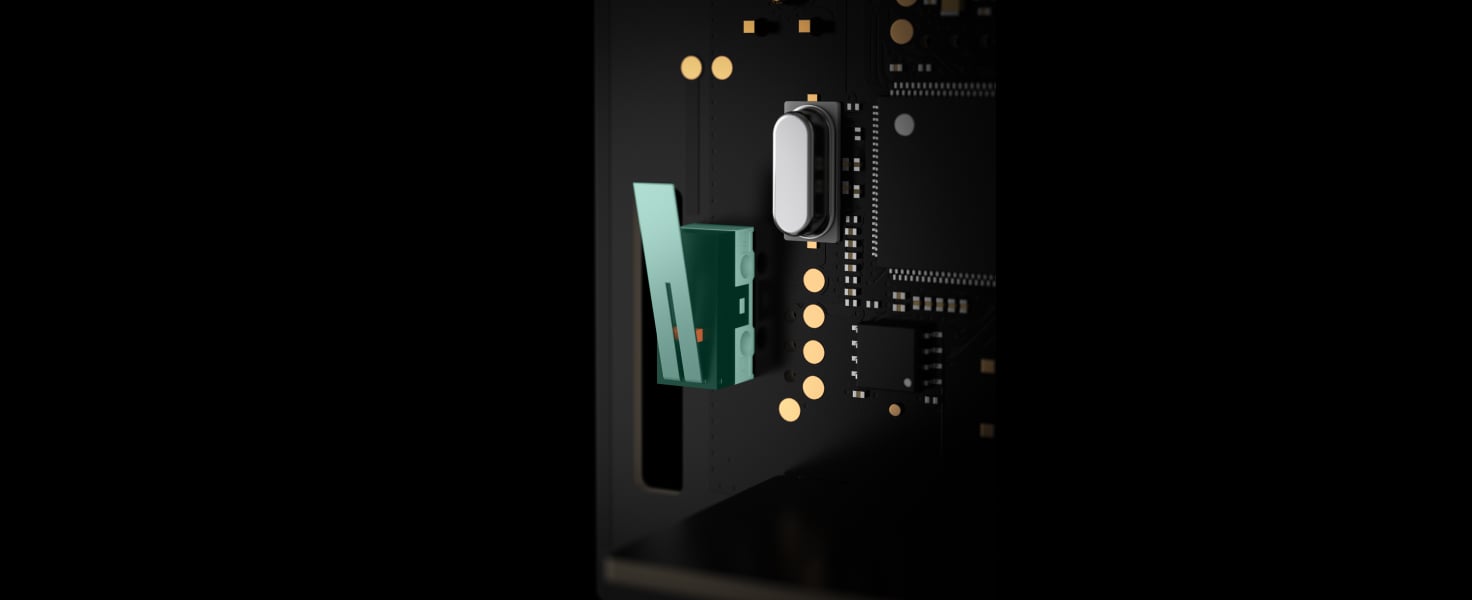

Enclosure protection
with tamper alarm
2 colors
of matte enclosure
Informative push notifications
Critical
Ajax
Office: Opening detected, DoorProtect in Hall
Critical
Ajax
Home: Motion detected, MotionProtect in Main room
Effortless installation
no need to disassemble the enclosure
In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Wherever there is a need for protection
Vacant property

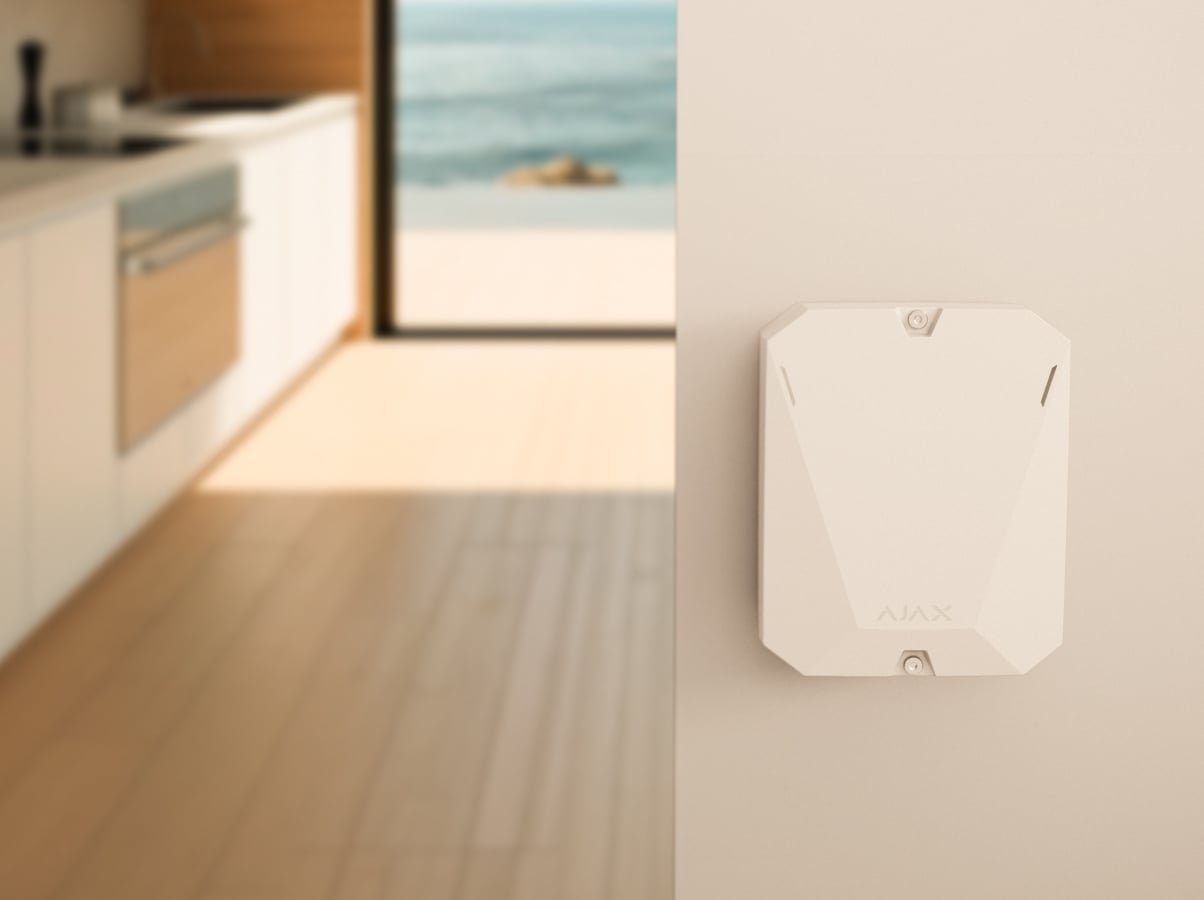

Cottage

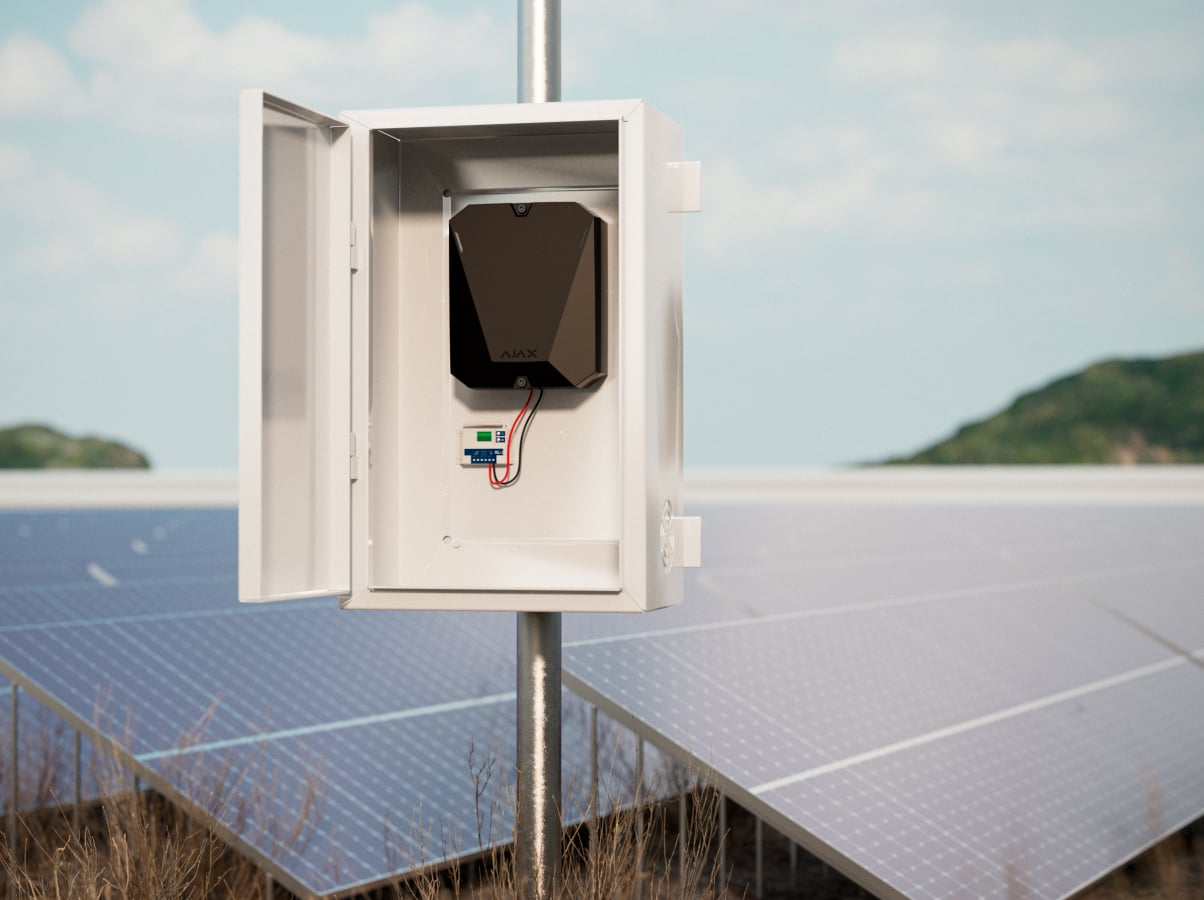

Solar power station

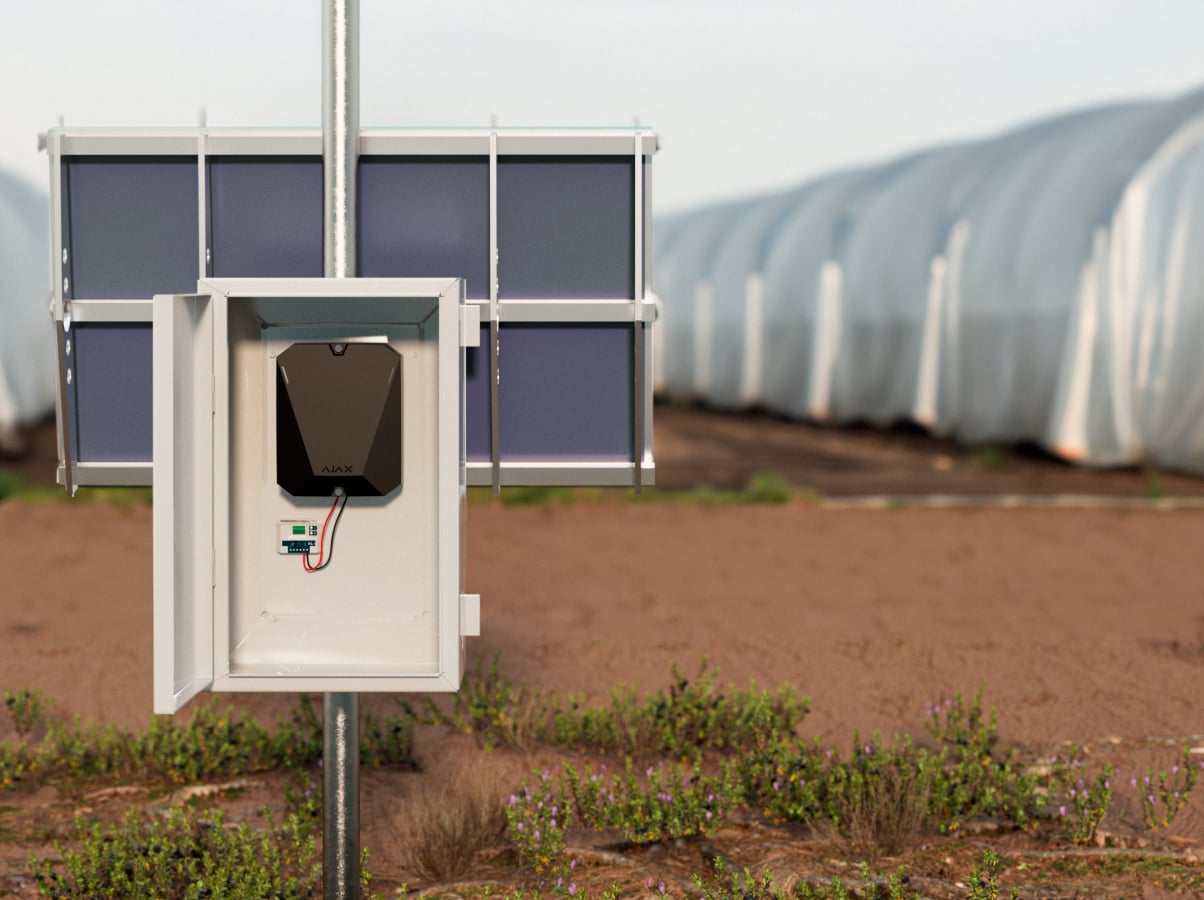

Farm

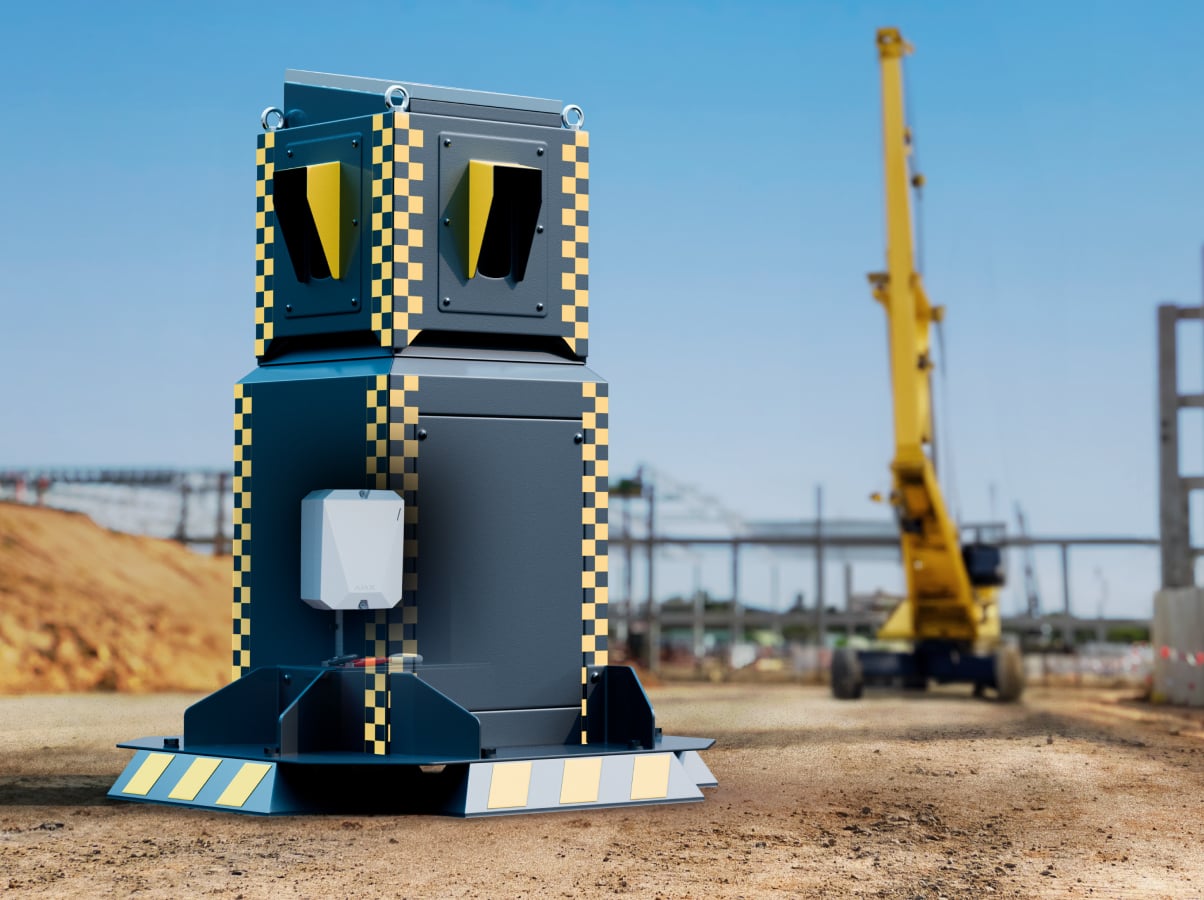

Security pod

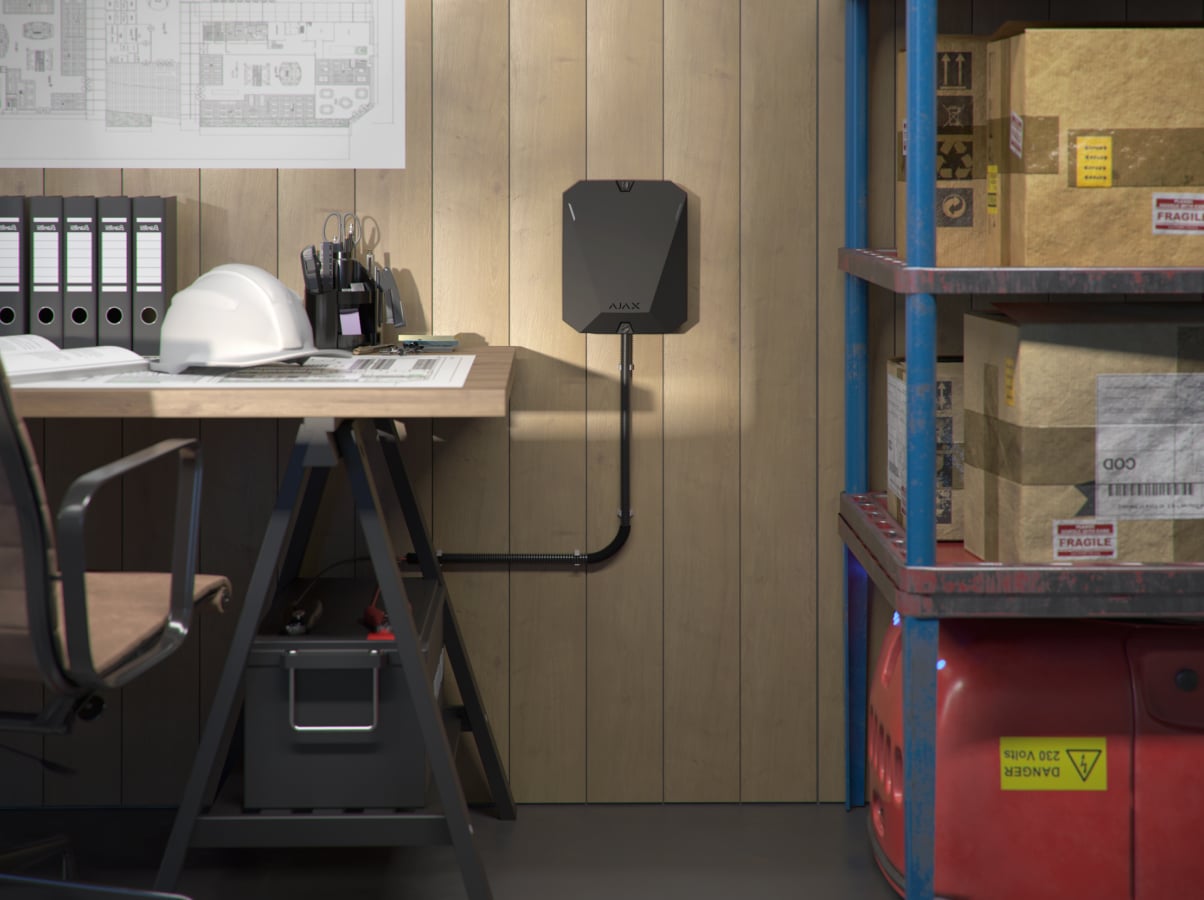

Construction site

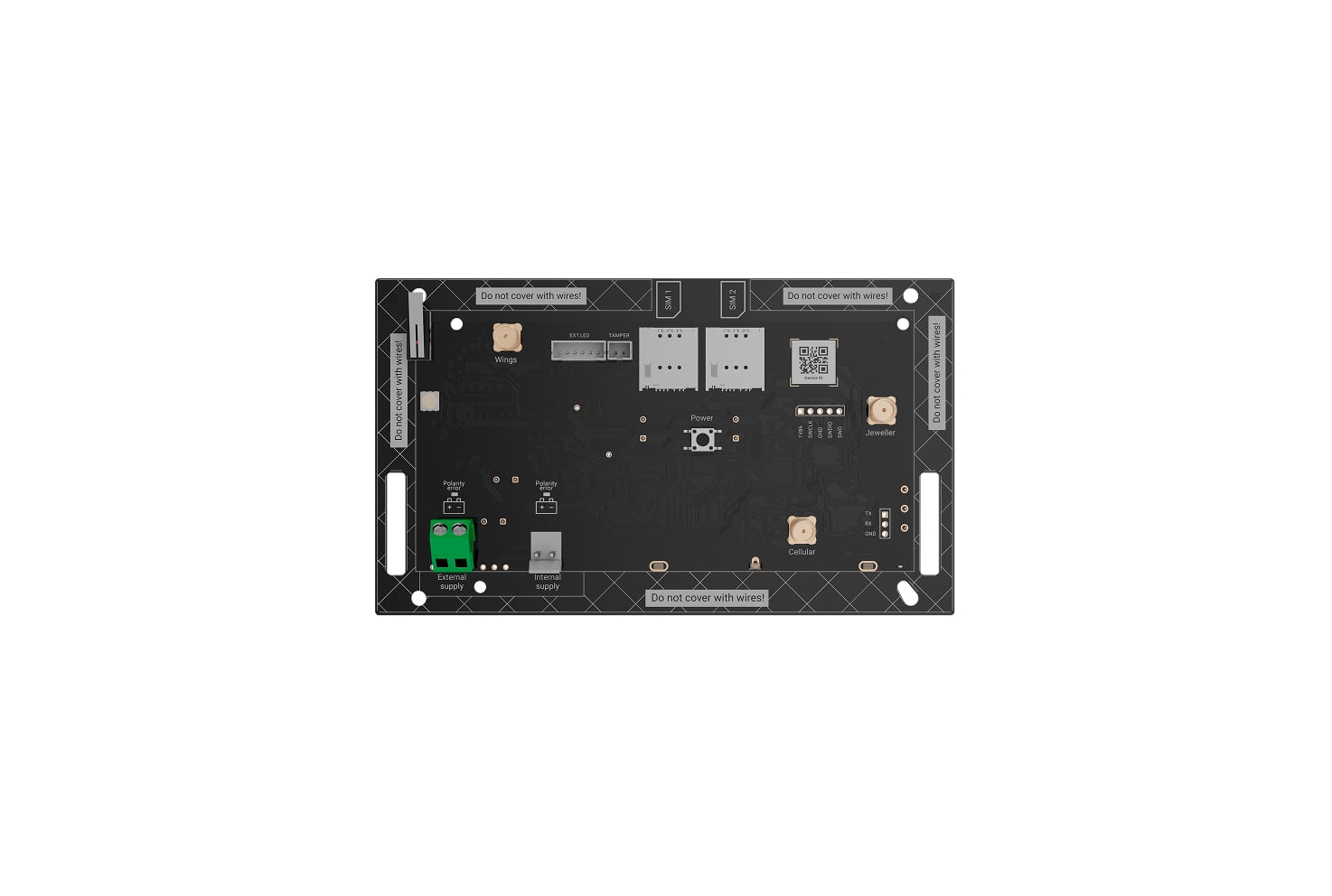

Discover future-proof hardware
External power source terminal connector
Internal battery connector
Jeweller /Wings/GSM antennas
Slots for micro SIM cards
External antenna connector for cellular communication channel
External antenna connector for Wings communication channel
External antenna connector for Jeweller communication channel
LED indicator
Tamper
Holders for internal battery
Perforated parts of the enclosure for leading out the wires

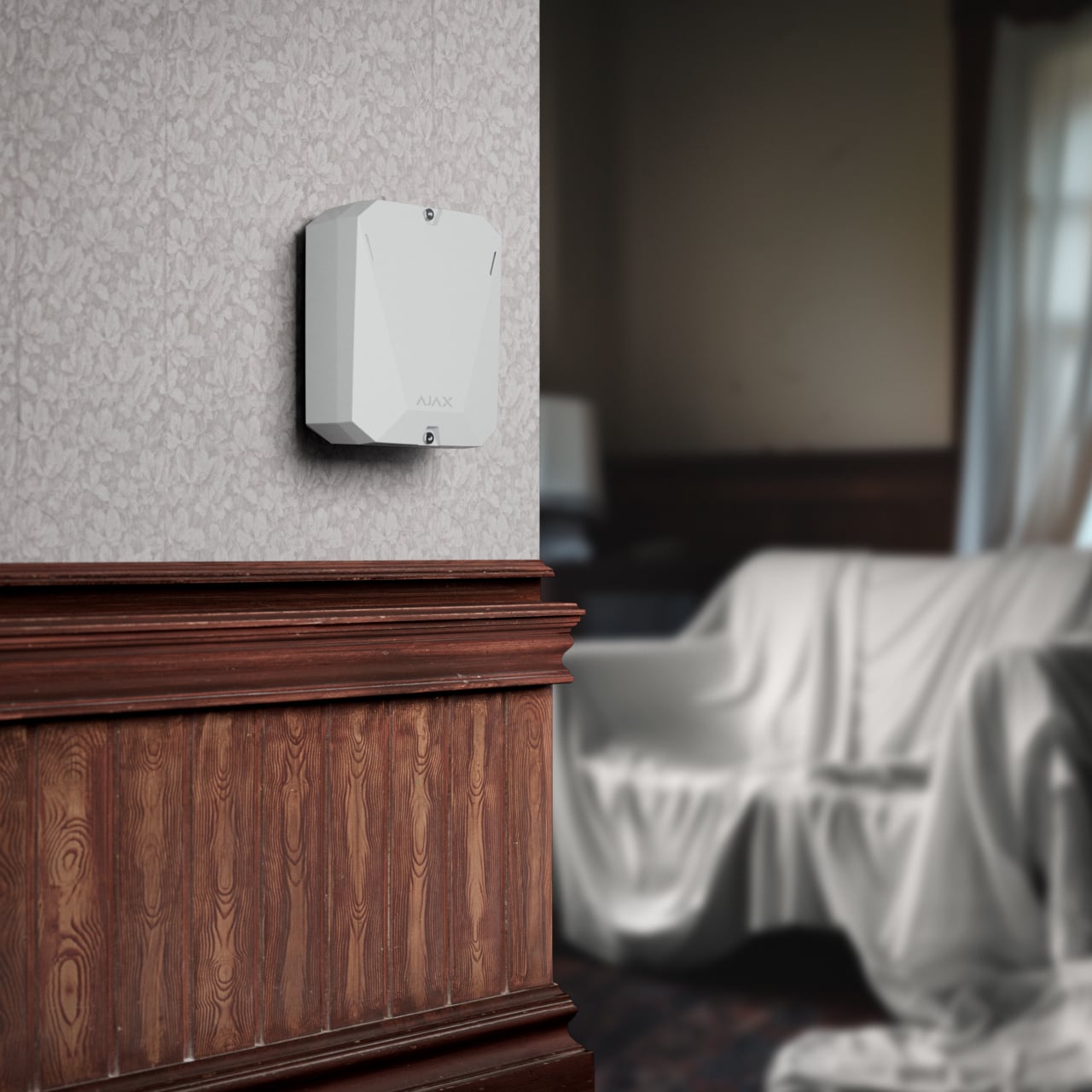

Impressive autonomy for challenging locations
Hub BP Jeweller operates on internal and external batteries or alternative supplies like solar panels, ensuring exceptional autonomy. This feature makes it ideal for sites where it is impossible to install devices powered by the mains. With its battery power saver feature, the hub can function for months, reducing the need for frequent maintenance visits. This innovation protects remote or off-grid locations, expanding installation possibilities for security professionals.
Batteries are not included in the Hub BP Jeweller complete set. For optimal performance and compatibility, please refer to the recommended battery specifications or consult with your Ajax representative for suitable power solutions.
Advanced battery power saver
Hub BP Jeweller's advanced feature, applicable to both internal and external batteries, significantly extends operational life. Battery power saver minimizes maintenance visits and reduces costs, particularly for remote or hard-to-access facilities, enhancing overall system efficiency and reliability.
Batteries supplied by Ajax
Name | Type | Quantity in a pack | Voltage | Capacity | Months of operation in Battery power saver mode3 | Availability |
|---|---|---|---|---|---|---|
Internal battery NB (7.2V/95Ah) | Non-rechargeable battery | 10 | 7.2V | 95Ah | 17 | Q4 2024 |
Internal battery RB (6.4V/27Ah) | Rechargeable battery | 36 | 6.4V | 27Ah | 4 | Q1 2025 |
Internal battery NB (7.2V/190Ah) | Non-rechargeable battery | 20 | 7.2V | 190Ah | 42 | Q1 2025 |
Internal battery RB (6.4V/78Ah) | Rechargeable battery | 104 | 6.4V | 78Ah | 15 | Q1 2025 |
Batteries from third-party suppliers
Name | Type | Voltage | Capacity | Months of operation in Battery power saver mode3 |
|---|---|---|---|---|
Internal third-party battery | Rechargeable battery | 12V | 7Ah | 2 |
External third-party battery | Non-rechargeable | 12V | 600Ah | 72 |
Complete set of business tools
App data is protected by encryption and automatic backups. With cloud synchronization, starting seamlessly on a new smartphone or computer takes just a few minutes — simply install the app and log into your account.
Ajax PRO: Tool for Engineers
Add devices to the hub and configure them remotely or on-site.

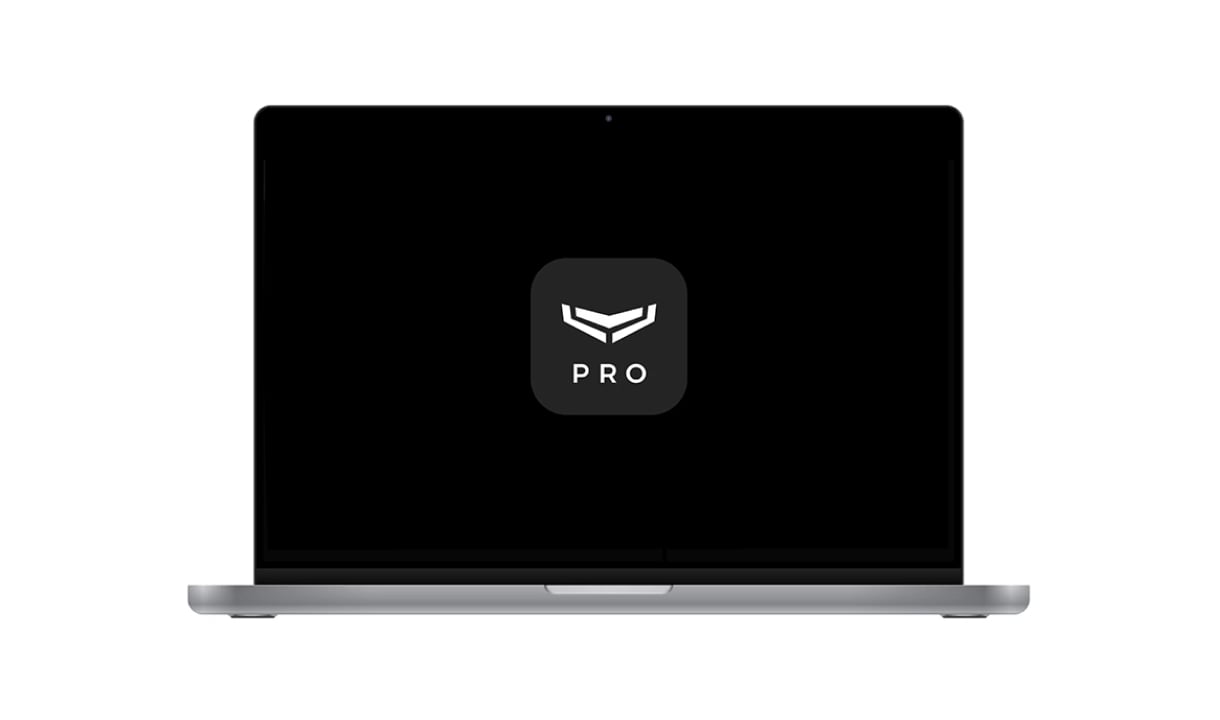

Ajax PRO Desktop
Administer the security system and monitor alarms with visual verification.
Alarm photo verification in 9 seconds

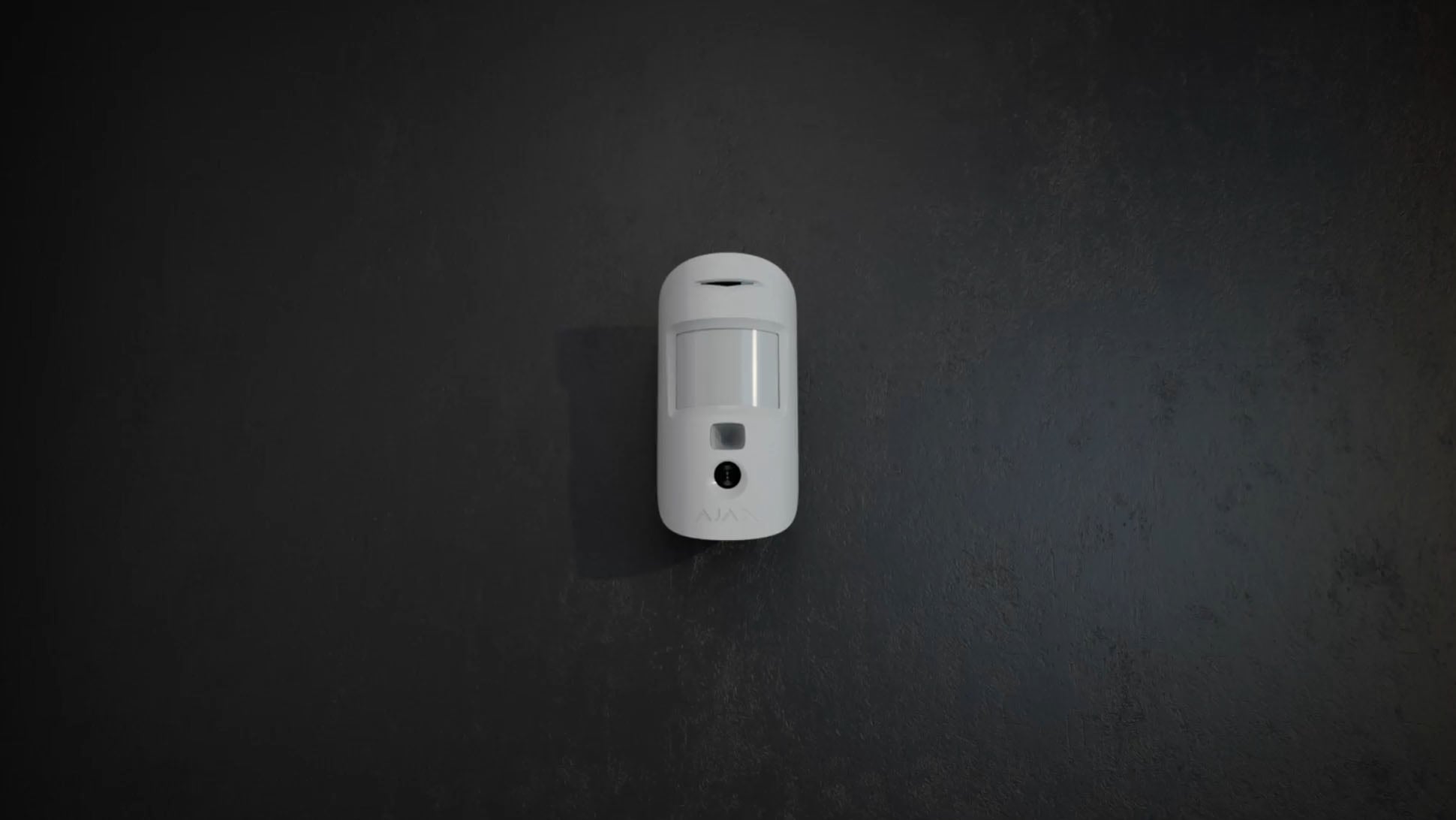

Hub BP works with MotionCam and MotionCam Outdoor detectors. When detectors are triggered, they take a series of photos. It helps to evaluate the situation at the facility. Visual verification provides an instant situation assessment, relieving user anxiety and preventing false patrol dispatches for security companies.
Motion detected
Alarm raised
Evidence captured
Always connected via cellular networks
Communication with the outside world is critical for the security system’s control panel. Its reliability and stability guarantee timely alarm transmission to the security company and users.

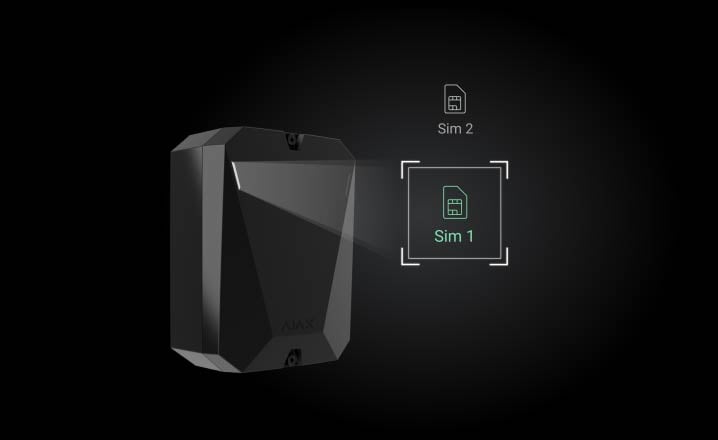

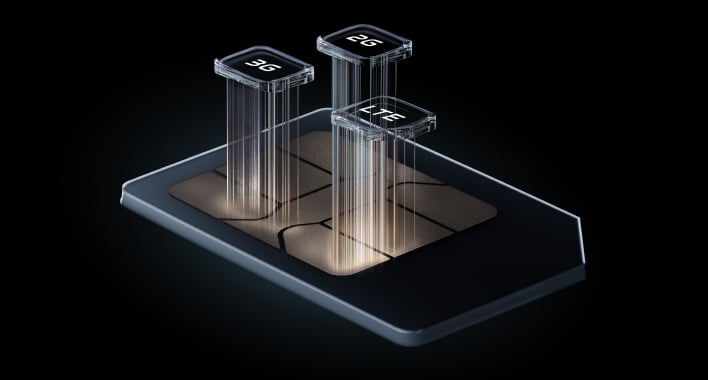

Hub BP can connect to internet service providers via two SIM cards supporting 2G, 3G, and LTE networks. Different mobile operators can be used for each SIM card to enhance fault tolerance, providing stable connectivity. The automatic switching between channels takes seconds, guaranteeing uninterrupted operation.
Two communication channels
Instant channel switch
Real-time status updates
Jeweller
Unique wireless technologies

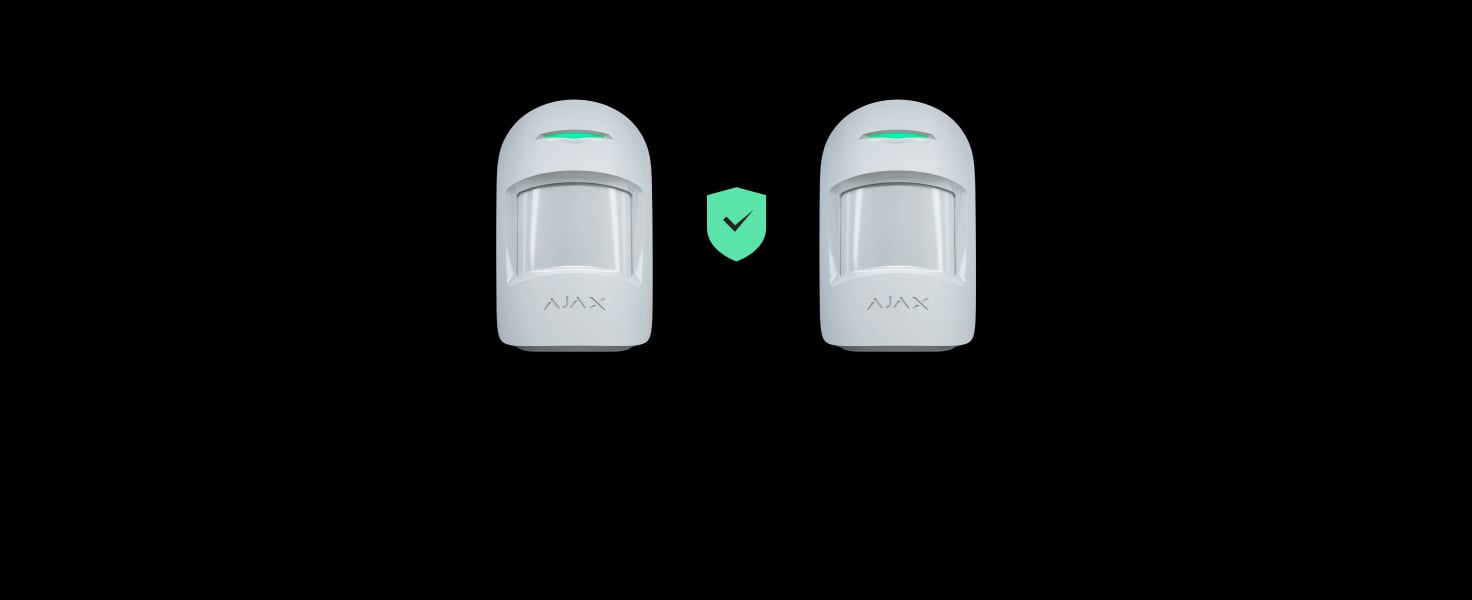

Hub BP supports up to three external antennas and uses Jeweller and Wings proprietary radio protocols for reliable communication. Jeweller is responsible for the transmission of commands, events, and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication provides block cipher encryption and device authentication at each communication session between the hub and connected devices to prevent sabotage, spoofing, or data theft.
Up to 6,500 ft distance of radio communication1 between wireless devices and a hub
Encrypted two-way communication

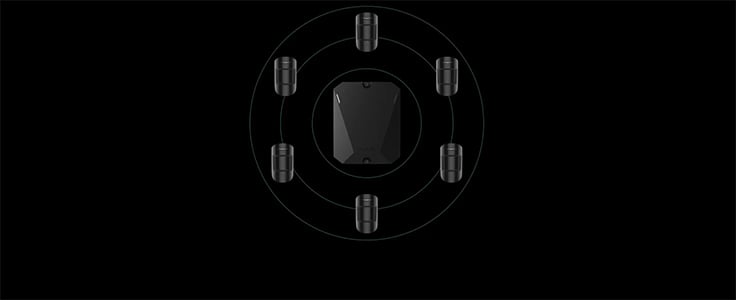

Notifications about jamming and connection loss
9 seconds2 to deliver the first photo
Reliable communication through any barrier

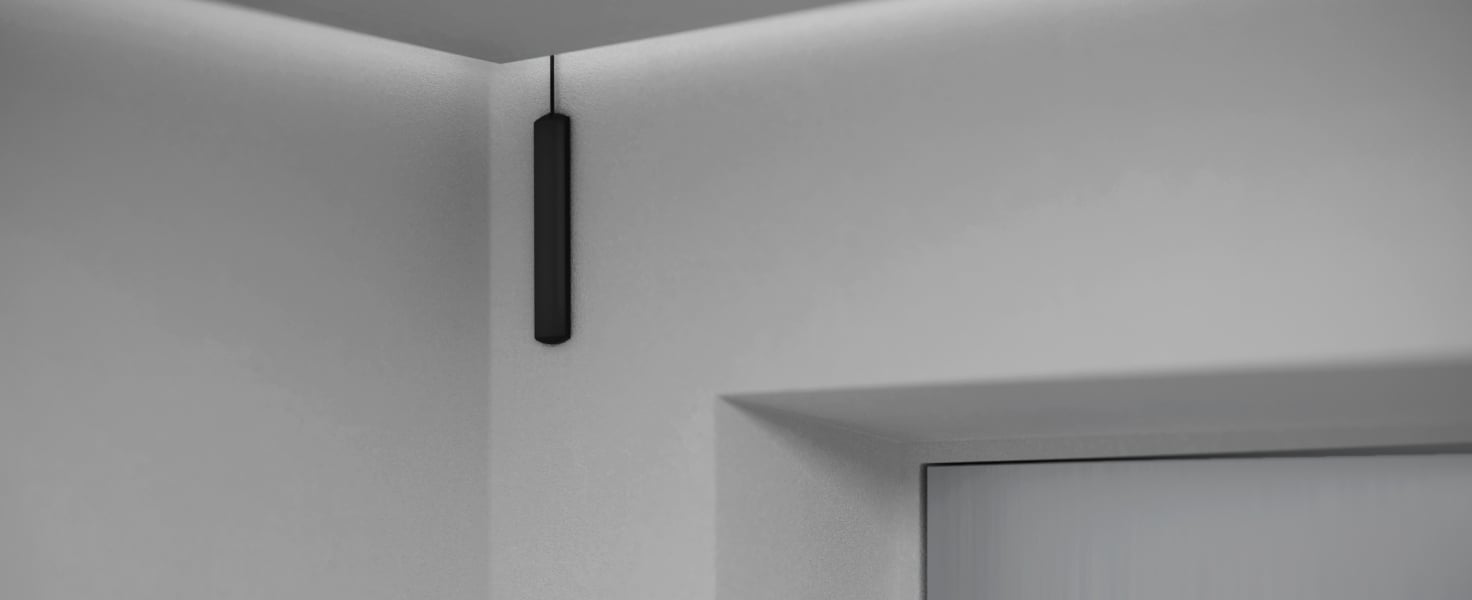

Hub BP Jeweller can be equipped with an ExternalAntenna to ensure reliable connectivity. Whether the facility is in an open field, or a metal-enclosed vault, this solution helps Hub BP Jeweller overcome signal interference. It enhances the communication between the hub and connected devices, as well as with the outside world. The 3-meter cable allows for optimal antenna placement, boosting Jeweller, Wings, and cellular communication channels. In the event of antenna breaking or damage, the system promptly notifies users and the security company.
For сellular, Jeweller, and Wings communication channels
External antenna breakage detection
Cable length 9 ft
For facilities of different sizes
Hub BP Jeweller is a versatile security solution suitable for a range of facilities, from private houses to huge construction sites, offering up to 6,500 ft of radio communication range. The Ajax radio signal range extender expands coverage, ensuring a stable connection for devices located on different floors or at a long distance. It can be installed with a power supply unit (PSU) if the site is off-grid. The hub efficiently manages up to 100 devices without lags, accommodating 50 users and supporting 9 security groups for advanced access control. Whether for homes or businesses, Hub BP Jeweller is well-equipped to ensure comprehensive security.
9
security groups
50
users
100
devices
Up to 6,500 ft
of communication range1
Automated security
Hub BP Jeweller allows the creation of 32 automation scenarios and expands the system’s capabilities. This flexibility enables PRO users to set up various security configurations to meet their specific requirements. The hub can arm and disarm the entire system or a group by schedule. Take photos by schedule for constant monitoring of the facility and shut off the water in case of a leak. Control lights, electric locks, roller shutters, and garage doors — by arming/disarming, button press, or a detector’s alarm.
Home activity simulation
If a property is left unattended for an extended period, an installer can set up a schedule using Ajax Relay to simulate home activity with battery-powered lights. This setup makes the house appear occupied, reducing the risk of attracting potential intruders.
Photo surveillance
MotionCam (PhOD) Jeweller and MotionCam Outdoor (PhOD) Jeweller can take photos by schedule. The detectors need just a few seconds to show the actual situation on the scene for constant facility monitoring.
Automatic water shut-off
An Ajax hub can manage water leak detectors and shutoff valves. Upon detecting a water leak, the detector triggers the shutoff valve to automatically stop the water flow within 7 seconds.
Immune to lags, freezing, and viruses
Hub BP Jeweller runs on OS Malevich, a real-time operating system. It does not lag or freeze, instantly loading and executing all actions. It takes less than a second from tapping on a smartphone to the lights switching on. A scenario is executed within the same rapid timeframe.

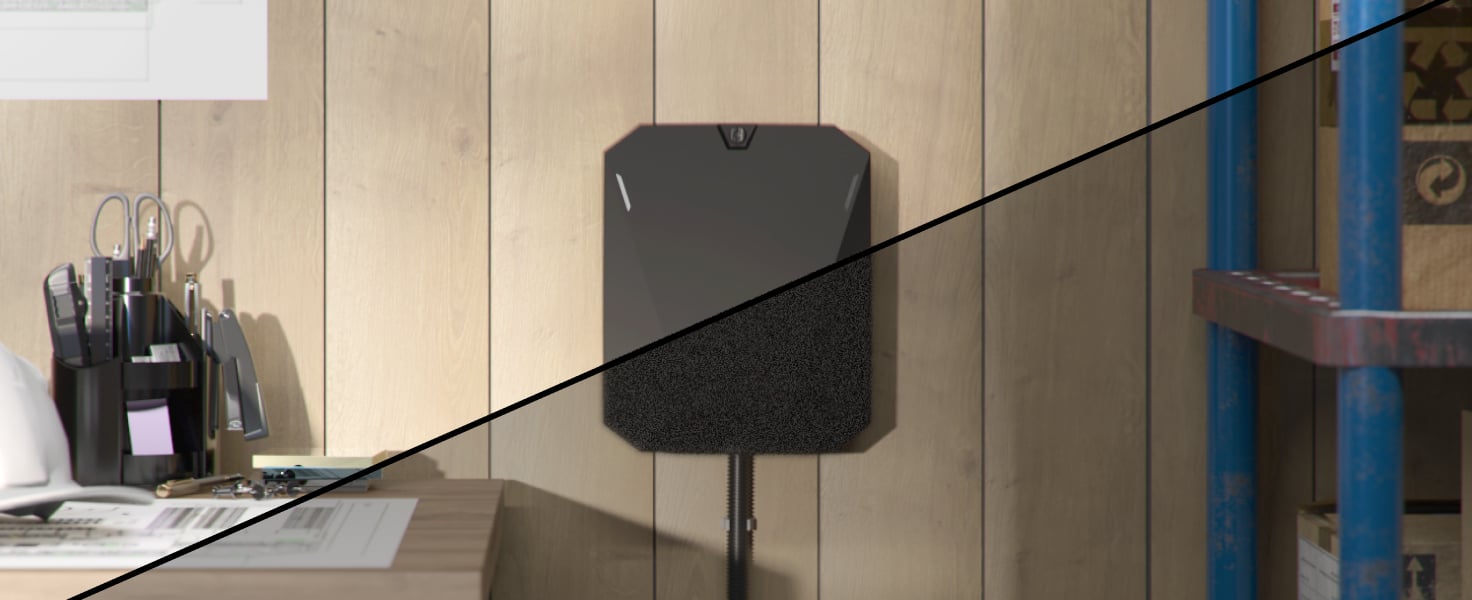

Sabotage resistance
Effortless installation and setup
Ajax has streamlined every installation step, making it simpler than ever — from system design to maintenance and customer support. Installing the hub doesn’t require disassembling its enclosure, and adding the device is quick and easy with Ajax apps. Both internal and external batteries are integrated via convenient connectors. All necessary fasteners are included, and adjustments to settings can be made without the need to visit the facility via the apps.

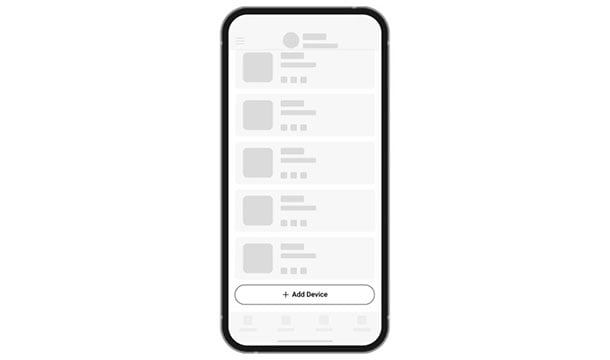

Adding Hub BP Jeweller to the system is easy by сonnecting the hub to the power source and scanning a QR code. Once added, the device receives a default name and settings suitable for most cases.
Connecting to the power source
Insert a SIM card
Pairing by scanning the QR code
Versatile default settings

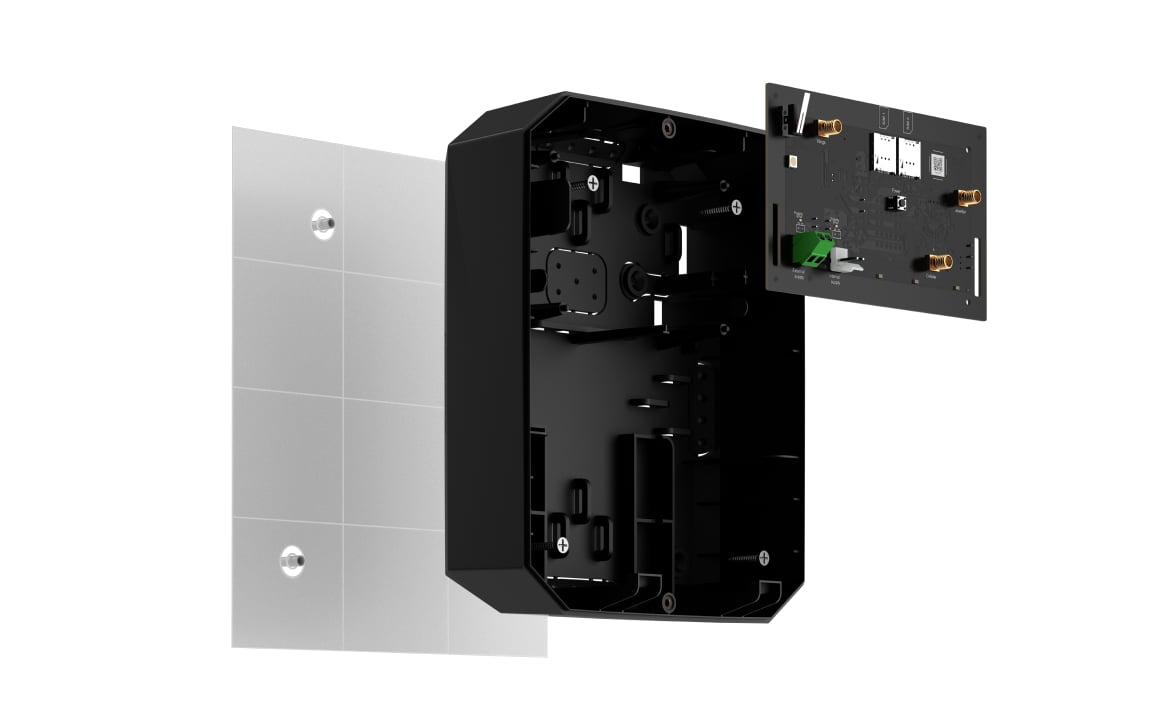

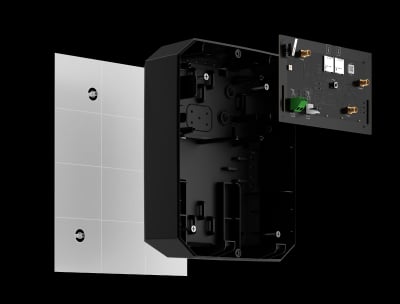

Using the SmartBracket mounting panel, an installer can effortlessly mount the device on the wall without disassembling the enclosure. Holding screws fix the hub on the SmartBracket mounting panel.
No need to disassemble the enclosure
All necessary fasteners are included in the installation kit
Holding screws to fix Hub BP Jeweller on SmartBracket

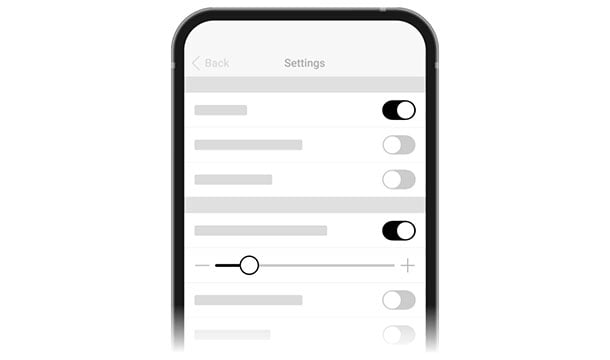

Configuring Hub BP Jeweller and added devices is possible via mobile and desktop apps. It can always be reconfigured remotely without the need for on-site visits.
Configuring and testing Hub BP Jeweller on-site or remotely
Mobile and desktop apps
Accounts for companies and installers
The Ajax security system sends alarms to PRO Desktop and the central monitoring station (CMS) using proprietary protocols.
Addressability of each device
Instant notifications in Ajax apps
Alarm and event monitoring in PRO Desktop for security companies
In an open space.
With default settings (photo resolution is 320 × 240 px).
Applicable for systems with 10 connected devices.
Depends on settings.
Depends on the hub model.
