DoorProtect
Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.
-
![]()
Authentication to prevent forgery -
![]()
Jamming detection and communication channels encryption -
![]()
Tampering alarm
-
Security Grade
-
![]()
Compliance
Operates up to 7 years without battery replacement
External contact is available for connecting third-party detectors
Includes magnets of various sizes for installation on narrow frames and door frames
Principle of operation

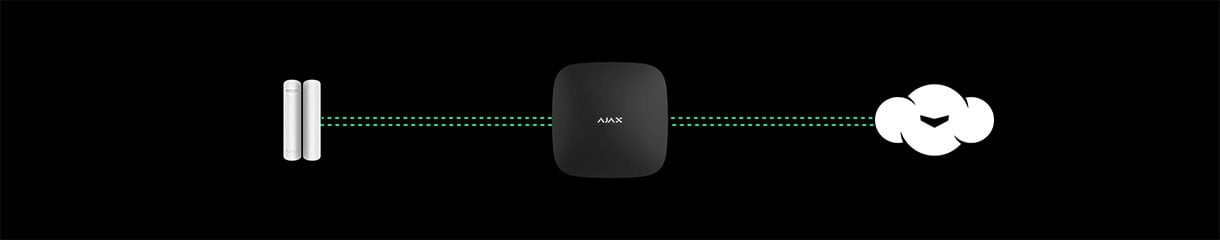

The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.

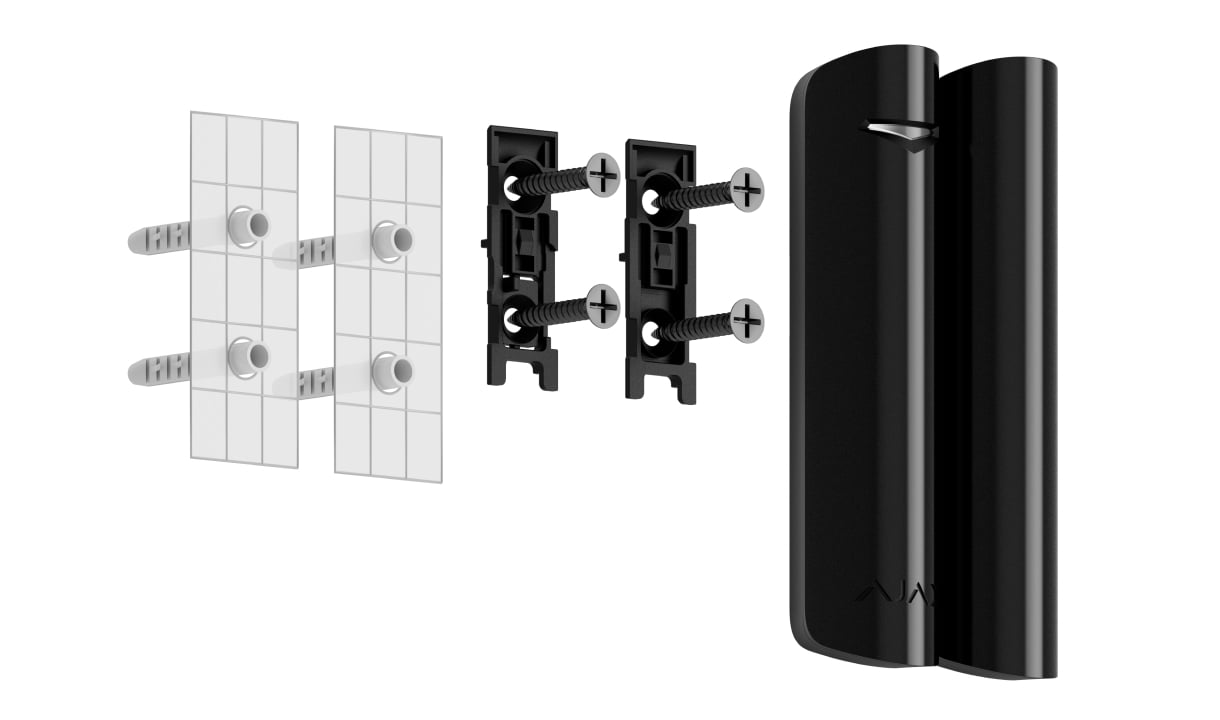

Installation and set up

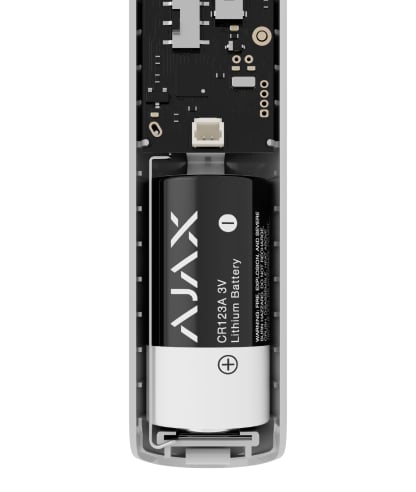

Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
Classification
Point magnetic and contact radio channel security detector
Type of detector
Wireless
Installation method
Indoors
Compatibility
Sensing element
Reed switch
Alarm signal delivery time
0.15 s
Activation threshold
Small magnet — 1 cm
Big magnet — 2 cm
Big magnet — 2 cm
Power supply
Battery: CR123A battery, 3 V
Battery life
Sensor resource
2,000,000 openings
Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Learn more about Jeweller
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Learn more about Jeweller
Temperature sensor
Available
Operating temperature range
From -10°С to +40°С
Permissible humidity
Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Jamming detection
Tamper-resistant
Remote setting and testing
+
Dimensions
Diameter: 20 mm
Height: 90 mm
Height: 90 mm
Weight
29 g
Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set
DoorProtect opening detector
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide
