DIN Holder

DIN Holder

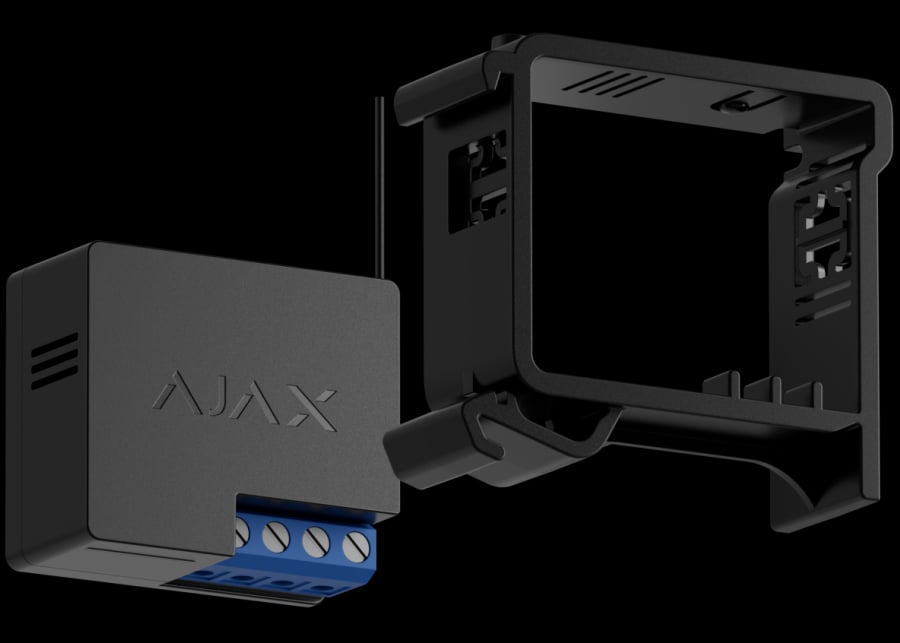

Bracket to fix Relay or WallSwitch on a DIN rail

Where to buy

Thought out to detail

DIN Holder helps securely mount Relay or WallSwitch on a DIN rail. It can be installed in a junction box, server cabinet, or electrical panel. A sticker set is included to mark which device or circuit the relay controls.

Electrical panel
Electrical panel
Server cabinet
Electrical panel

Convenient size

DIN Holder with the installed relay has the same width as a single-phase circuit breaker.

Convenient size

Manual control

DIN Holder casing has a built-in button to control the power supply manually: press it to change the state of the contacts to the opposite in bistable mode, and change the state for the time specified in the settings in the pulse mode.

Manual control

No overheating

Other circuit breakers next to DIN Holder will not cause problems.Openings in the casing provide passive ventilation, and the relay is ready to operate in temperatures up to +60°C.

No overheating
Tool-less installation

Tool-less installation

DIN Holder design follows the shape of the relay and securely fixes it on a standard 35 mm DIN rail. Relay or WallSwitch is fitted in the holder casing in one motion. The holder is mounted on a rail using side hinges, and no tools are required.

Relay

Dry contact relay to control 12-24 V⎓power supply remotely

Learn more
Relay
WallSwitch
Relay

WallSwitch

Power relay to control 110/230 V~ power supply remotely

Learn more

Technical information

DIN Holder

Professional installation

Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.

Where to buy
Professional installation

Relay or WallSwitch DIN Holder

Holder for fixing Relay or WallSwitch — power management devices on a DIN rail. The DIN Holder is an important part that allows you to securely mount a Relay or WallSwitch on a DIN rail. Installation is possible, for example, in a switchboard, mounting box or server cabinet.

Power Management Holder Specifications

The holder for fixing the Relay or WallSwitch DIN Holder is made of durable black polycarbonate, weighing 9 grams. The holder size is 52 × 41 × 18 mm. The holder with the installed relay has the same width as a single-phase circuit breaker. The holder can be installed in places with humidity up to 75%. Included with the holder is a set of stickers that will help identify which circuit or device the relay controls and brief instructions.

Installing DIN Holder for WallSwitch and Relay

The Relay and WallSwitch Power Management Device Holder is mounted on a rail using side hinges and does not require the use of third-party tools. The holder housing securely fixes the devices on a 35 mm DIN rail and follows the shape of the relay. Neighboring circuit breakers will also not cause inconvenience. The hole system of the holder for Relay and WallSwitch power management devices provides passive ventilation of the case - the relay will operate at air temperatures up to +60°C.
