Curtain Outdoor Jeweller
Wireless dual-technology curtain motion detector for outdoor and indoor use
The first line of defense
Curtain Outdoor Jeweller is a motion detector for covering the perimeter of a site with exceptional accuracy and a near-zero chance of false alarms. Featuring a unique optical system, the device looks over narrow sectors of up to 39 ft long. Dual motion detection technology engaging two PIR sensors and one Ka-band microwave sensor allows filtering out false alarms caused by thermal noise, animals, or plants. The detection range and pet immunity mode are configured via a slider on the detector’s enclosure, and sensitivity is configured in Ajax apps to meet the specific needs of the site. Pre-installed batteries ensure stable performance for up to three years.
Vertical viewing angle1:
Adjustable motion detection range

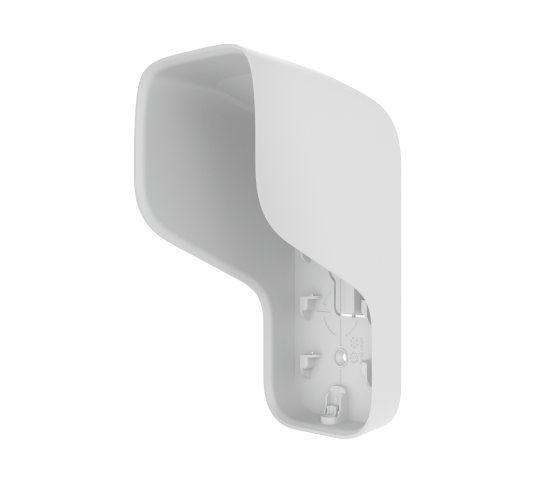

Hood
to protect masking sensors from rain and snow

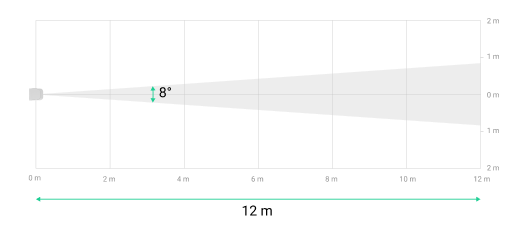

Horizontal viewing angle: 8°
Dual motion detection technology
to trigger the device only when both types of sensors detect motion
Software algorithm to distinguish human movement from pet and other non-human activities
Temperature compensation
for effective detection in heat and cold
Can be fixed to a third-party mount
Pet immunity
as an optional detection mode

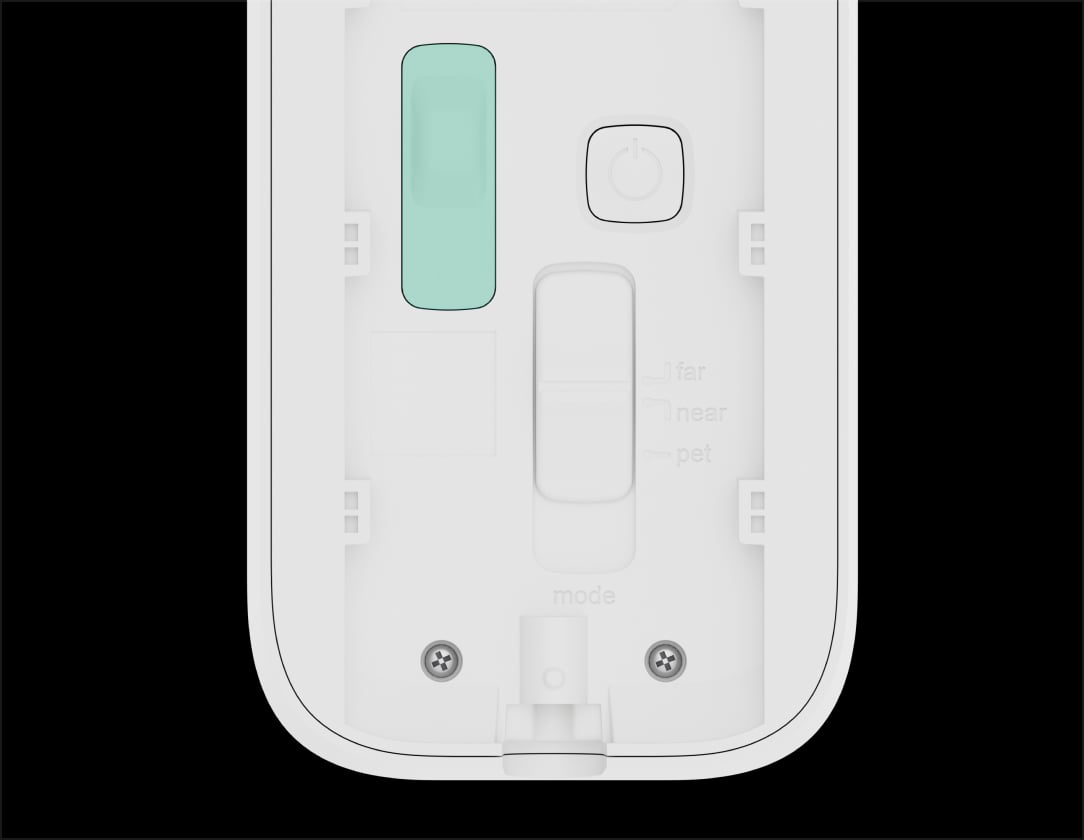

Tamper

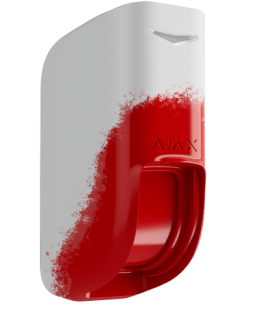

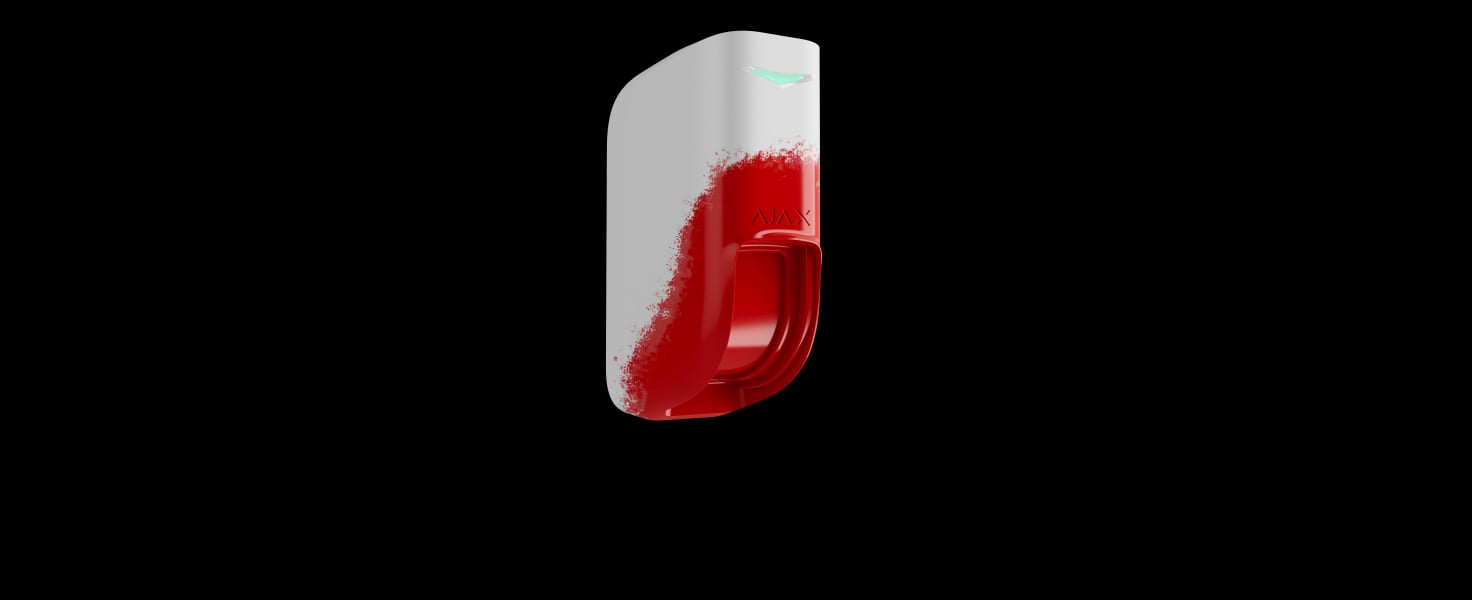

Anti-masking system

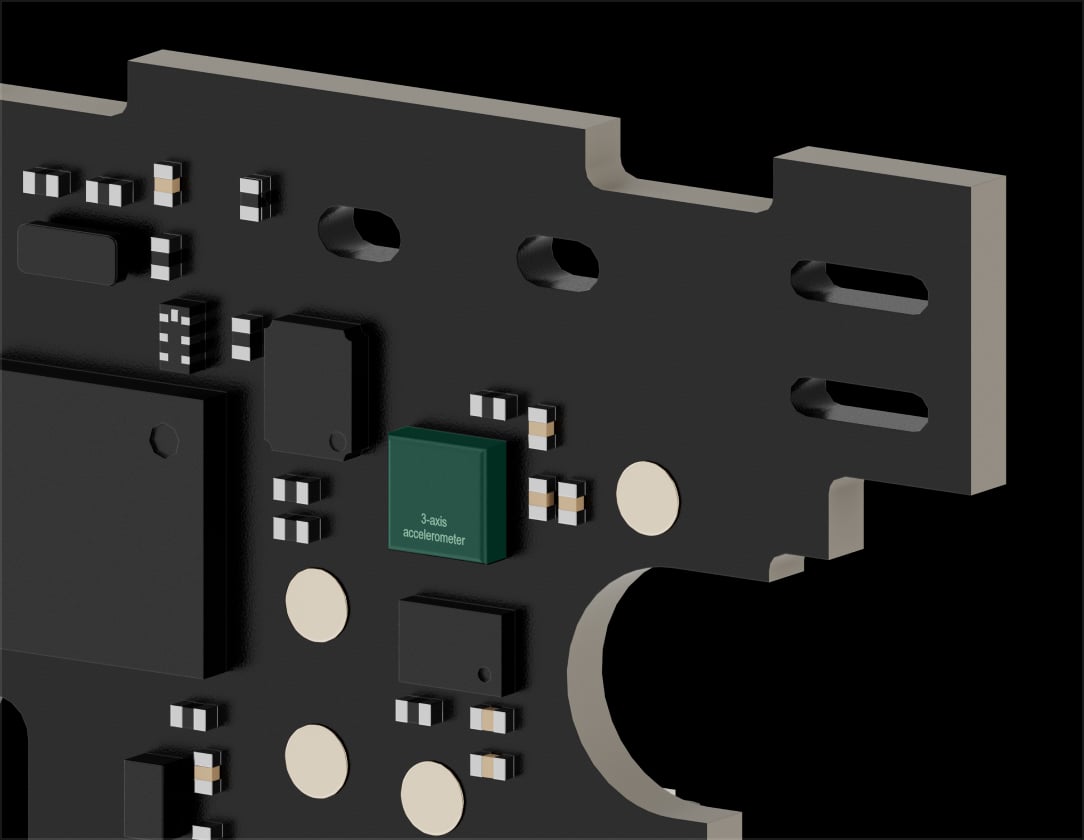

Accelerometer
Up to 3 years
of operation on pre-installed batteries
Enclosure protection
Over-the-air firmware updates
Up to 5,500 ft
communication range with an Ajax hub or range extender2
Jeweller and Wings radio communication
Power adjustment
Informative push notifications
Critical
Ajax
Warehouse: Motion detected, Curtain Outdoor Jeweller in Storage area
Ajax
Office: Lid is closed, Curtain Outdoor Jeweller in Hall
Remote control and configuration

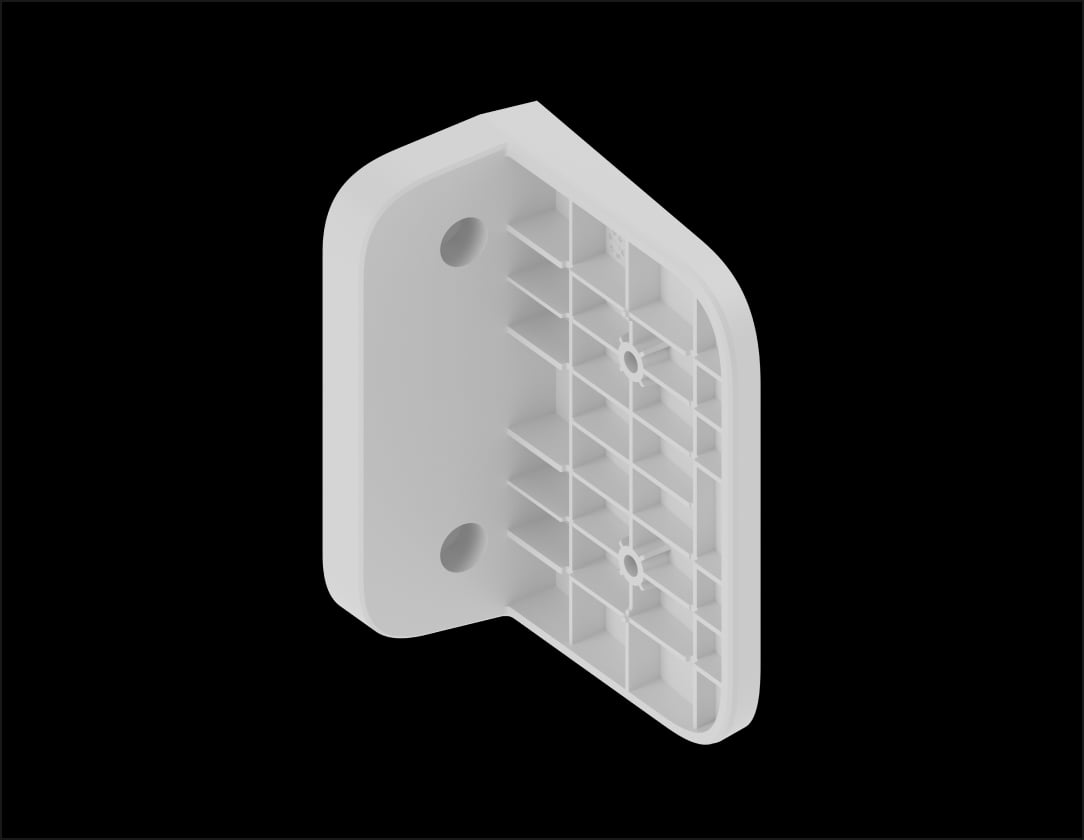

Optional angle mount
to install the detector sideways

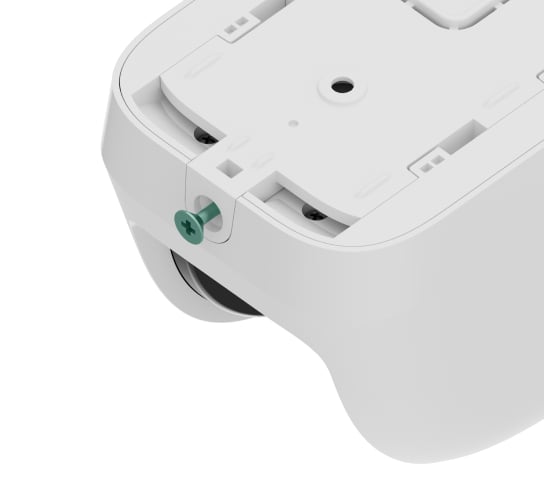

Holding screw
In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Reliable perimeter protection

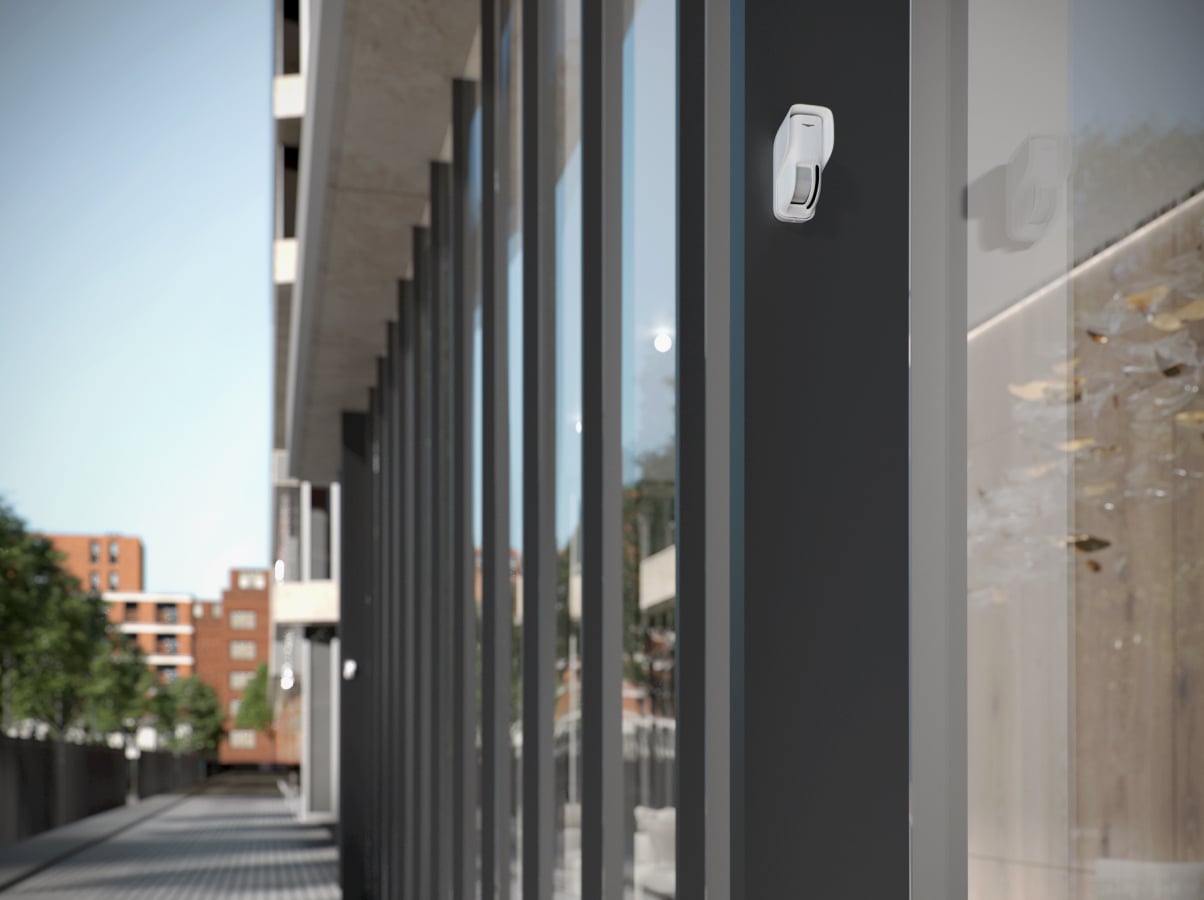

Office

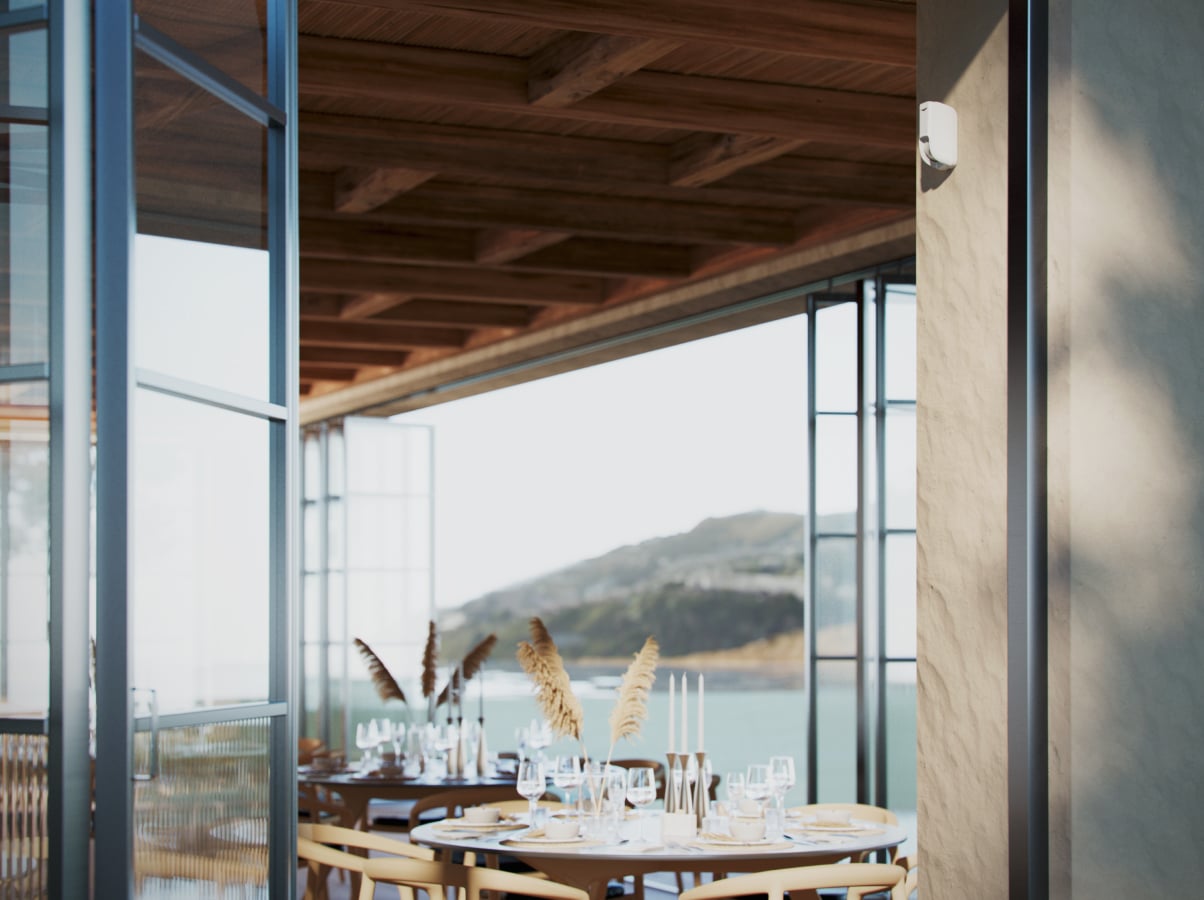

Restaurant

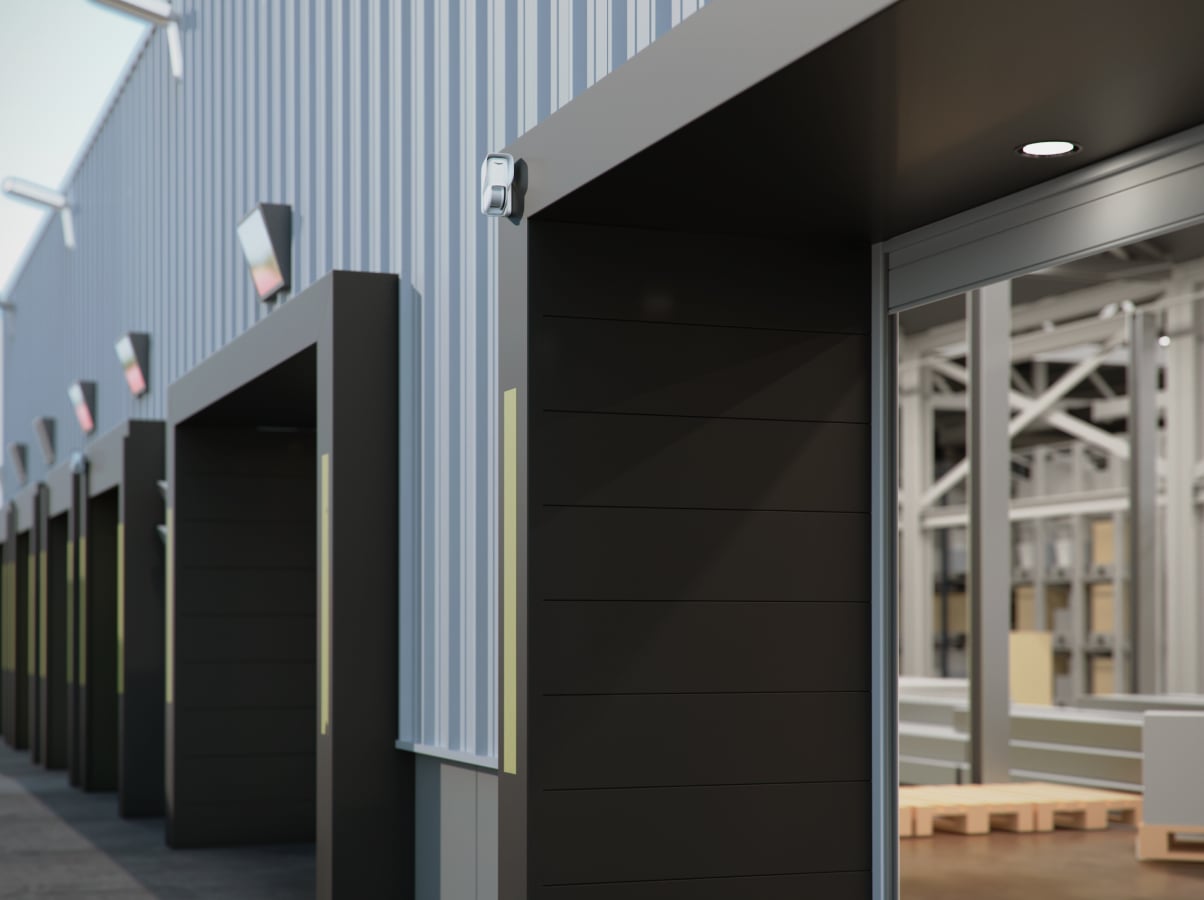

Warehouse

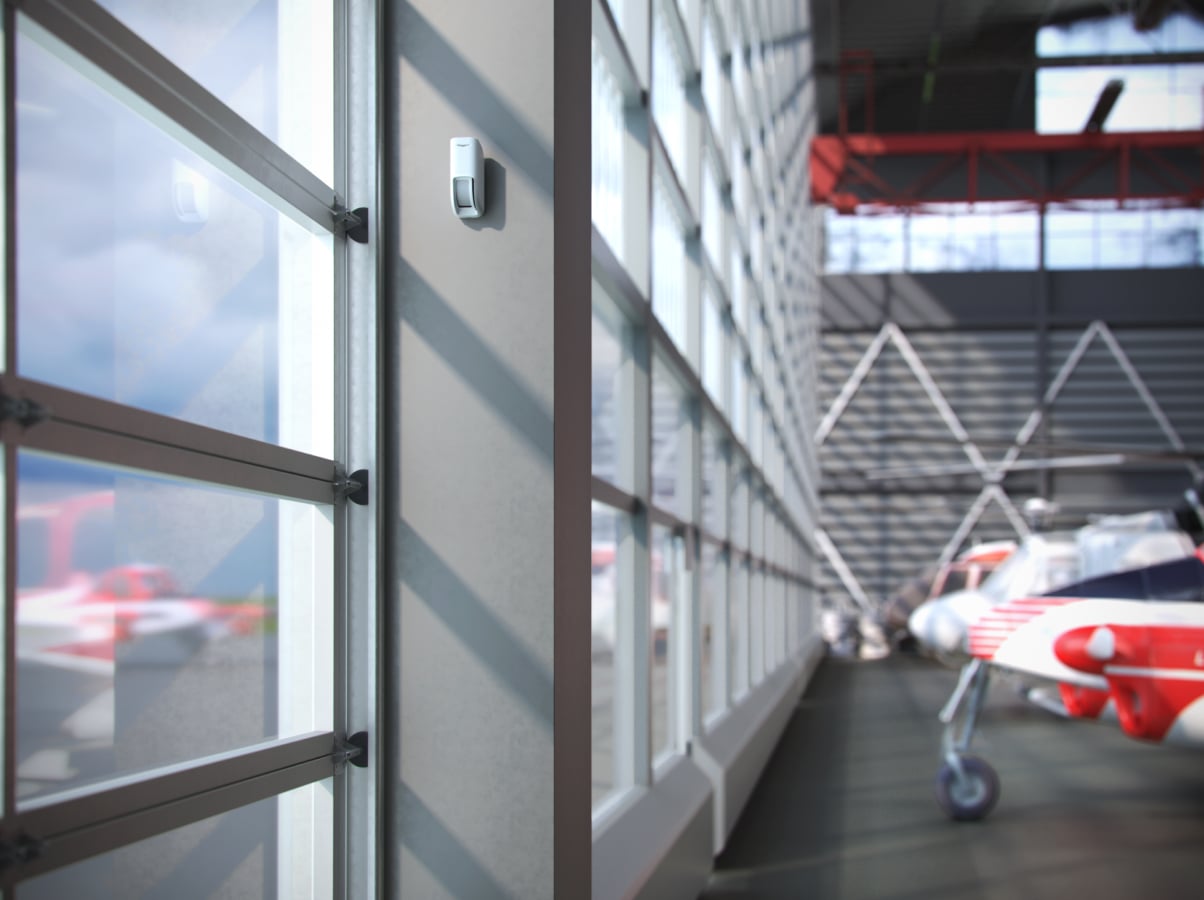

Hangar
House

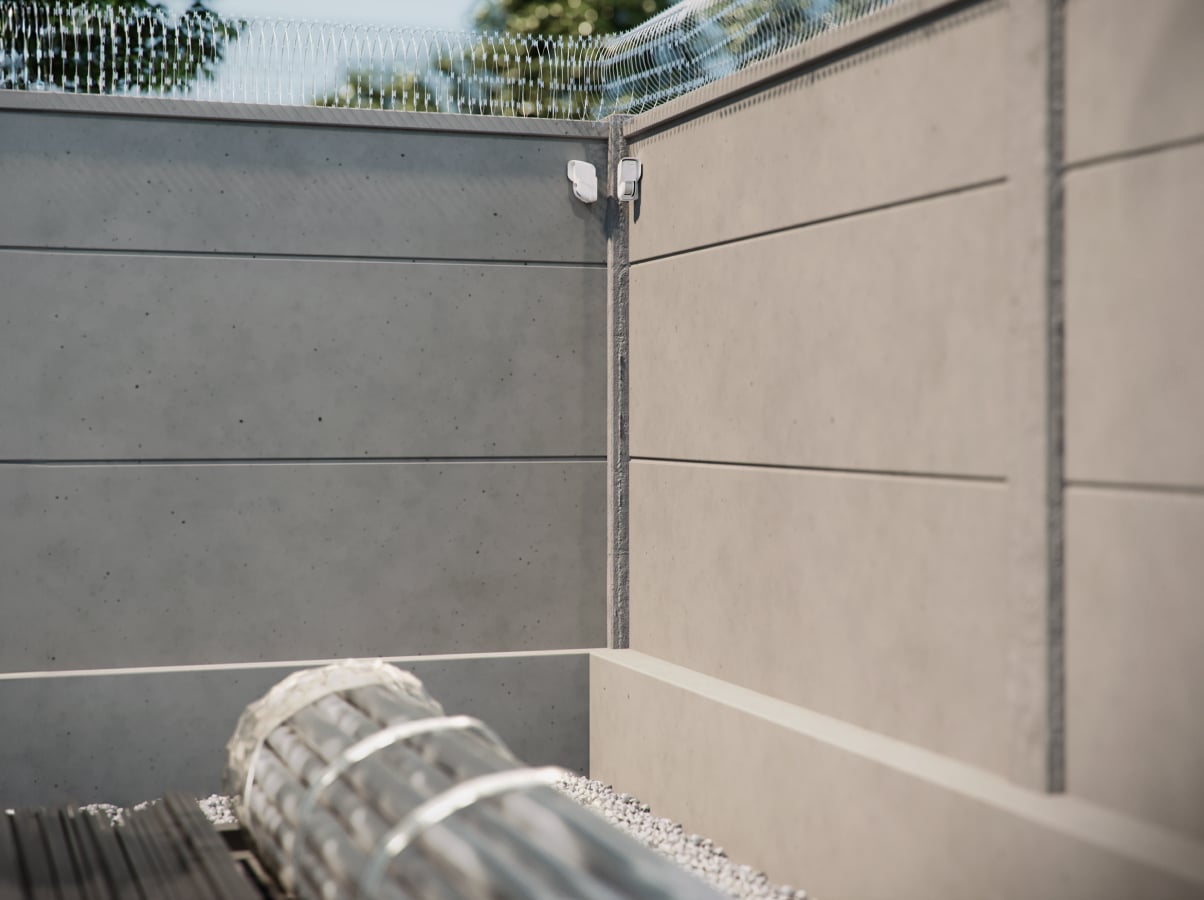

Manufacturing
Two operating modes
Curtain Outdoor Jeweller operates in two modes: regular and with pet immunity on. In the regular mode, any motion within the covered area triggers an alarm. The pet immunity mode is designed to ignore the movement of animals up to 3.28 ft tall and minimize false alarms.

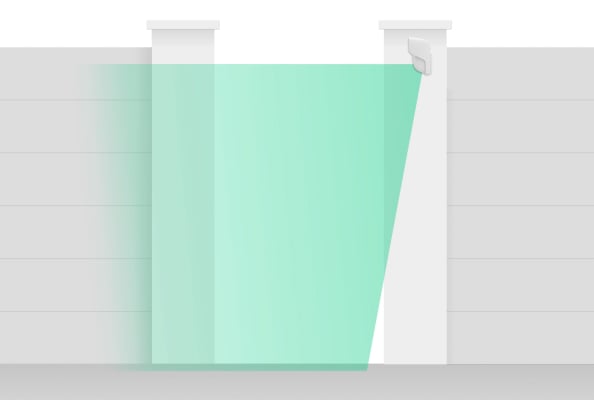

Without pet immunity

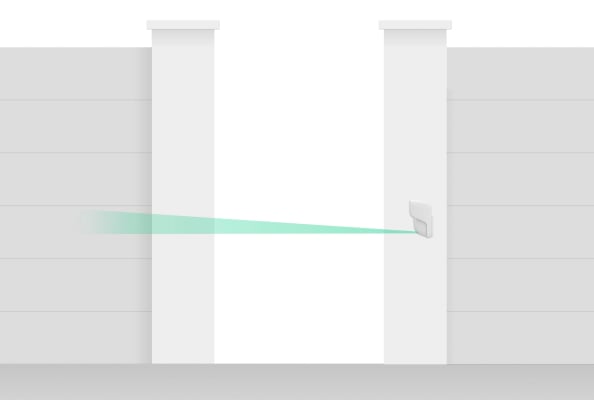

With pet immunity

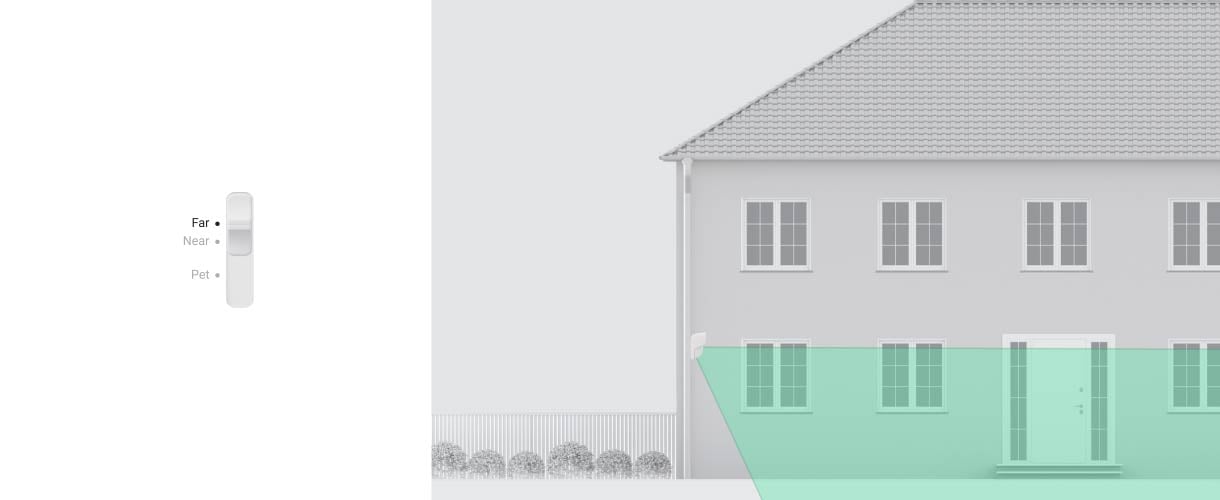

Facility-specific motion detection
The device offers up to 39 ft of detection range, which, however, can be adjusted to fit the peculiarities of a site. For example, the range can be set for the detector to cover doors and windows yet to ignore high-traffic zones like a walkway. Detection sensitivity levels are also essential to limit false patrol dispatches. Set the sensitivity to low in areas prone to false alarms, medium for most sites, and high in obstacle-free zones where immediate threat detection is crucial.
Flawless hardware

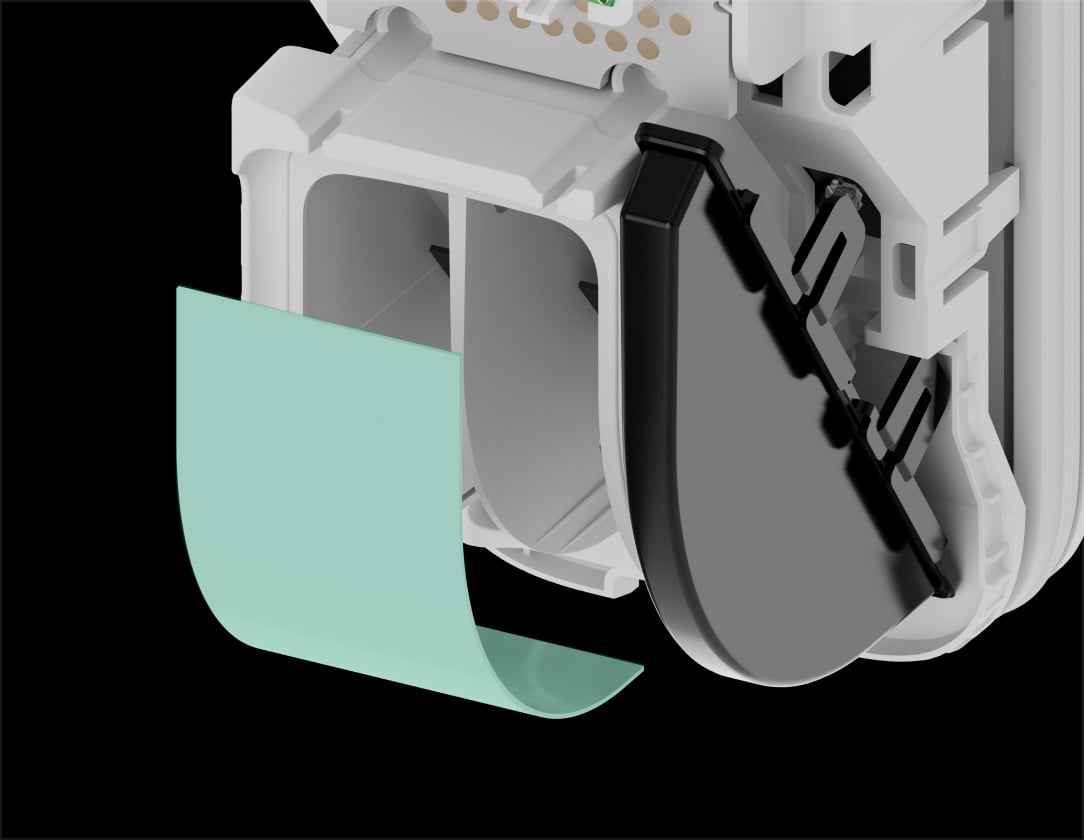

Fresnel lens
Two PIR sensors
K-band microwave sensor

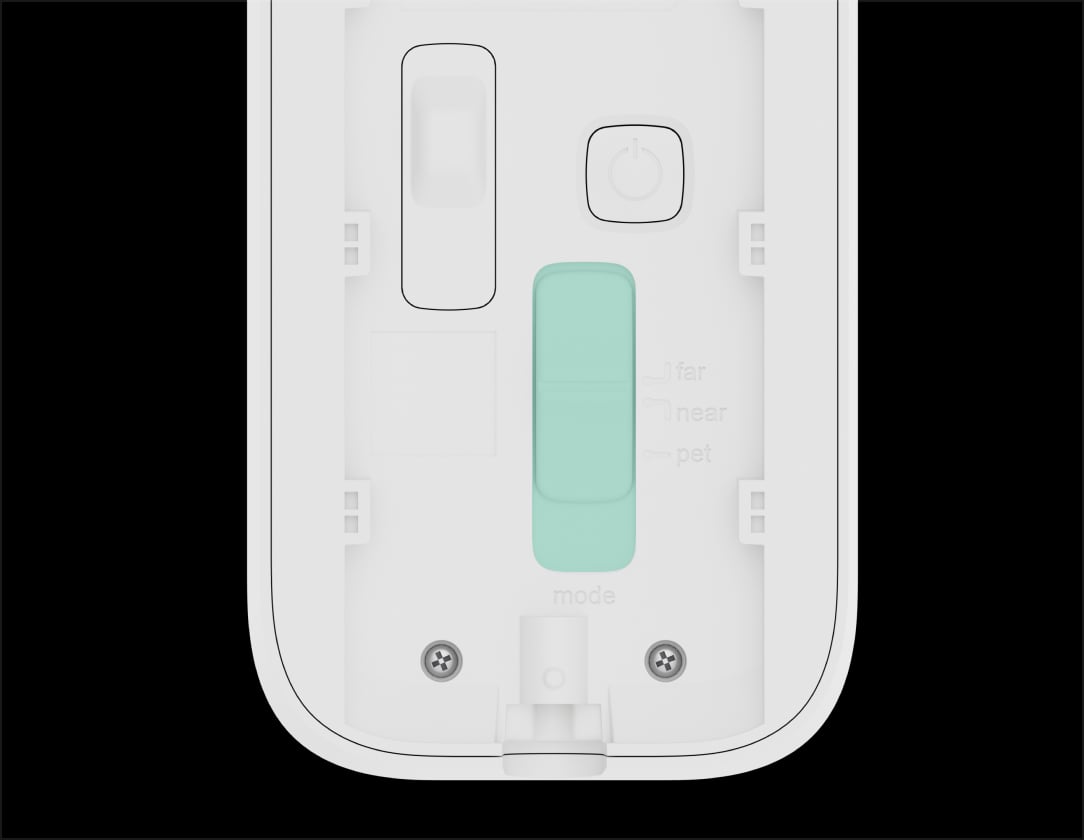

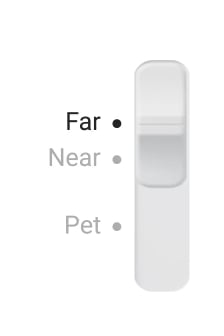

Slider to change operating mode and detection range

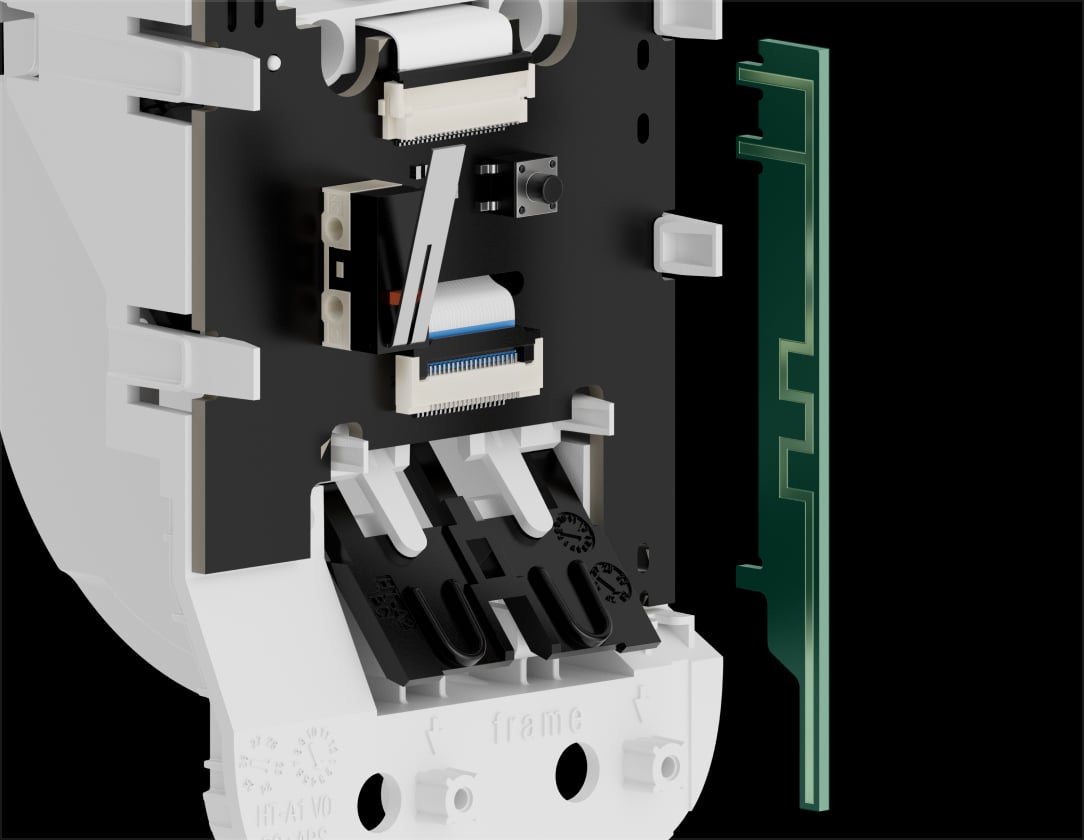

Jeweller and Wings antennas

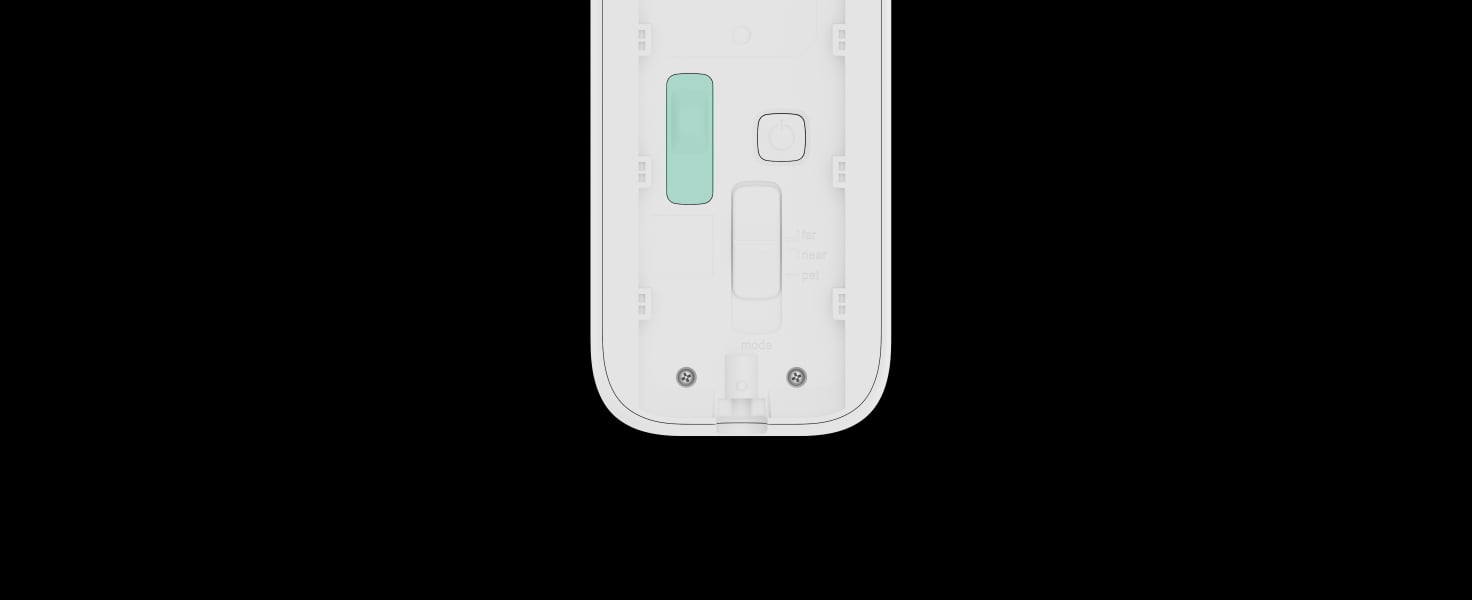

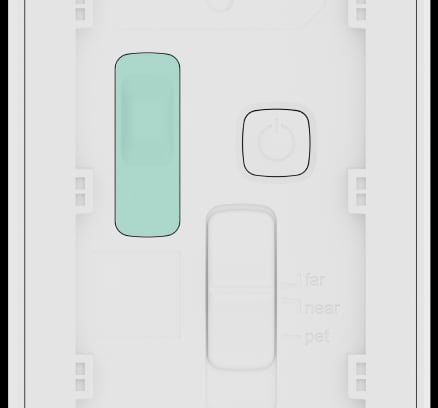

Tamper
Hood

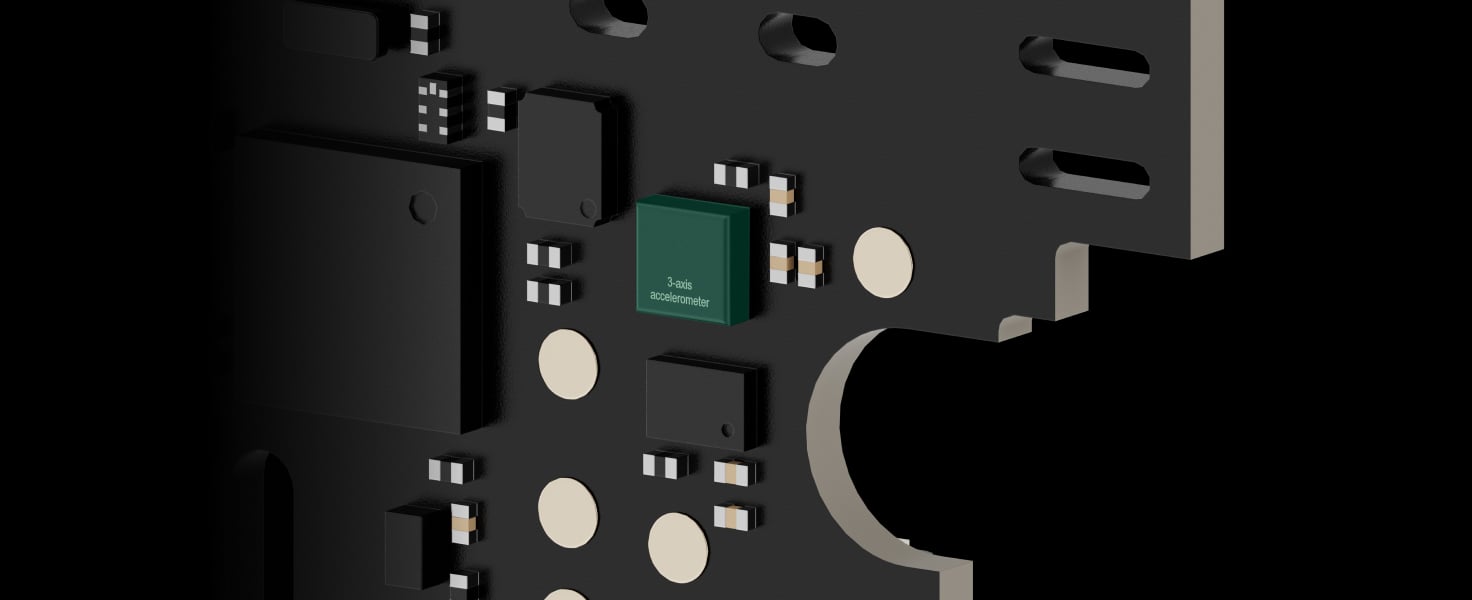

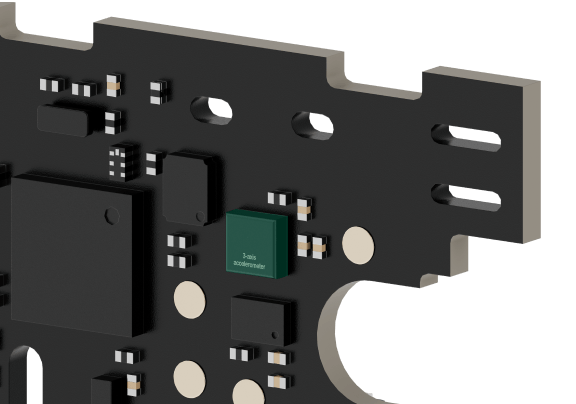

Accelerometer

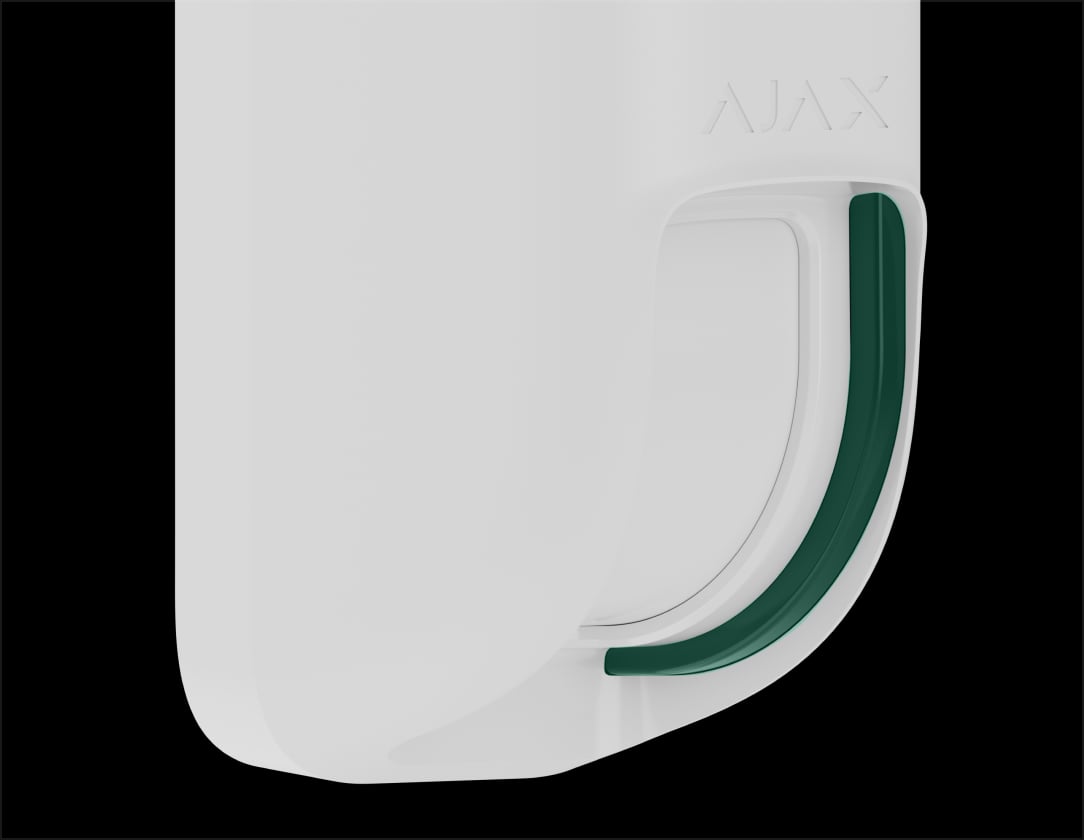

Masking sensors

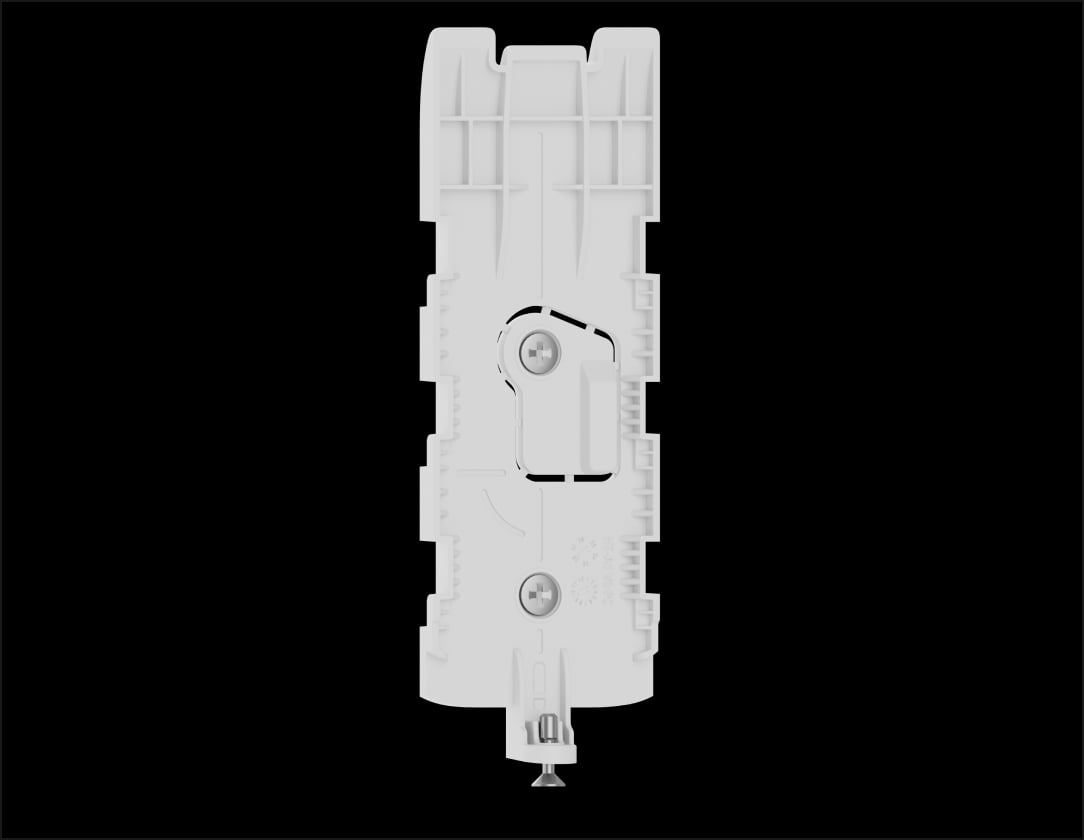

SmartBracket mounting panel
Holding screw
Angle mount
Keep false alarms at bay

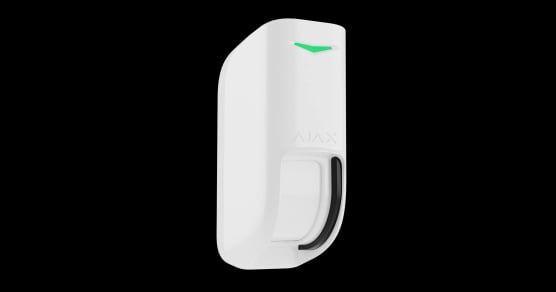

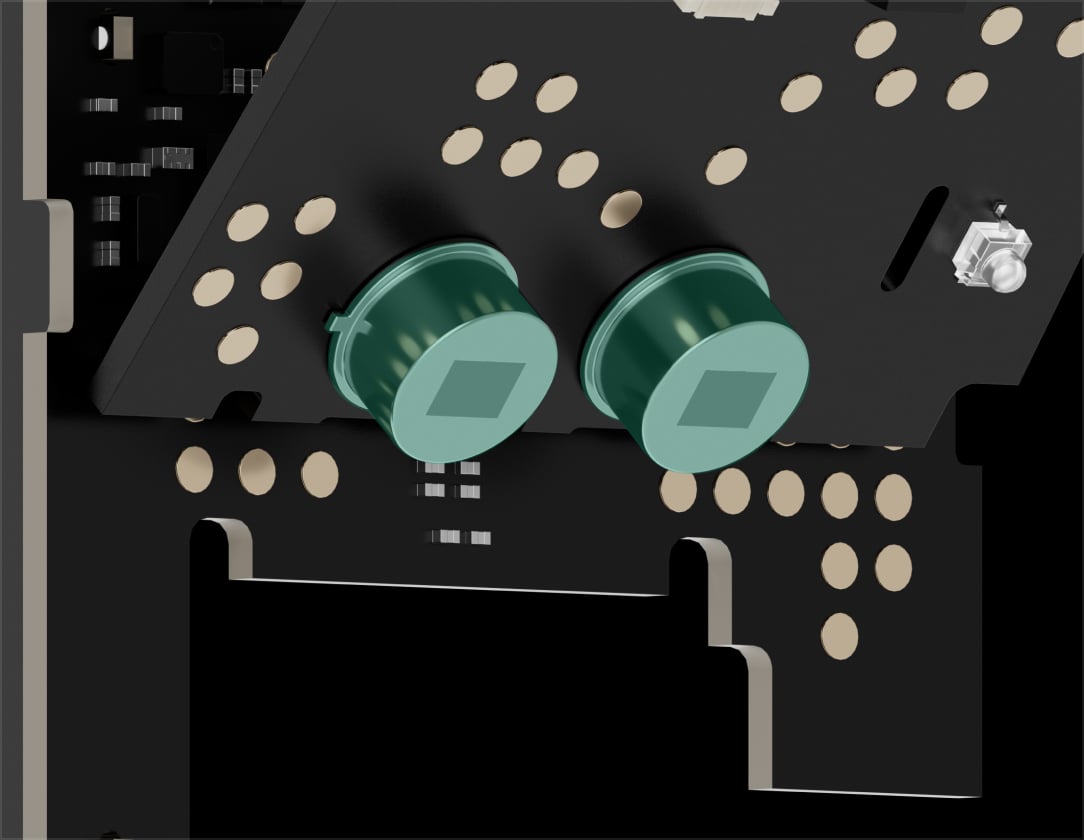

Two PIR sensors
Curtain Outdoor Jeweller has two PIR sensors to ensure accurate motion detection. The detector does not respond to a movement if only one sensor is triggered. When both sensors detect motion, proprietary digital algorithms come into play. In a fraction of a second, they perform a three-step signal analysis, filter out natural obstacles or animals, and decide whether an alarm should be raised.

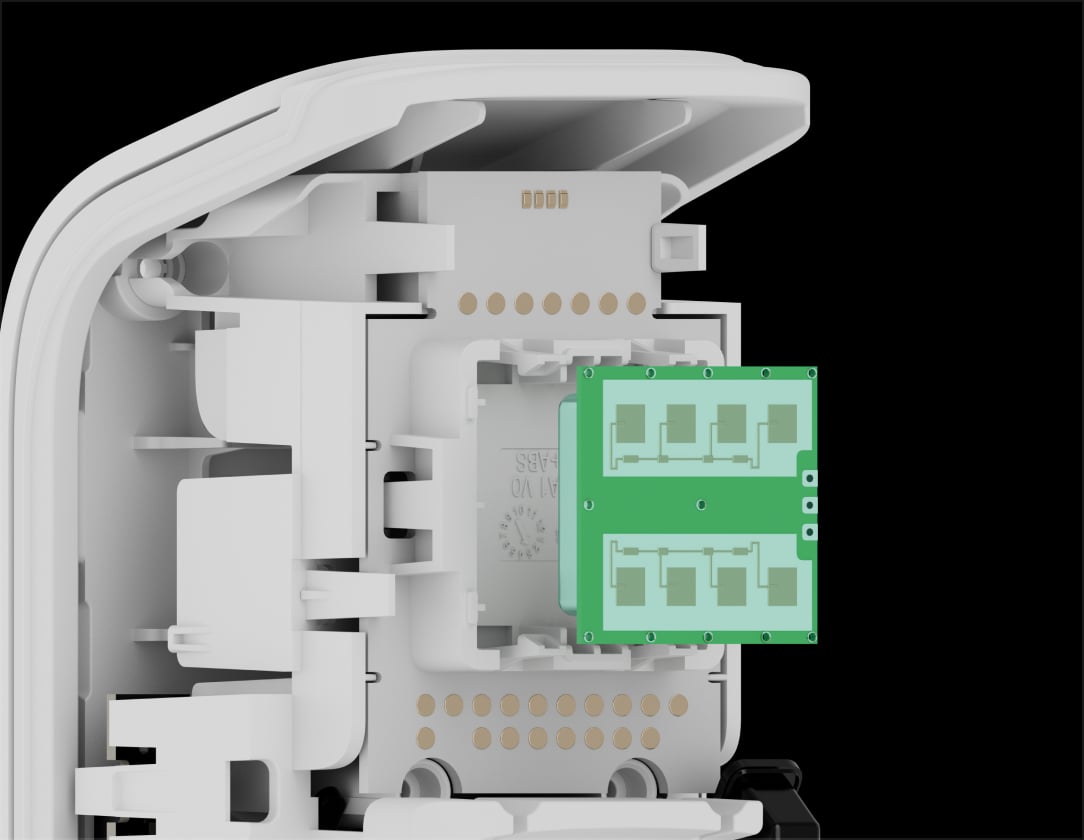

K-band microwave sensor
The K-band microwave sensor verifies alarms triggered by PIR sensors. It performs a radio-wave scan of an area to minimize false alarms triggered by thermal interferences. Unlike traditional X-band sensors, the Ka-band sensor offers superior precision and energy efficiency, with significantly fewer false alarms and hardly noticeable impact on the battery life. Additionally, the sensor is completely safe and poses no threat to health.
K-band
X-band

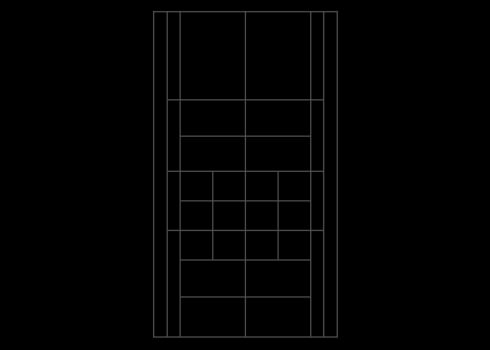

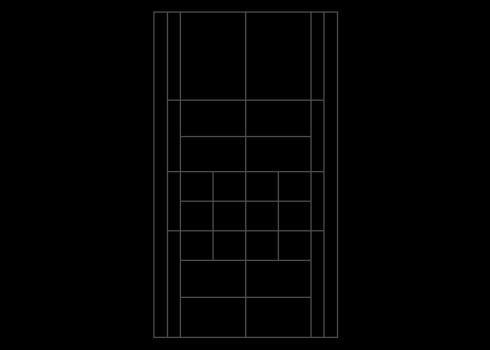

Thermal interferences filter
When the system is in armed mode, the detector constantly analyzes the thermal diagram from the PIR sensors, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The SmartDetect software algorithm identifies false alarm markers instantly and with high accuracy. As a result, the device accurately responds to human movement without false alarms.
False alarm
Real alarm
False alarm
Real alarm
False alarm
Real alarm
Temperature compensation
Temperature compensation is a software mechanism that ensures thermal diagram contrast even if the ambient temperature is close to the temperature of a human body. With each ambient temperature measurement, the detector corrects the PIR sensors data according to the coefficient table stored in its memory. The device is effective throughout the entire operating temperature range.

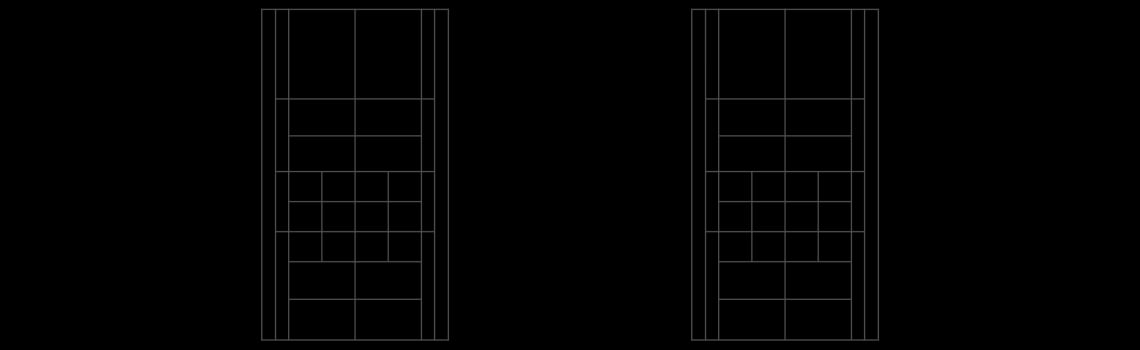

Sensitivity level
Curtain Outdoor Jeweller has in-app sensitivity settings. Low sensitivity makes the detector less likely to respond to interferences, while high sensitivity ensures an alarm is raised in case of any movement in the detection zone. Set up the needed sensitivity level to avoid costly patrol dispatches to false alarms.

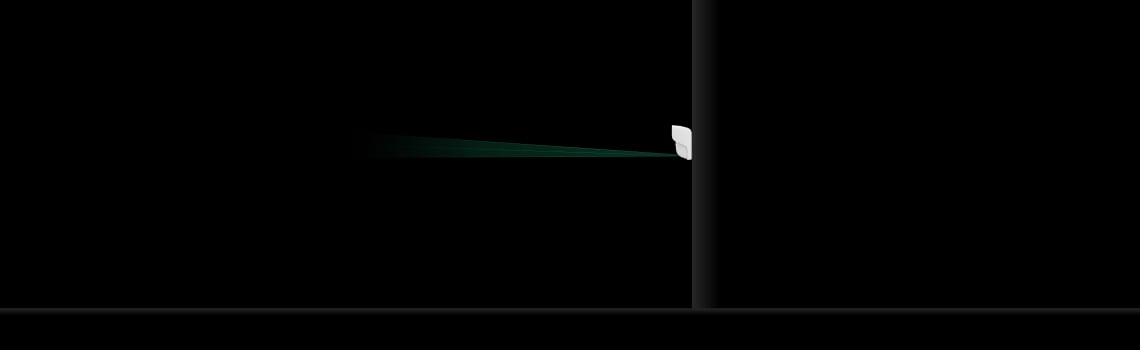

Professional installation
With the correct installation, the detector performs with high precision. The device should be perpendicular to the ground level, while the potential path of an intruder should be perpendicular to the axis of the detector’s lens. When configured with the correct operating mode, sensitivity, and detection range, Curtain Outdoor Jeweller instantly responds to real threats and generates barely any false alarms.
Jeweller | Wings
Unique wireless technologies
Curtain Outdoor Jeweller uses Jeweller and Wings proprietary radio protocols for reliable communication.
Up to 5,550 ft of radio communication with a hub or range extender2
Encrypted two-way radio communication
Notifications of jamming and connection loss
Over-the-air firmware updates
Scaled and comprehensive
ReX 2 Jeweller range extender boosts the radio range of all Ajax devices via Jeweller and assures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering multistorey buildings with underground parking and basements.
Up to 5 range extenders within one system
Ethernet as an alternative communication channel

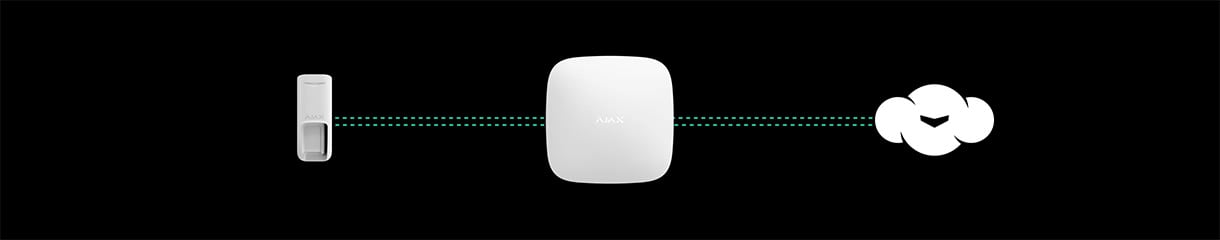

System supervision
All Ajax devices perform automatic self-diagnosis and report their states to a hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for alarm receiving centers (ARCs), security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Automatic device self-diagnosis with status report
Regular polling to display the current device state on apps
Instant maintenance notifications
Sabotage resistance

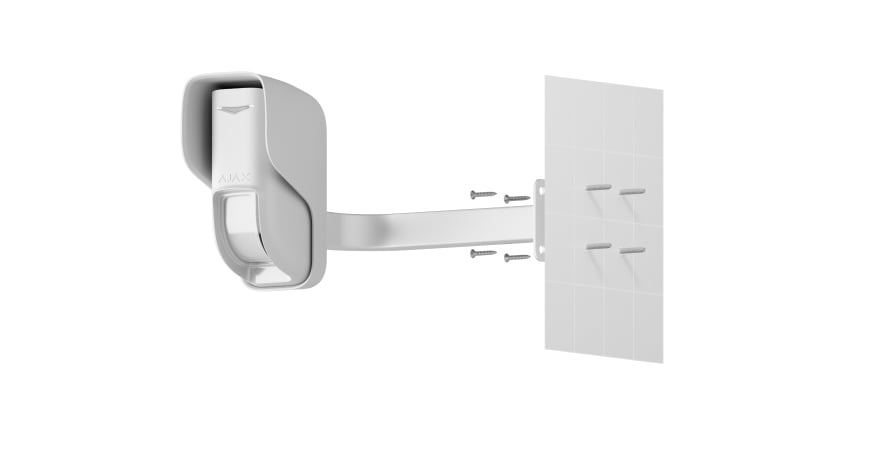

Effortless installation and setup
Curtain Outdoor Jeweller is ready to operate straight out of the box. There are three options for installing the detector: using the SmartBracket mounting panel, an angle mount, or a third-party mount. There is also an option to protect masking sensors from rain and snow with the hood. Ajax apps help quickly make the device a part of the system: simply pair the device with the hub by scanning a QR code. The detector can always be reconfigured remotely without the need for on-site visits.
Pairing with the security system via a QR code
To the SmartBracket mounting panel
To the angle mount

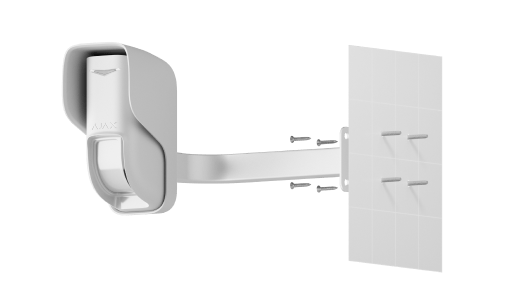

To the third-party mount
Configuring and testing in mobile and desktop apps
PRO Desktop app for macOS and Windows

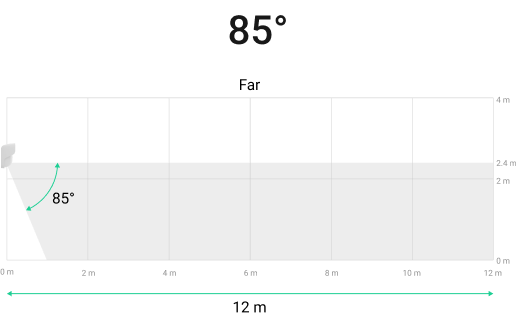

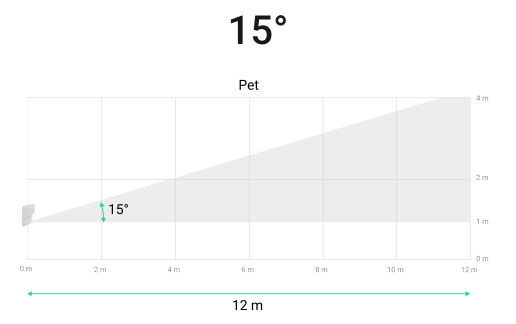

Depends on the installation height. The angle is 85° at 7.87 ft and 15° at 3.28 ft.
In an open space.
