SpaceControl
A key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble.
-
![]()
Authentication to prevent forgery -
![]()
Jamming detection and communication channels encryption -
![]()
Two-way communication
-
Security Grade
-
![]()
Compliance
Calls for help in case of emergency
Activates full or partial alarm modes

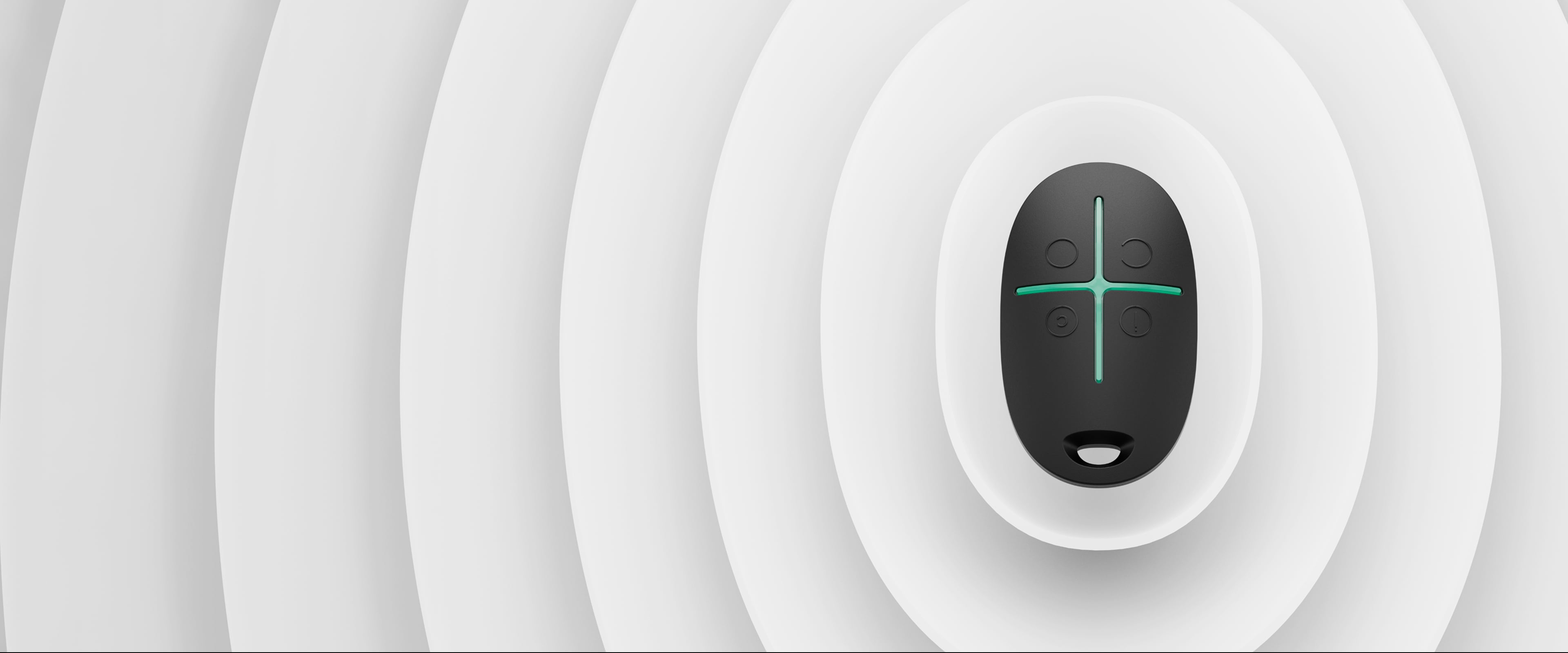

Indicates command execution with color blink
Principle of operation
The device controls the security modes and sends an alarm signal to the Central Monitoring Station by pressing the key fob panic button.
Features
Authentication prevents forgery of the device and false alarm signals.
Connecting and setting up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.
Principle of operation
The device controls the security modes and sends an alarm signal to the Central Monitoring Station by pressing the key fob panic button.
Features
Authentication prevents forgery of the device and false alarm signals.
Connecting and setting up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application.
Tech specs
Classification
Four-button key fob with command delivery indication
Compatibility
Number of buttons
4
False alarm prevention
Yes, long press or double press (firmware version 5.54.1.0 or higher. Manufacture date from March 19, 2020)
Deactivation of the panic button
Available
Power supply
Battery: CR2032 battery, 3 V
Battery life
Jeweller radio technology
Communication range with central unit — up to 1,300 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller
Operating temperature range
From -25°С to +50°С
Permissible humidity
Up to 95%
Dimensions
65 × 37 × 10 mm
Weight
13 g
Warranty
Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set
SpaceControl keyfob
CR2032 battery (pre-installed)
User's guide
CR2032 battery (pre-installed)
User's guide
